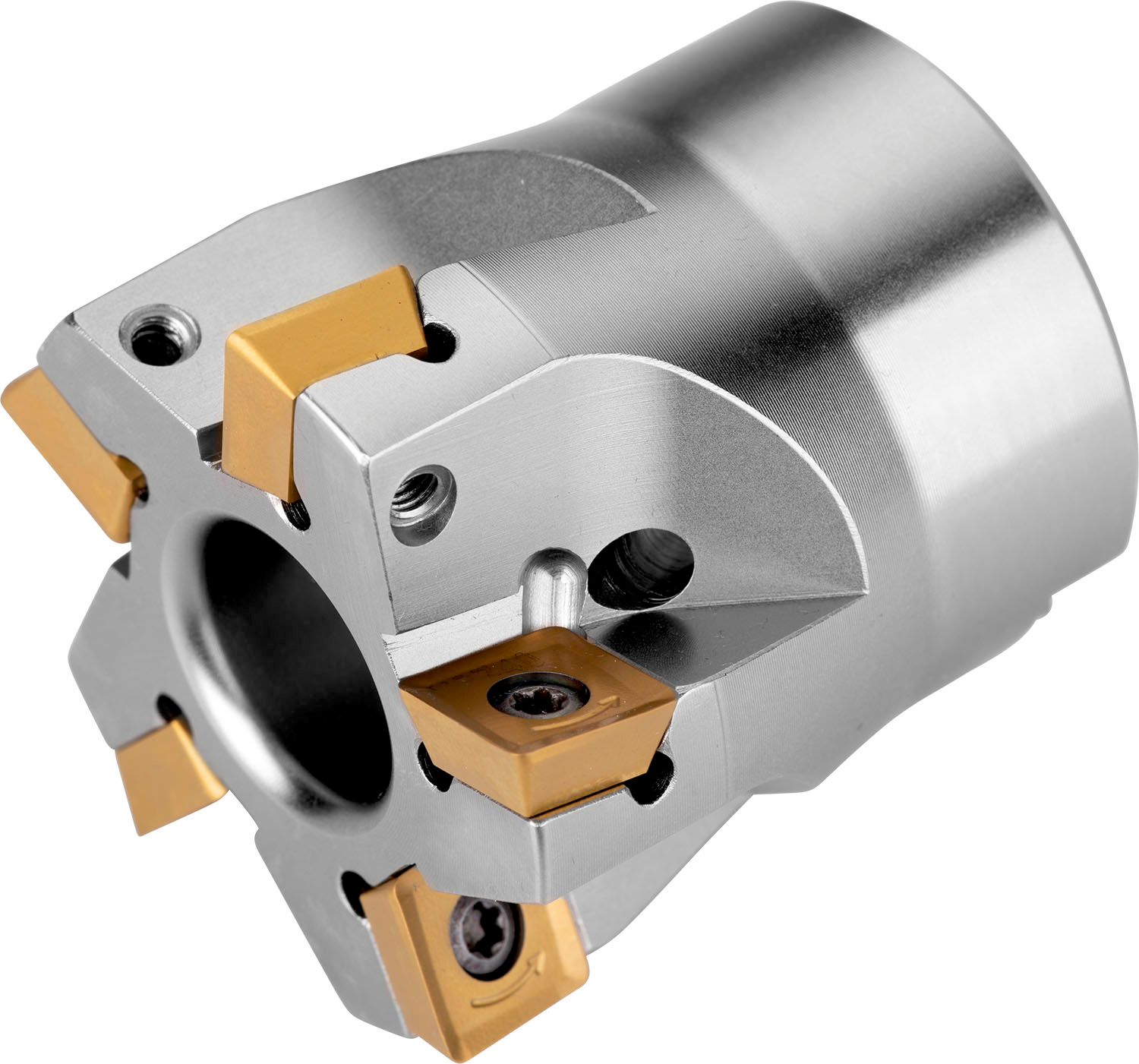

PRAMET 40A05R-S90SO09-C Milling cutters with clamping by screw

Product Code: 40A05R-S90SO09-C

$685.47$623.15 Ex. GST

Product Code: 40A05R-S90SO09-C SKU 40A05R-S90SO09-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 5 of SOMT 09T3.. single-sided inserts, cutting diameter 40mm with 90° approach angle and 16mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 8.0mm

Additional information

Weight 0.6655 kg
barcode
Additional Information

Description: Value
EAN number: 3603602936547
Product number (SAP): 84004684
Ordering code ANSI: 40A05R-S90SO09-C
Gross weight – grams: 285.8
Cutting diameter – millimeter (DC): 40 mm
Connection diameter – millimeter (DCON MS): 16 mm
Counterbore diameter connection bore – millimeter (DCCB): 14 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 8.4 mm
Keyway depth – millimeter (KWD): 5.6 mm
Radial rake angle (GAMF): -9.1
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 5
Rotational speed maximum (RPMX): 16800
Net weight – grams: 285.8
Cutter Design: SSO09
Insert index count (NOI): 5
ISO: 40A05R-S90SO09-C

Brand

PRAMET
