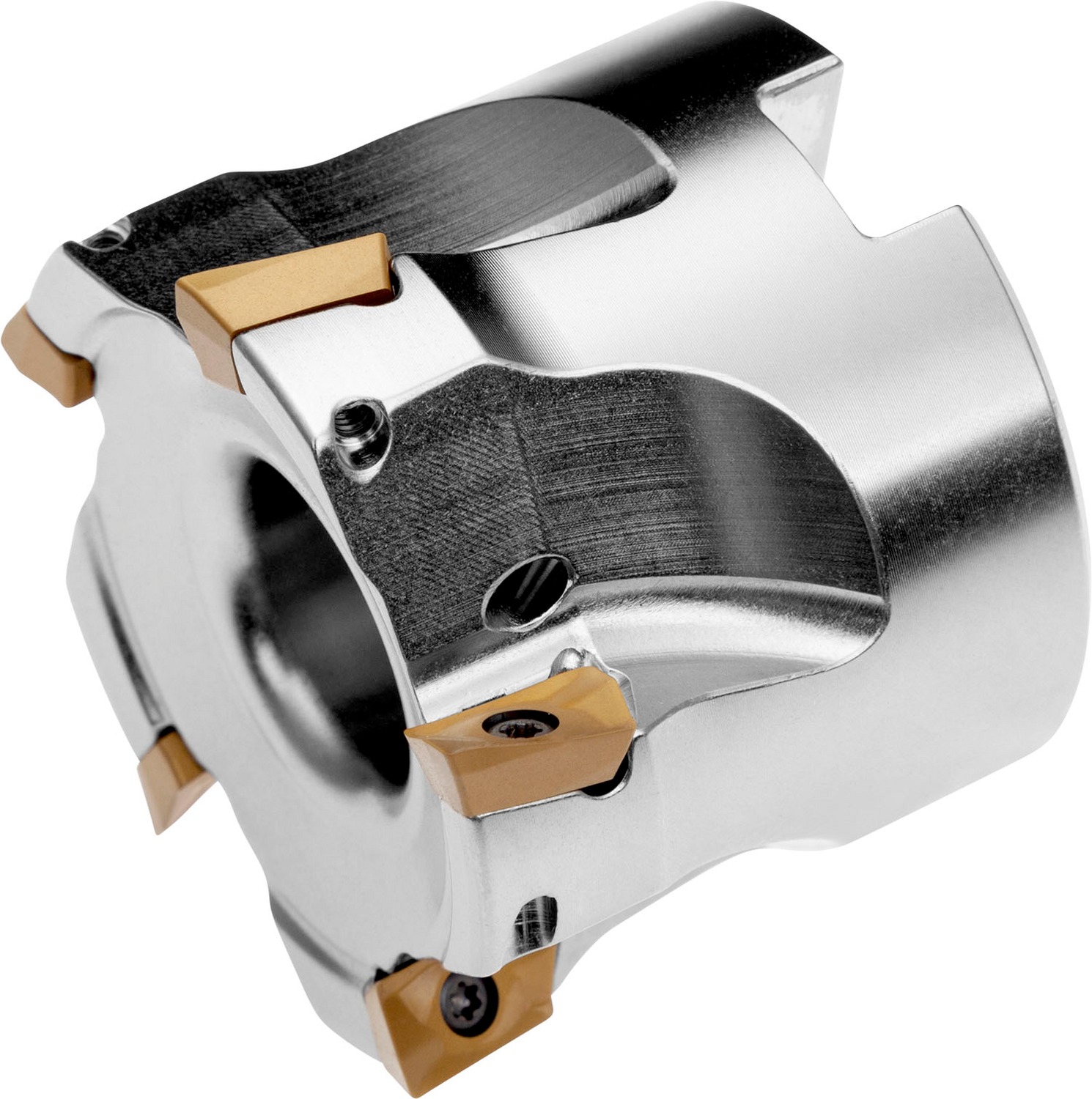

PRAMET 40A06R-S90AD11E-C Milling cutters with clamping by screw

Product Code: 40A06R-S90AD11E-C

$687.73$625.21 Ex. GST

Product Code: 40A06R-S90AD11E-C SKU 40A06R-S90AD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 6 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 40mm with 90° approach angle and 16mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.6677 kg
barcode
Additional Information

Description: Value
EAN number: 3603602955456
Product number (SAP): 86000547
Ordering code ANSI: 40A06R-S90AD11E-C
Product Line: FORCE AD
Gross weight – grams: 303.6
Cutting diameter – millimeter (DC): 40 mm
Connection diameter – millimeter (DCON MS): 16 mm
Counterbore diameter connection bore – millimeter (DCCB): 14 mm
Functional length – millimeter (LF): 40 mm
Connection size code machine side (CZC MS): –
Keyway width – millimeter (KWW): 8.4 mm
Keyway depth – millimeter (KWD): 5.6 mm
Radial rake angle (GAMF): -8.1
Axial rake angle (GAMP): 11
Peripheral effective cutting edge count (ZEFP): 6
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 19100
Net weight – grams: 200
Cutter Design: SAD11E
Insert index count (NOI): 6
ISO: 40A06R-S90AD11E-C

Brand

PRAMET
