Description: Value
EAN number: 3603603844698
Product number (SAP): 86037901
Ordering code ANSI: 40A3R043M16-STN16-C
Product Line: ECON TN
Gross weight – grams: 231.3

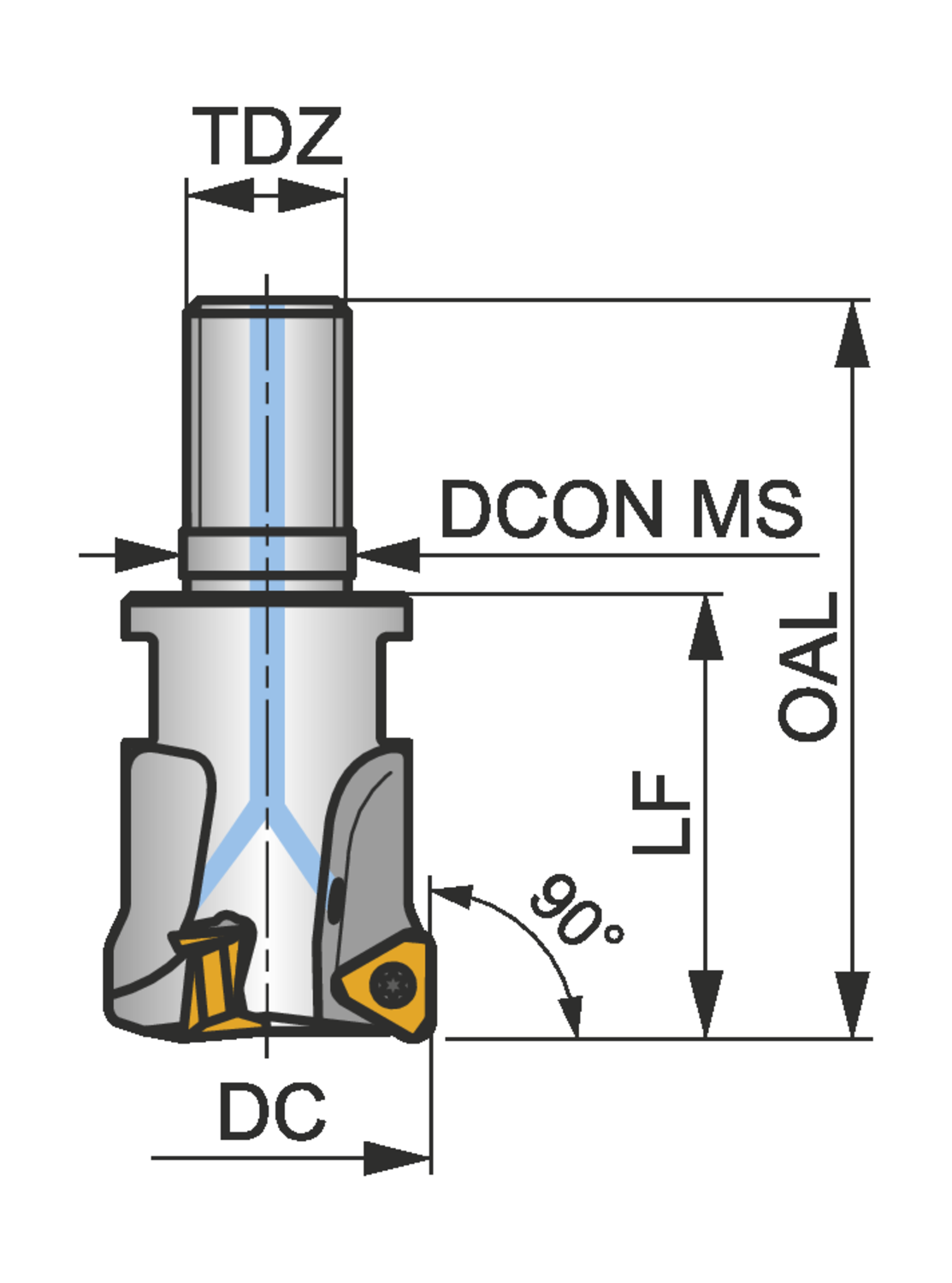

Cutting diameter – millimeter (DC): 40 mm
Overall length – millimeter (OAL): 66 mm
Connection diameter – millimeter (DCON MS): 17 mm
Functional length – millimeter (LF): 43 mm
Thread diameter size (TDZ): M16
Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 16000
Net weight – grams: 202
Cutter Design: STN16
Insert index count (NOI): 3
ISO: 40A3R043M16-STN16-C
|
