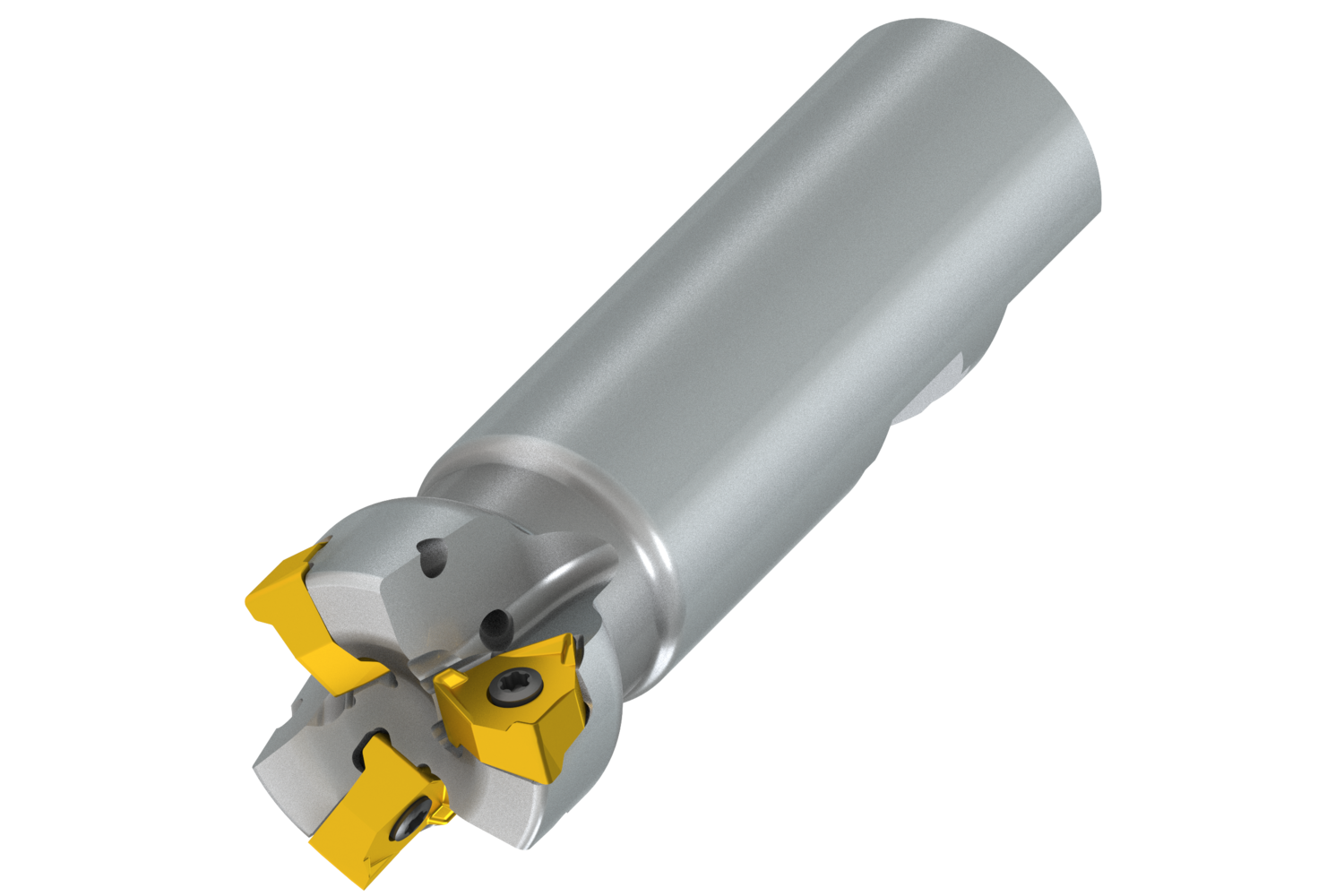

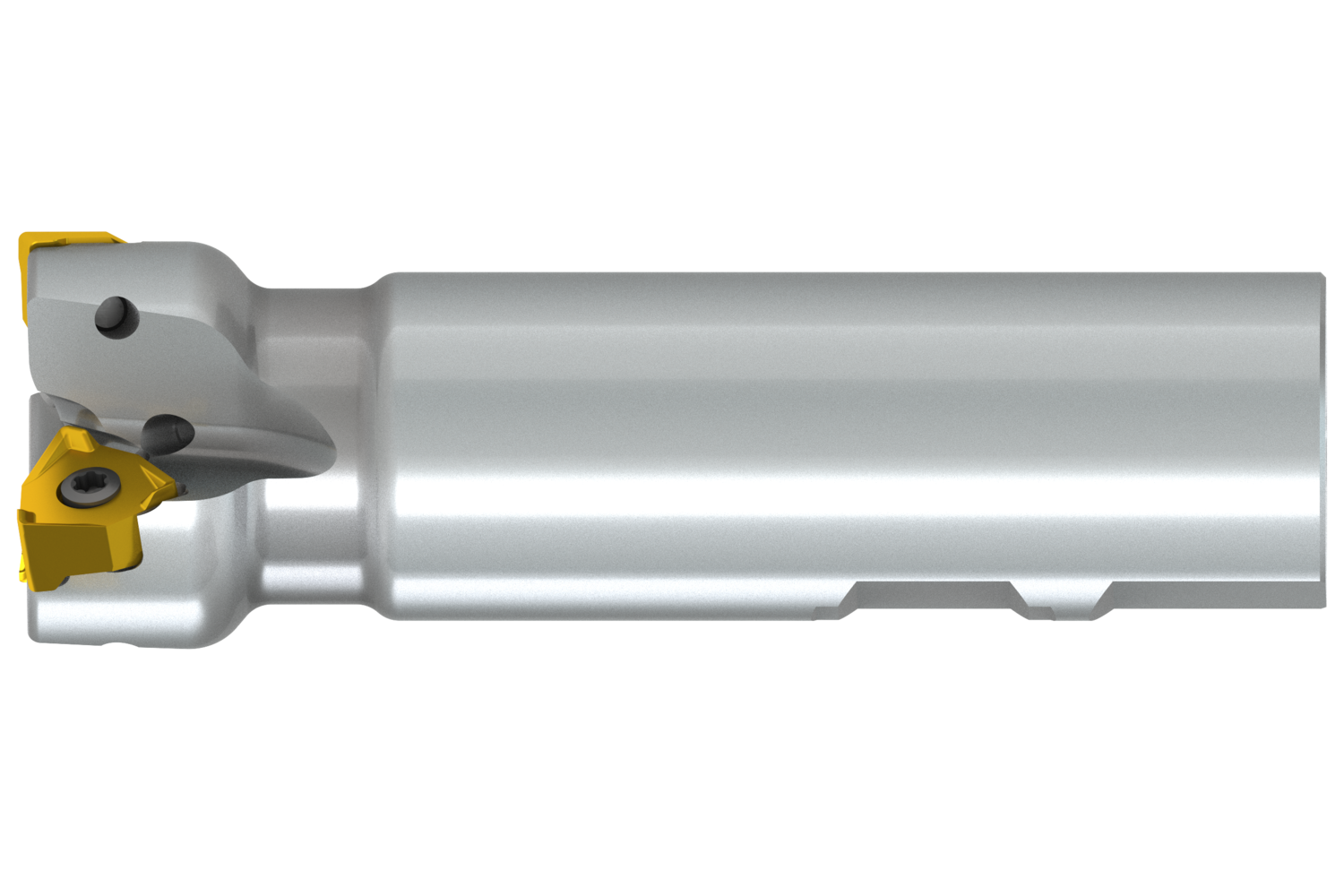

PRAMET 40A3R060B32-SXN08-C Milling Cutters

Description: Value
EAN number: 3603604144186
Product number (SAP): 86043803
Ordering code ANSI: 40A3R060B32-SXN08-C
Gross weight – grams: 1138

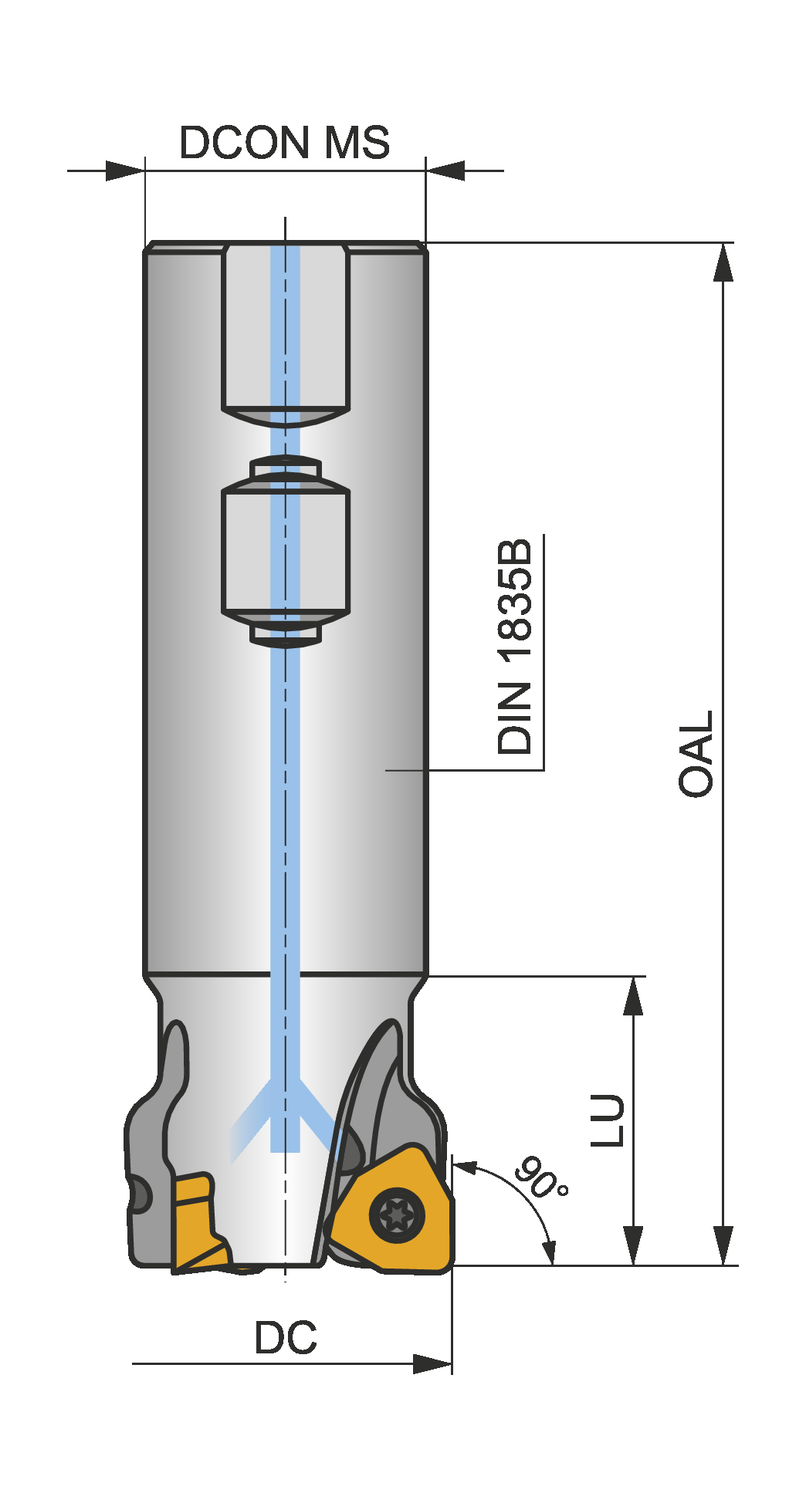

Cutting diameter – millimeter (DC): 40 mm
Overall length – millimeter (OAL): 120 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 60 mm
Usable Length maximum – millimeter (LUX): 60 mm

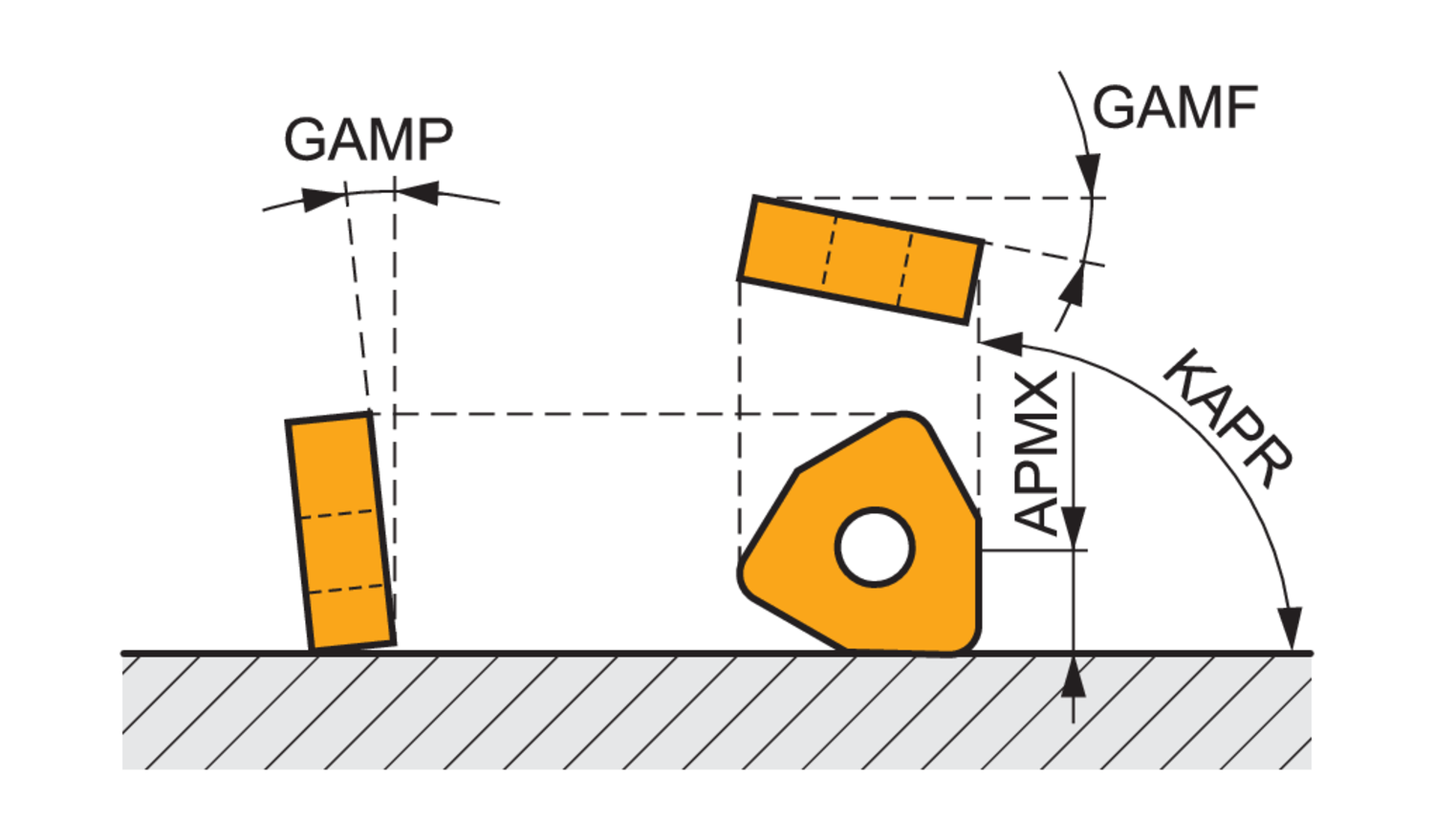

Radial rake angle (GAMF): -15.2
Axial rake angle (GAMP): -8.4
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 11800
Net weight – grams: 660
Cutter Design: SXN08
ISO: 40A3R060B32-SXN08-C
