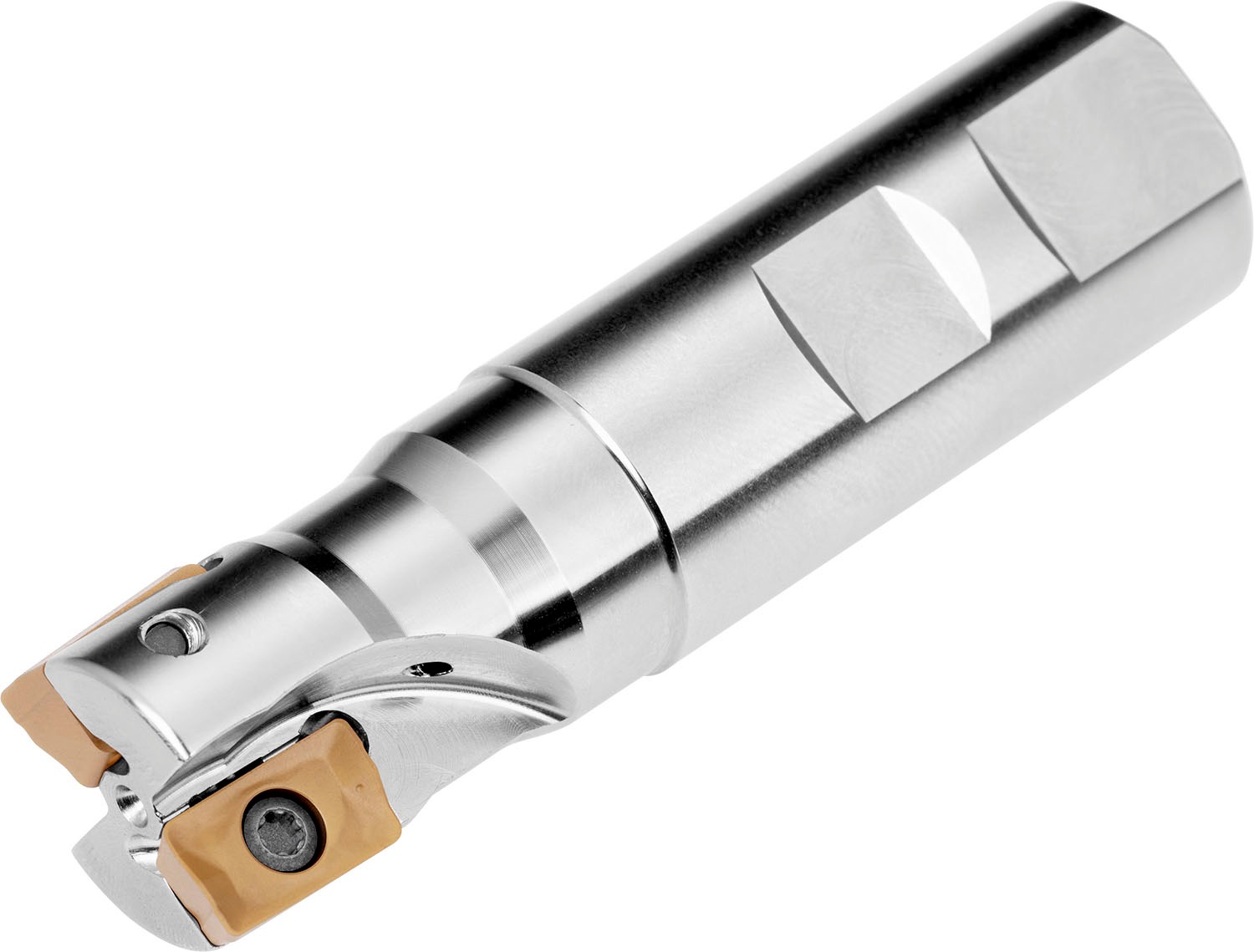

PRAMET 40A4R050B32-SAP16D-C Milling cutters with clamping by screw

Product Code: 40A4R050B32-SAP16D-C

$747.78$679.80 Ex. GST

Product Code: 40A4R050B32-SAP16D-C SKU 40A4R050B32-SAP16D-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 4 of APKT 1604.. or APET 1604.. single-sided inserts, cutting diameter 40mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 50mm functional and 110mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm

Additional information

Weight 0.726 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602937179
Product number (SAP): 84004807
Ordering code ANSI: 40A4R050B32-SAP16D-C
Gross weight – grams: 670
Cutting diameter – millimeter (DC): 40 mm
Overall length – millimeter (OAL): 110 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 50 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 4
Rotational speed maximum (RPMX): 13200
Net weight – grams: 670
Cutter Design: SAP16D
Insert index count (NOI): 4
ISO: 40A4R050B32-SAP16D-C

Brand

PRAMET
