PRAMET 40E3R060A32-SPD09-C

Product Code: 40E3R060A32-SPD09-C

$730.79$664.35 Ex. GST

Product Code: 40E3R060A32-SPD09-C SKU 40E3R060A32-SPD09-C Categories , ,
PRAMET 40E3R060A32-SPD09-C

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

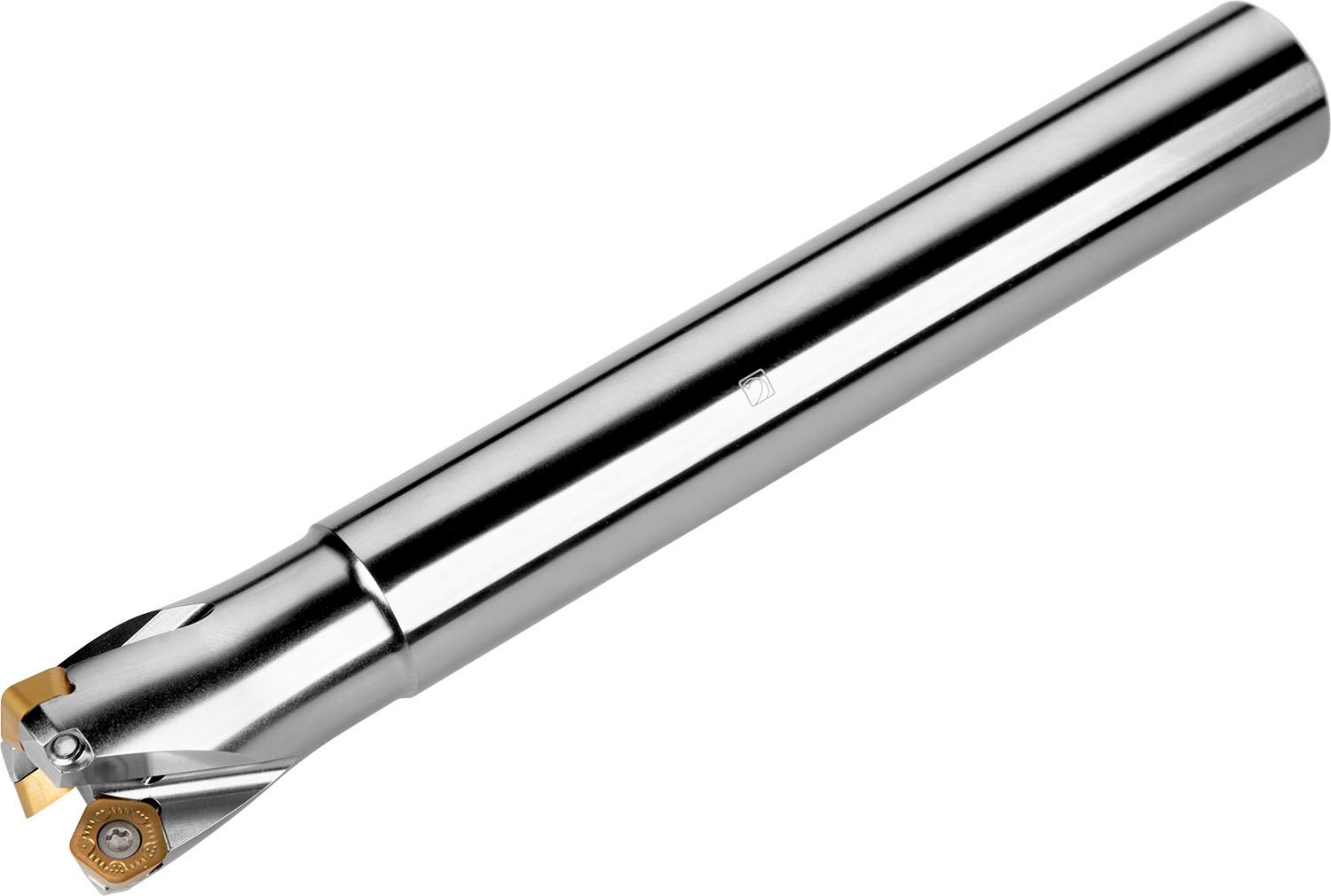

High feed cutter with positve/negative geometry which utilises 3 of PD.X 0905ZE.., PDKT 0905.. or PDMW 0905.. single-sided inserts, cutting diameter 40mm with 19° approach angle and 32mm parallel shank according to DIN 1835A, 60mm functional and 250mm overall length, through coolant for face milling with a maximum depth of cut of 2.0mm

Additional information

Weight 0.7095 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603074026
Product number (SAP): 86025886
Ordering code ANSI: 40E3R060A32-SPD09-C
Product Line: PENTA HF
Gross weight – grams: 1432.9
Cutting diameter maximum – millimeter (DCX): 40 mm
Cutting diameter – millimeter (DC): 25.5 mm
Overall length – millimeter (OAL): 250 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 60 mm
Radial rake angle (GAMF): -11
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 11700
Net weight – grams: 1420
Cutter Design: SPD09
Insert index count (NOI): 3
ISO: 40E3R060A32-SPD09-C

Brand

PRAMET
