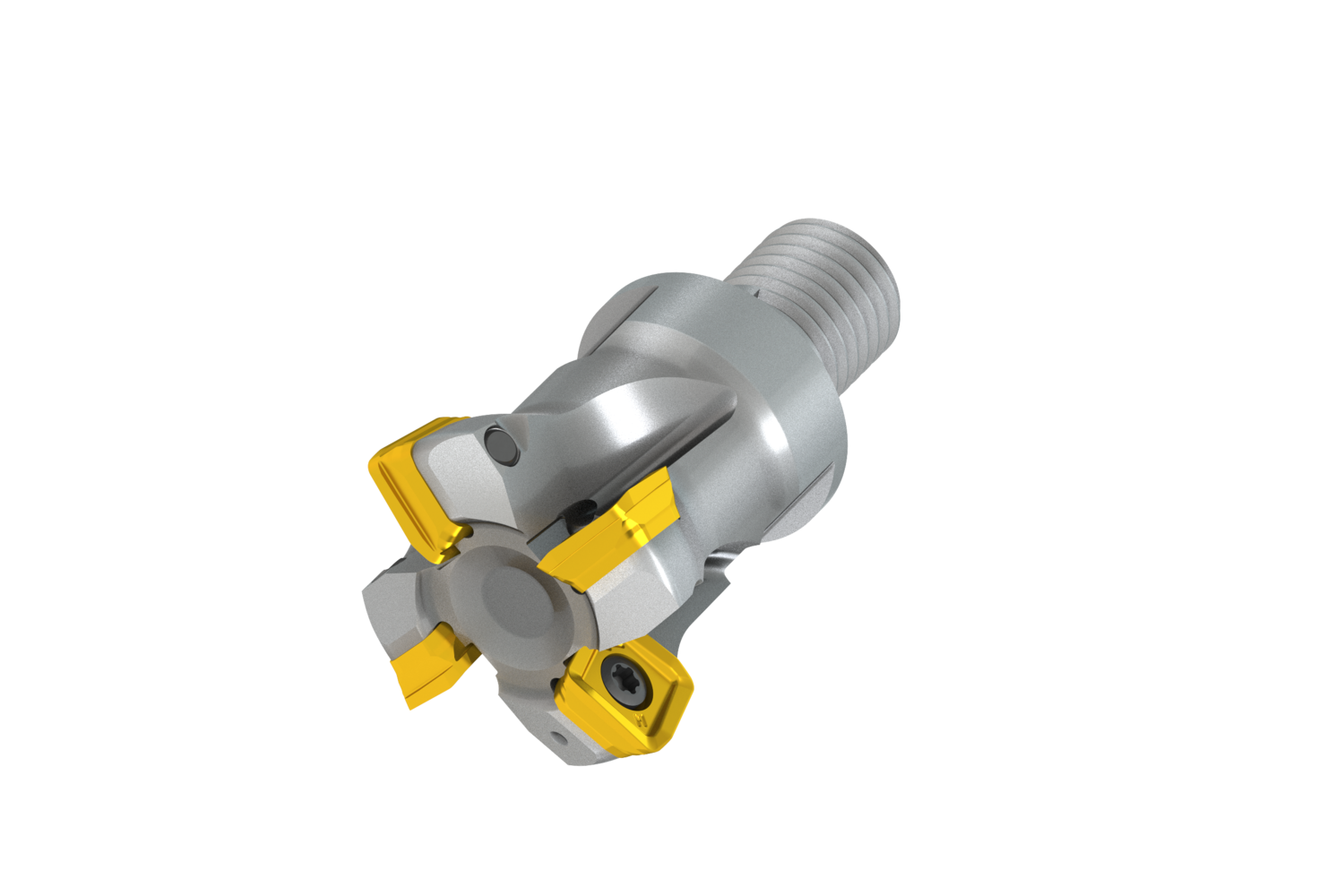

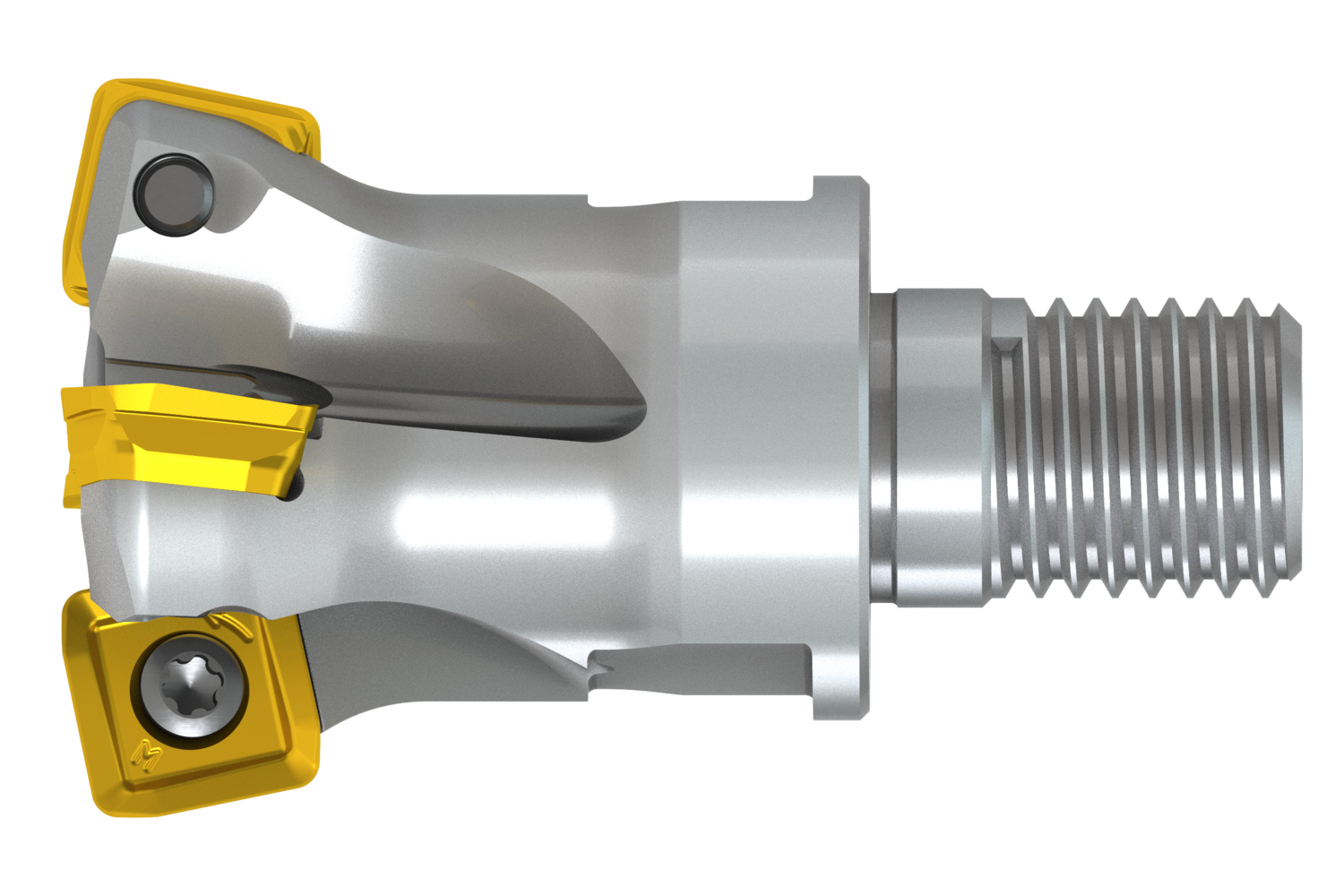

PRAMET 40E4R043M16-SSO12-C

Description

Highly versatile 12˚ high feed mill utilising single sided SO.. 12 style inserts with APMX of 1,9 mm Cutting diameter 22.3 mm with 12° approach angle and M16 threaded shank for standard modular tool-holders, 43 mm functional length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling

Additional information

Weight	0.1800 kg
Dimensions
barcode	3603604263207

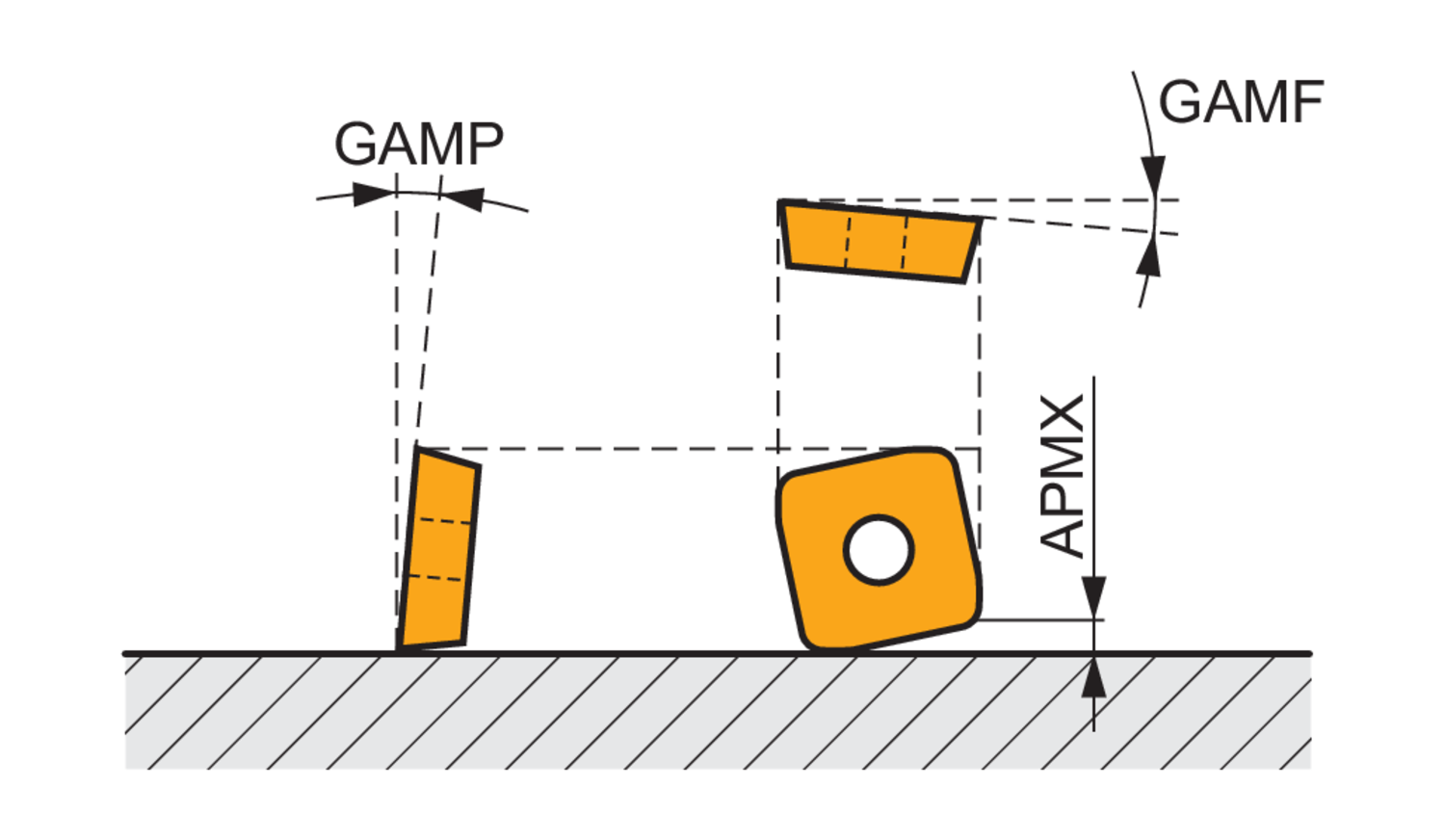

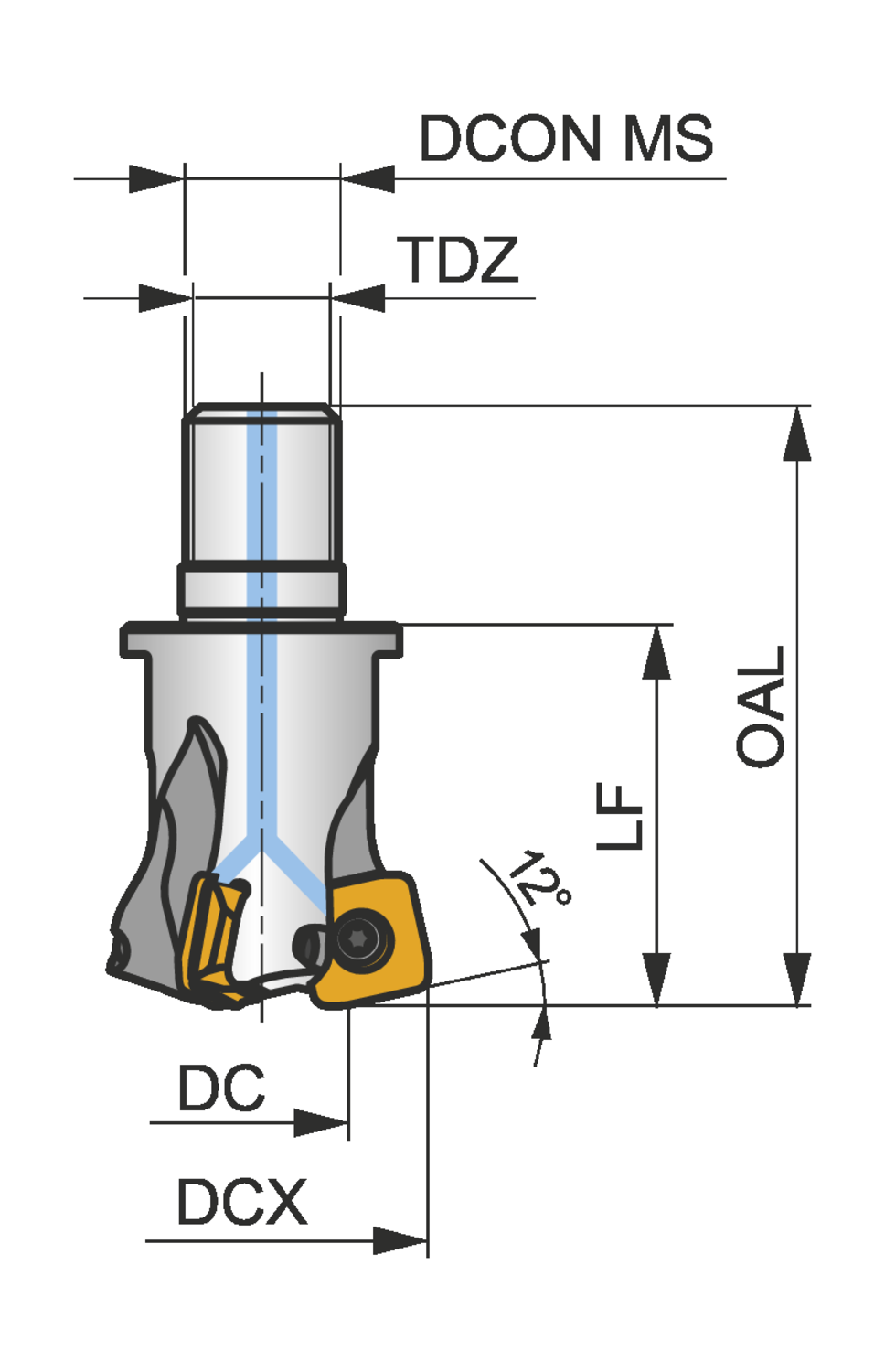

Additional Information	Description: Value EAN number: 3603604263207 Product number (SAP): 86045455 Ordering code ANSI: 40E4R043M16-SSO12-C Gross weight – grams: 206.2 Cutting diameter – millimeter (DC): 22.3 mm Overall length – millimeter (OAL): 66 mm Connection diameter – millimeter (DCON MS): 17 mm Functional length – millimeter (LF): 43 mm Thread diameter size (TDZ): M16 Radial rake angle (GAMF): -5 Axial rake angle (GAMP): 5 Peripheral effective cutting edge count (ZEFP): 4 Rotational speed maximum (RPMX): 14700 Net weight – grams: 180 Cutter Design: SSO12 ISO: 40E4R043M16-SSO12-C
