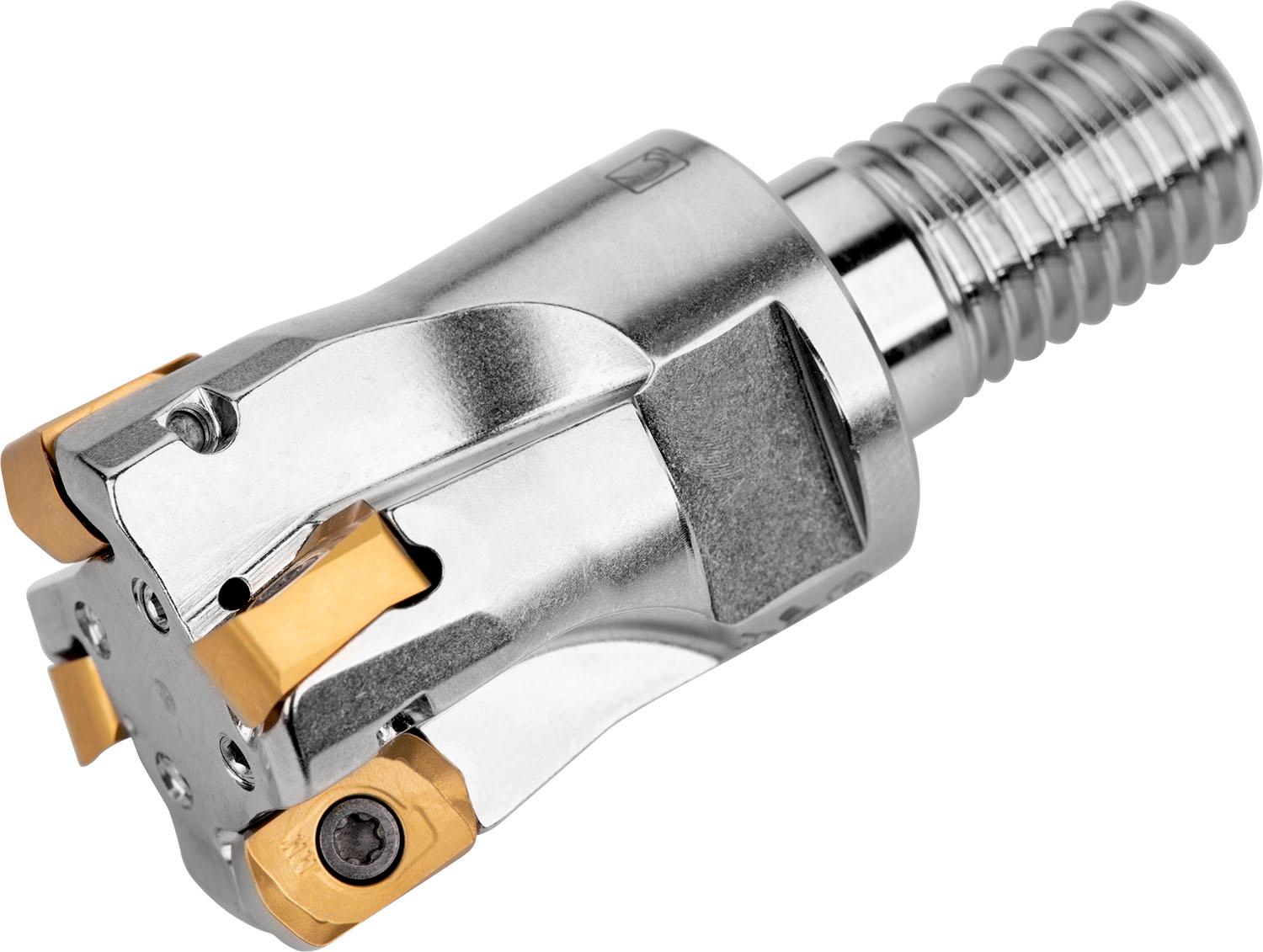

PRAMET 40E6R043M16-SBN10-C Carbide insert

Product Code: 40E6R043M16-SBN10-C

$733.05$666.41 Ex. GST

Product Code: 40E6R043M16-SBN10-C SKU 40E6R043M16-SBN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

High feed cutter with double negative geometry which utilises 6 of BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 40mm with 20° approach angle and M16 threaded shank for standard modular tool-holders, 43mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0mm

Additional information

Weight 0.7117 kg
Dimensions Length 6.6cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603406056
Product number (SAP): 86033505
Ordering code ANSI: 40E6R043M16-SBN10-C
Gross weight – grams: 273.2
Cutting diameter maximum – millimeter (DCX): 40 mm
Cutting diameter – millimeter (DC): 33.4 mm
Overall length – millimeter (OAL): 66 mm
Connection diameter – millimeter (DCON MS): 17 mm
Functional length – millimeter (LF): 43 mm
Thread diameter size (TDZ): M16
Radial rake angle (GAMF): -7
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 6
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 19600
Net weight – grams: 273.2
Cutter Design: SBN10
Insert index count (NOI): 6
ISO: 40E6R043M16-SBN10-C

Brand

PRAMET
