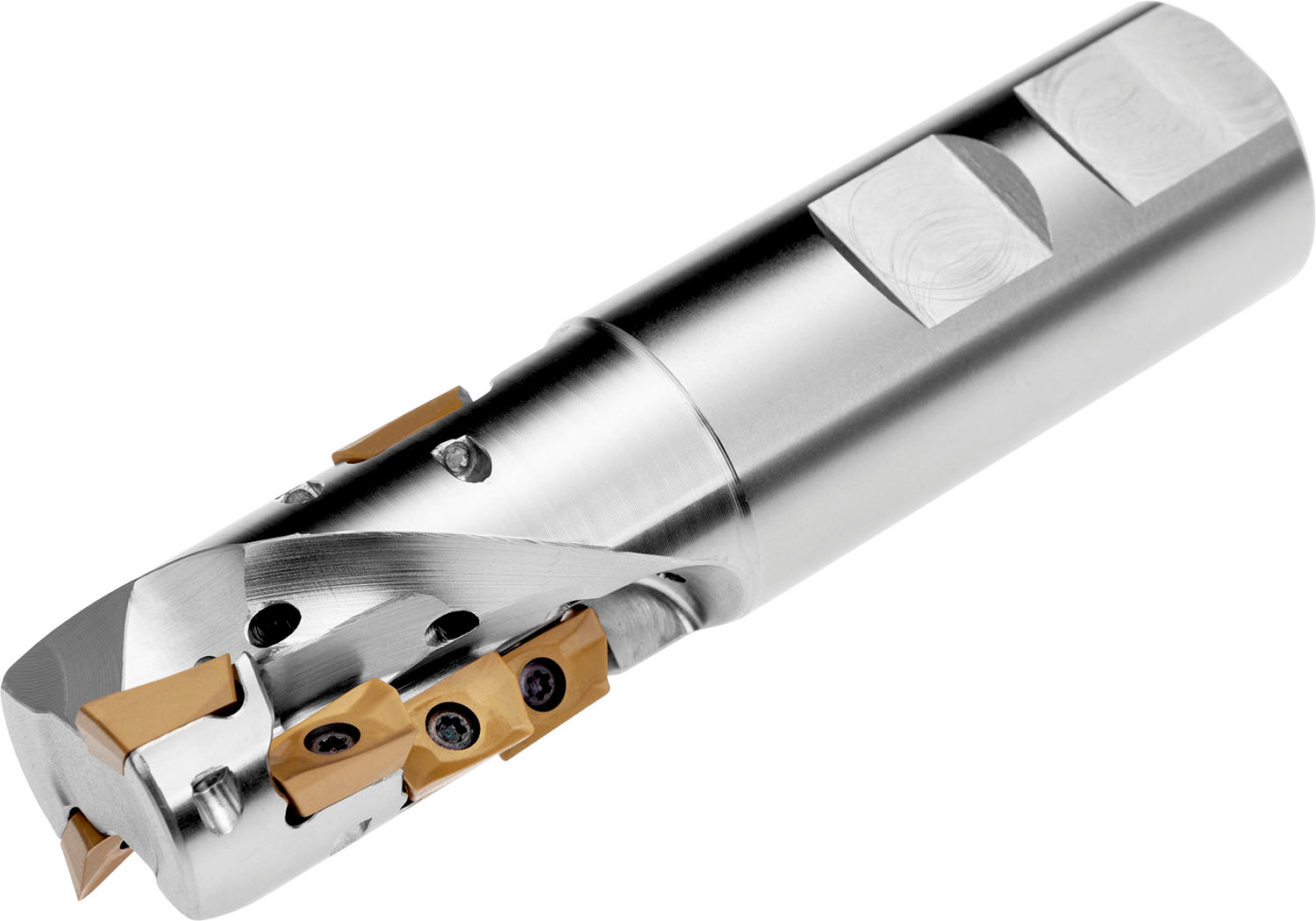

PRAMET 40J3R70B40-SAD11E56-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603602949929
Product number (SAP): 86038523
Ordering code ANSI: 40J3R70B40-SAD11E56-C
Product Line: FORCE AD
Gross weight – grams: 1074
Cutting diameter – millimeter (DC): 40 mm
Overall length – millimeter (OAL): 140 mm
Connection diameter – millimeter (DCON MS): 40 mm
Usable Length – millimeter (LU): 70 mm
Depth of cut maximum – millimeter (APMX): 56 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -8.1
Axial rake angle (GAMP): 11
Flute count (NOF): 3
Number of inserts (helical mills): 18
Rotational speed maximum (RPMX): 19100
Net weight – grams: 1074
Insert index count (NOI): 18
ISO: 40J3R70B40-SAD11E56-C
