PRAMET 42A03R-S19PD09-C

Product Code: 42A03R-S19PD09-C

$710.39$645.81 Ex. GST

Product Code: 42A03R-S19PD09-C SKU 42A03R-S19PD09-C Categories , ,
PRAMET 42A03R-S19PD09-C

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

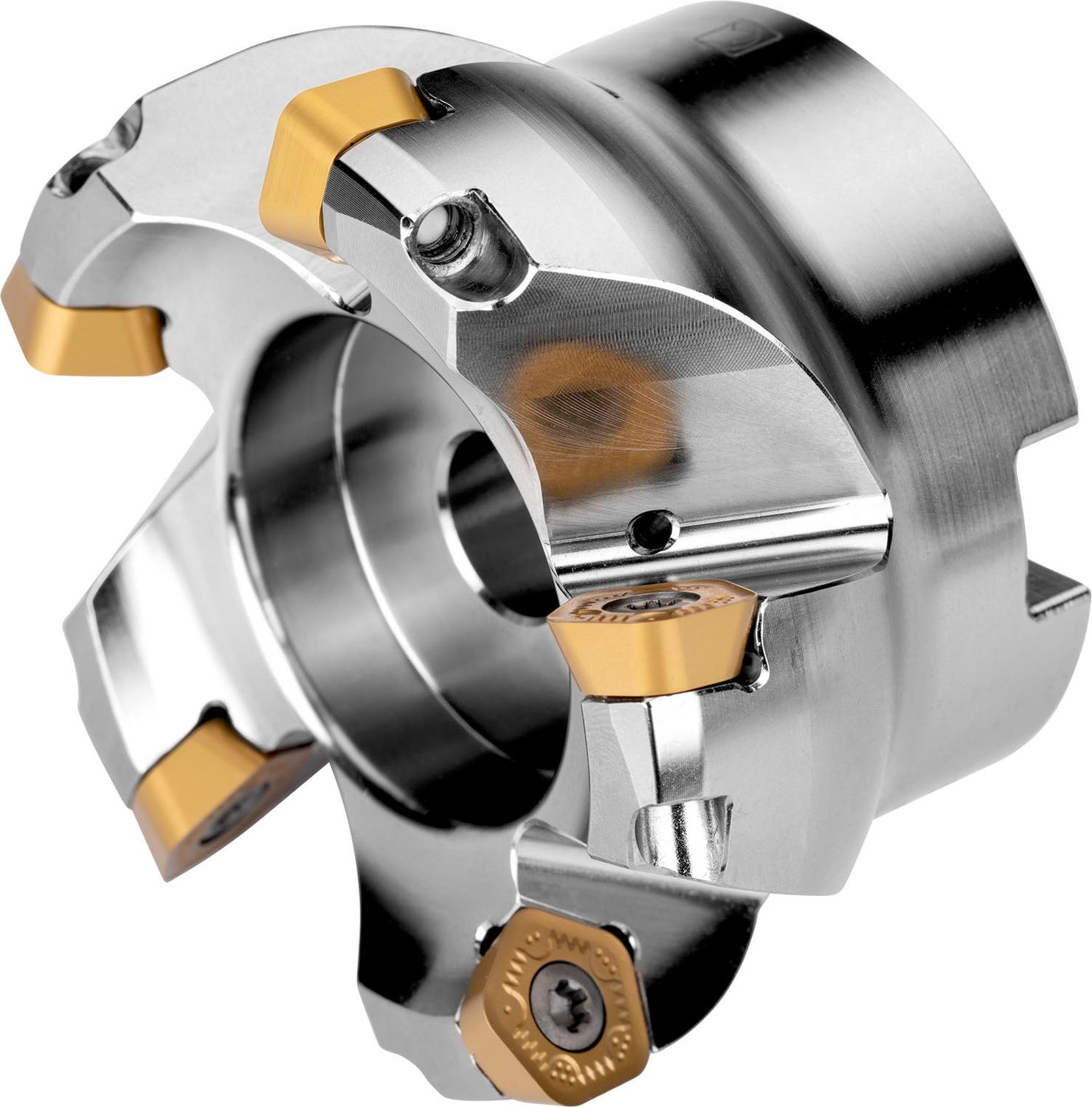

High feed cutter with positve/negative geometry which utilises 3 of PD.X 0905ZE.., PDKT 0905.. or PDMW 0905.. single-sided inserts, cutting diameter 42mm with 19° approach angle and 16mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant for face milling with a maximum depth of cut of 2.0mm

Additional information

Weight 0.6897 kg
barcode
Additional Information

Description: Value
EAN number: 3603602966025
Product number (SAP): 86006864
Ordering code ANSI: 42A03R-S19PD09-C
Product Line: PENTA HF
Gross weight – grams: 280.5
Cutting diameter maximum – millimeter (DCX): 42 mm
Cutting diameter – millimeter (DC): 27.5 mm
Connection diameter – millimeter (DCON MS): 16 mm
Counterbore diameter connection bore – millimeter (DCCB): 12 mm
Functional length – millimeter (LF): 40 mm
Radial rake angle (GAMF): -8
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 11500
Net weight – grams: 180
Cutter Design: SPD09
Insert index count (NOI): 3
ISO: 42A03R-S19PD09-C

Brand

PRAMET
