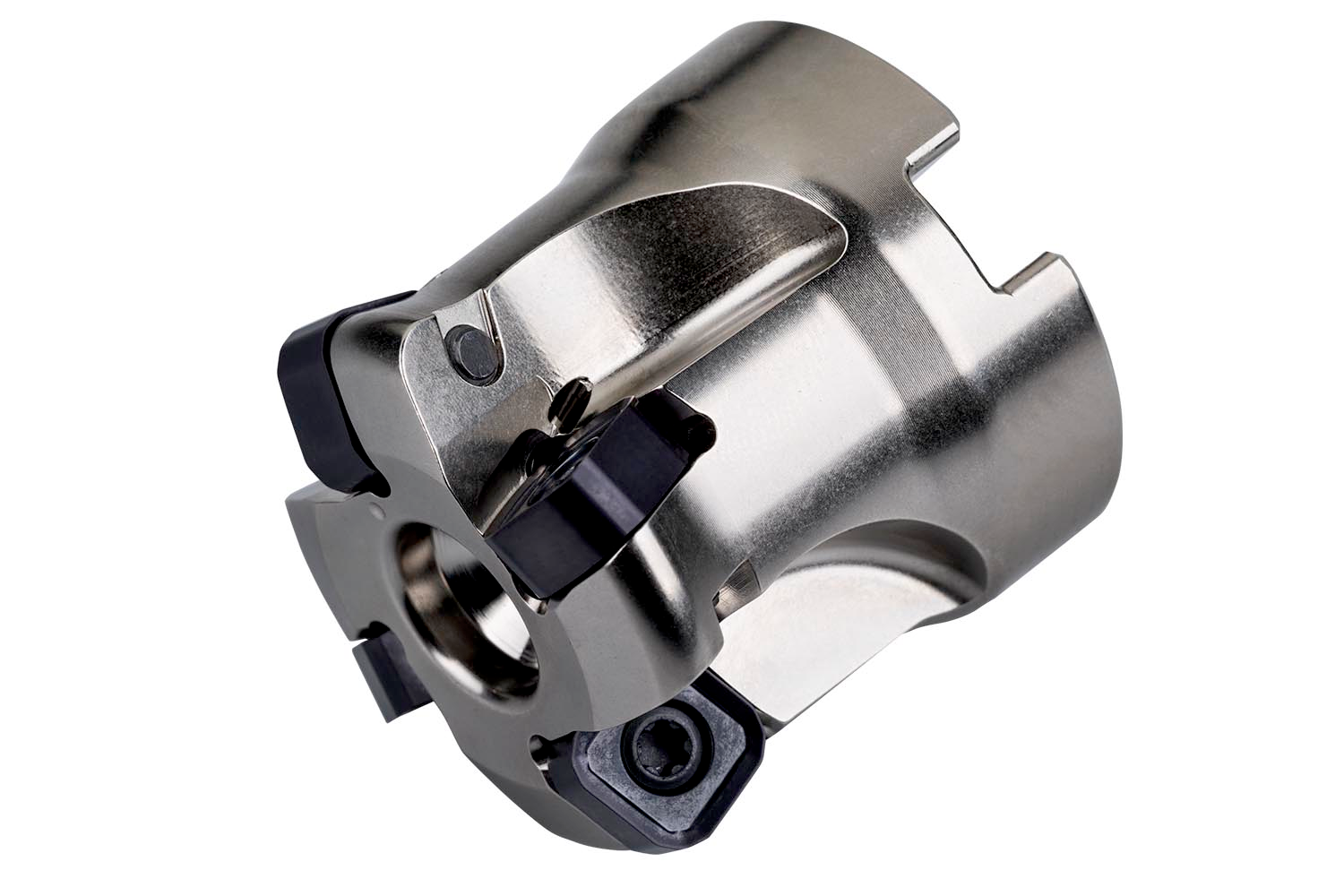

PRAMET 42A04R-SMOSN11-C

Description: Value
EAN number: 3603603672345
Product number (SAP): 86035423
Ordering code ANSI: 42A04R-SMOSN11-C
Gross weight – grams: 331
Cutting diameter maximum – millimeter (DCX): 42 mm
Cutting diameter – millimeter (DC): 28.2 mm
Connection diameter – millimeter (DCON MS): 16 mm
Counterbore diameter connection bore – millimeter (DCCB): 14.1 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 8.4 mm
Keyway depth – millimeter (KWD): 5.6 mm
Radial rake angle (GAMF): -10.5
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 4
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 15300
Net weight – grams: 210
Cutter Design: SSN11
Insert index count (NOI): 4
ISO: 42A04R-SMOSN11-C
