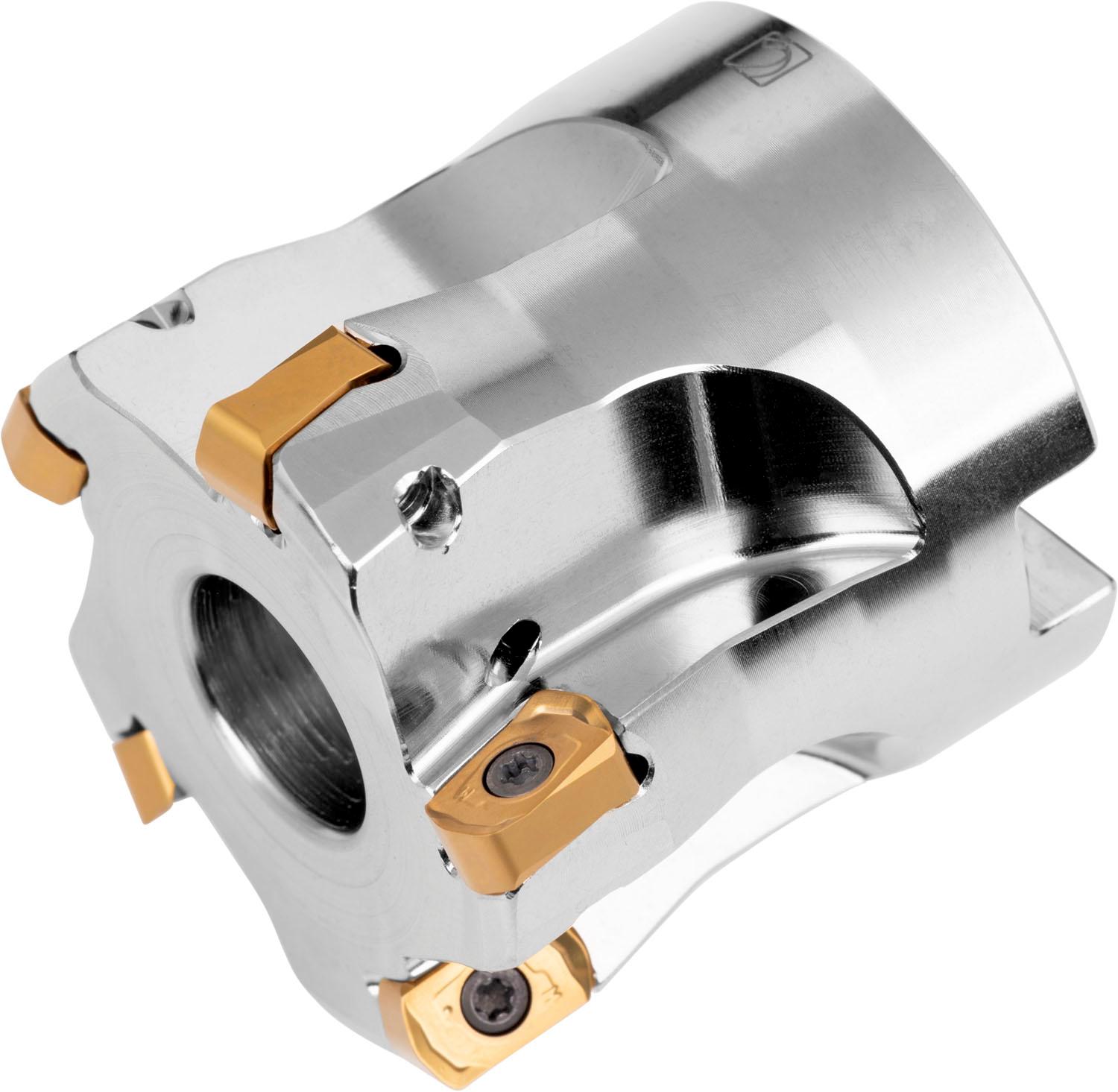

PRAMET 42A05R-SMOBN10-C Carbide insert

Description: Value
EAN number: 3603603406032
Product number (SAP): 86033503
Ordering code ANSI: 42A05R-SMOBN10-C
Gross weight – grams: 345.2
Cutting diameter maximum – millimeter (DCX): 42 mm
Cutting diameter – millimeter (DC): 35.4 mm
Connection diameter – millimeter (DCON MS): 16 mm
Counterbore diameter connection bore – millimeter (DCCB): 14.1 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 8.4 mm
Keyway depth – millimeter (KWD): 5.6 mm
Radial rake angle (GAMF): -7
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 19100
Net weight – grams: 230
Cutter Design: SBN10
Insert index count (NOI): 5
ISO: 42A05R-SMOBN10-C
