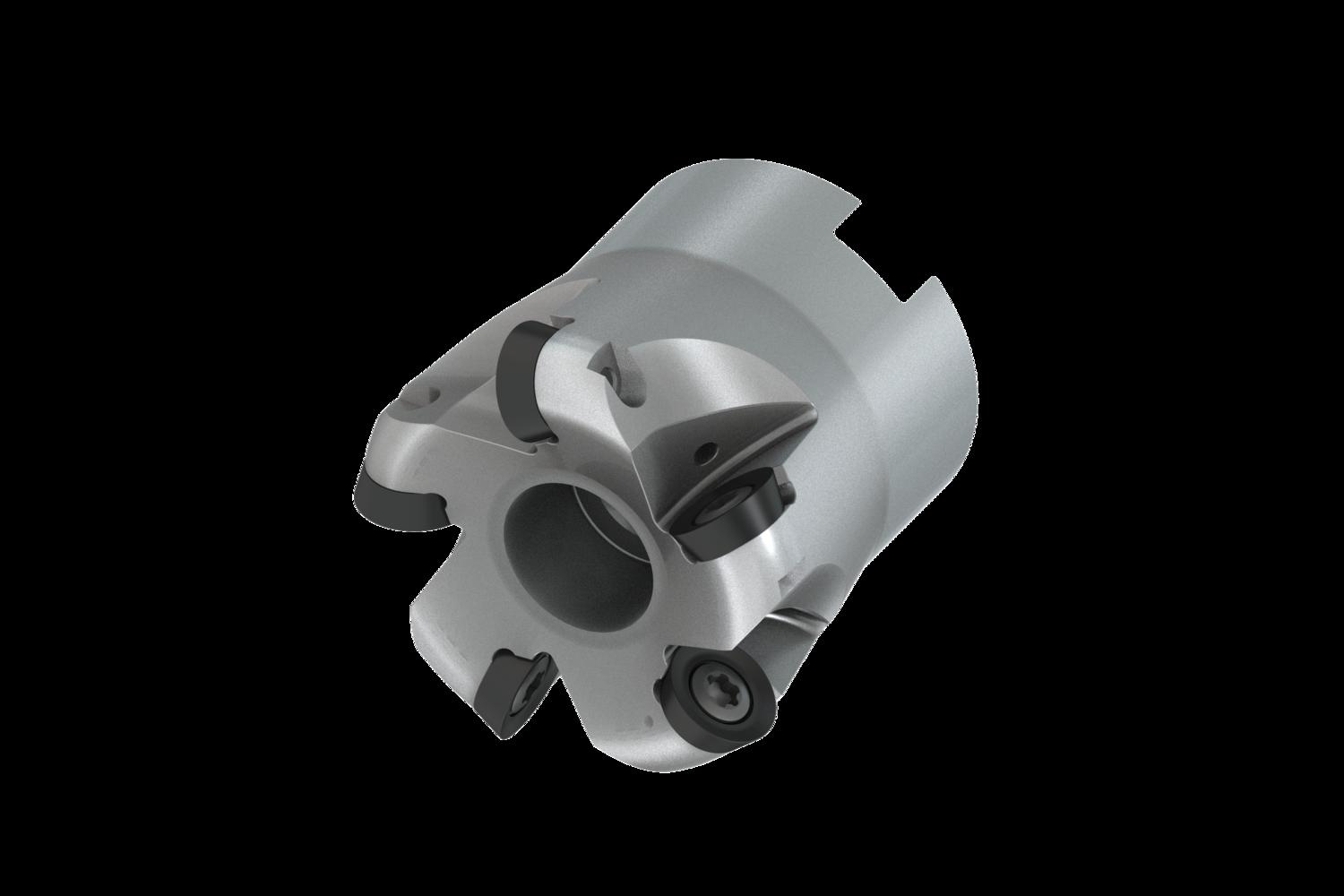

PRAMET 42A05R-SMORD10-CF Milling cutters for D&M

Product Code: 42A05R-SMORD10-CF

$565.37$513.97 Ex. GST

Product Code: 42A05R-SMORD10-CF SKU 42A05R-SMORD10-CF Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Copy face mill with double negative geometry which utilises 5 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 42mm with 16mm connection bore according to DIN 8030-A, 40mm functional and, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2.5mm

Additional information

Weight 0.5489 kg
barcode
Additional Information

Description: Value
EAN number: 3603603848054
Product number (SAP): 86037942
Ordering code ANSI: 42A05R-SMORD10-CF
Gross weight – grams: 321
Cutting diameter maximum – millimeter (DCX): 42 mm
Cutting diameter – millimeter (DC): 32 mm
Functional length – millimeter (LF): 40 mm
Connection diameter – millimeter (DCON MS): 16 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 0
Peripheral effective cutting edge count (ZEFP): 5
Rotational speed maximum (RPMX): 21200
Net weight – grams: 200
Cutter Design: SRD10
Insert index count (NOI): 5
ISO: 42A05R-SMORD10-CF

Brand

PRAMET
