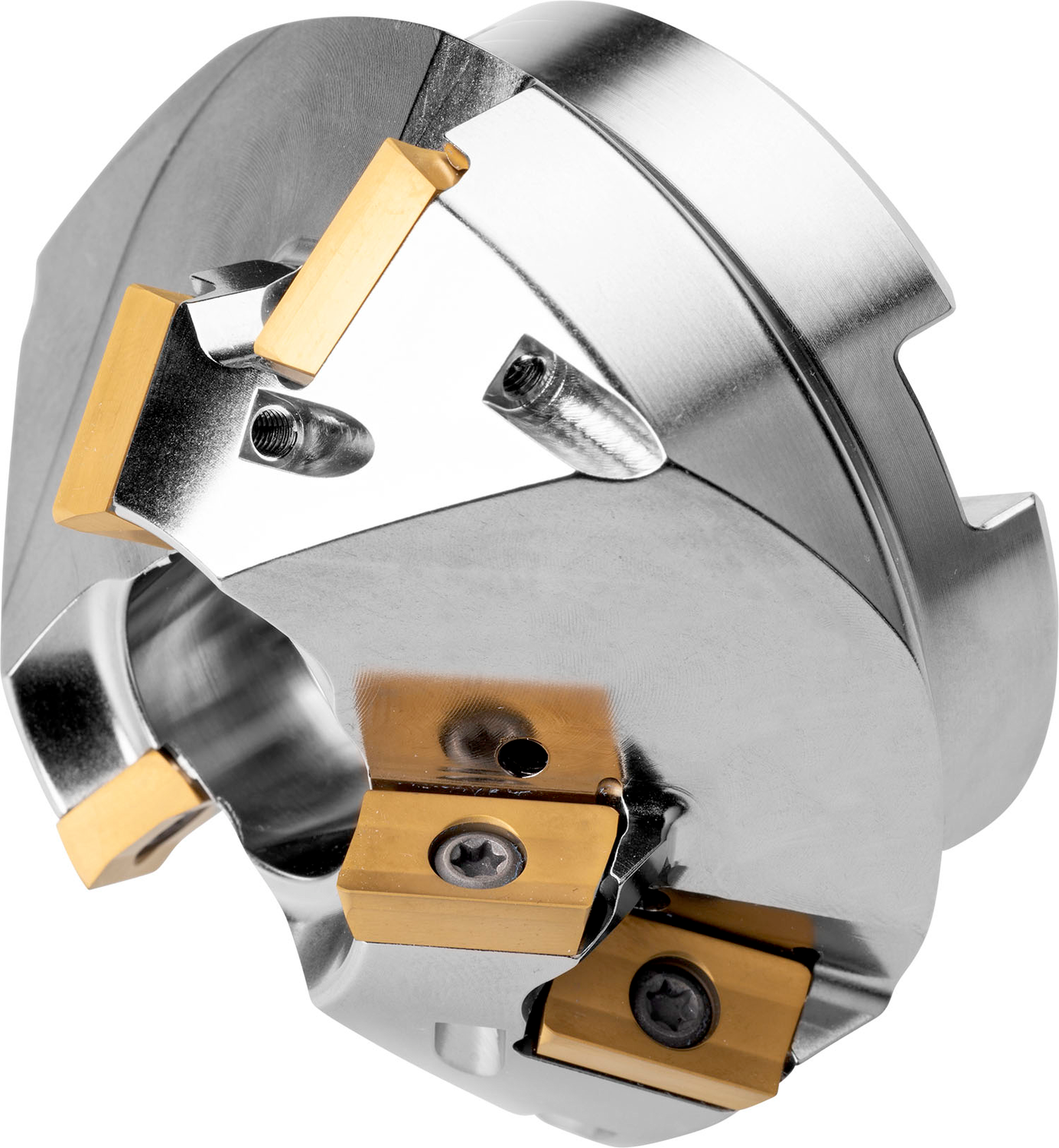

PRAMET 45T04R-S25XP1612-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603602956989
Product number (SAP): 86001605
Ordering code ANSI: 45T04R-S25XP1612-C
Gross weight – grams: 1236.3
Cutting diameter – millimeter (DC): 45 mm
Cutting diameter maximum – millimeter (DCX): 97.3 mm
Functional length – millimeter (LF): 50 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 22 mm
Tool cutting edge angle (KAPR): 25
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 0
Flute count (NOF): 4
Number of inserts (helical mills): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 13400
Net weight – grams: 1236.3
Cutter Design: J(T)-SXP16
Insert index count (NOI): 8
ISO: 45T04R-S25XP1612-C
