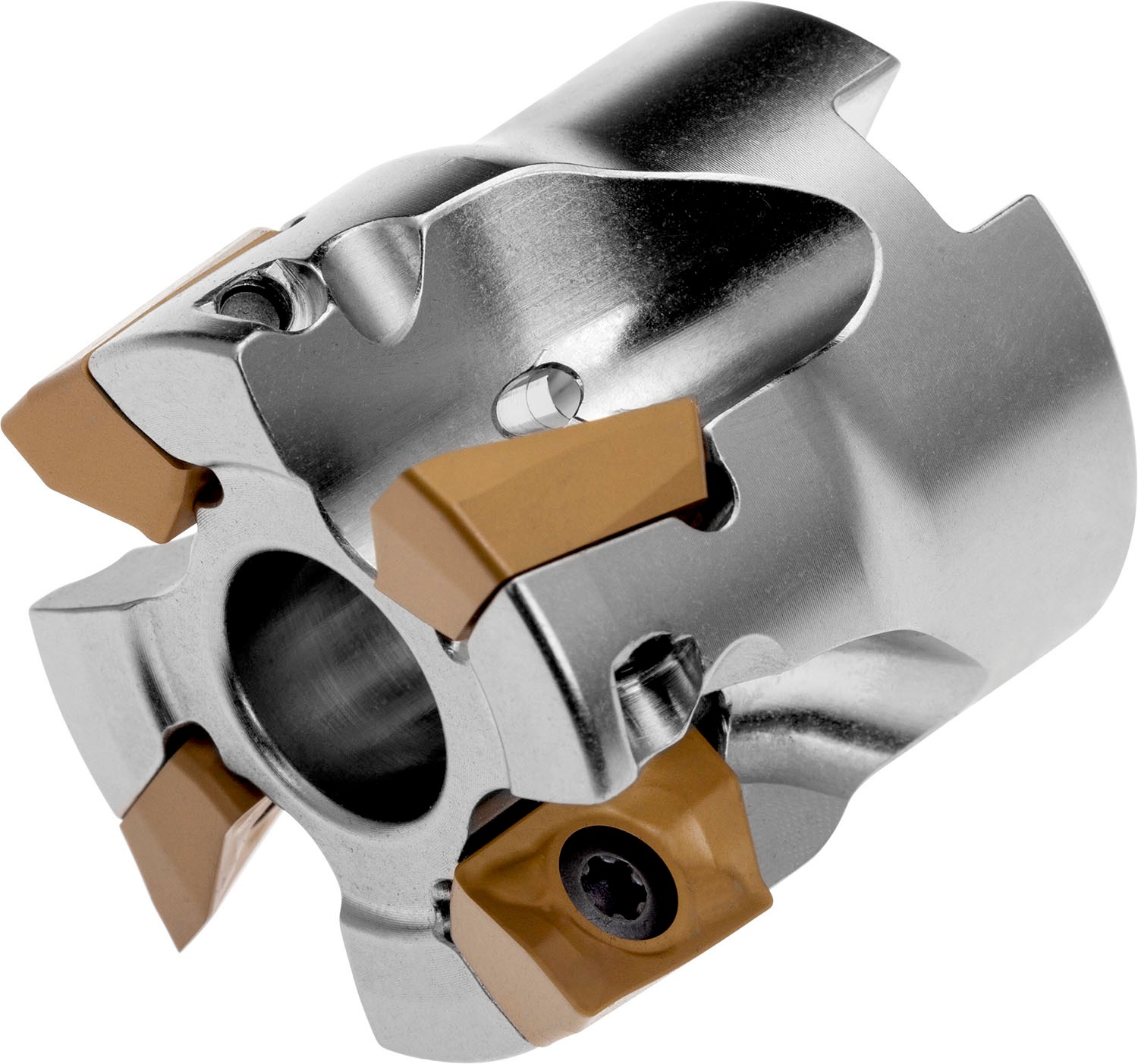

PRAMET 50A03R-S90AD16E-C Milling cutters with clamping by screw

Product Code: 50A03R-S90AD16E-C

$776.11$705.55 Ex. GST

Product Code: 50A03R-S90AD16E-C SKU 50A03R-S90AD16E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 3 of ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm

Additional information

Weight 0.7535 kg
barcode
Additional Information

Description: Value
EAN number: 3603602955203
Product number (SAP): 86000170
Ordering code ANSI: 50A03R-S90AD16E-C
Product Line: FORCE AD
Gross weight – grams: 430.1
Cutting diameter – millimeter (DC): 50 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Connection size code machine side (CZC MS): –
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm
Radial rake angle (GAMF): -7
Axial rake angle (GAMP): 11
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 13200
Net weight – grams: 426.9
Cutter Design: SAD16E
Insert index count (NOI): 3
ISO: 50A03R-S90AD16E-C
