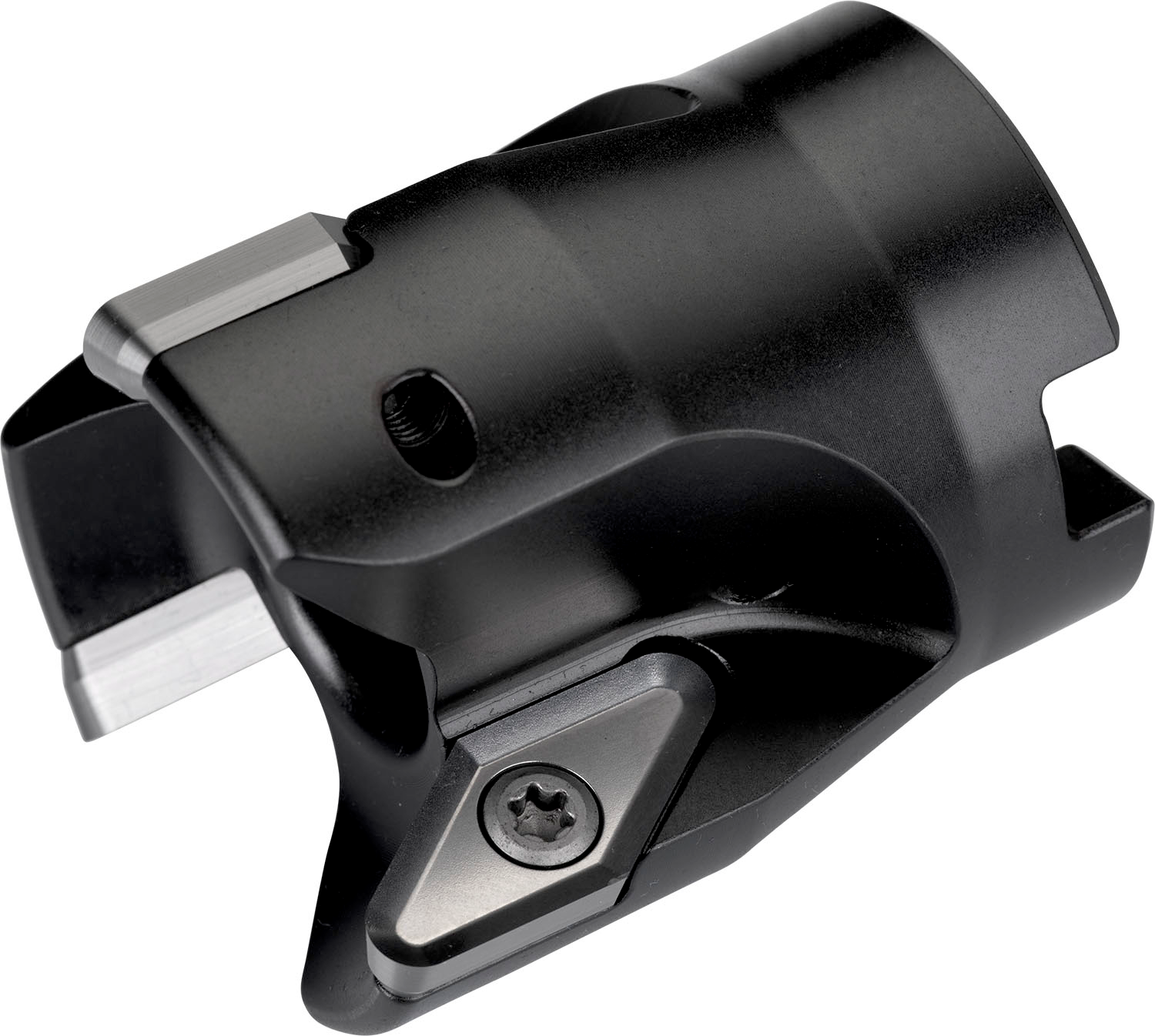

PRAMET 50A03R-S90VC22C Milling cutters with clamping by screw

Product Code: 50A03R-S90VC22C

$934.73$849.75 Ex. GST

Product Code: 50A03R-S90VC22C SKU 50A03R-S90VC22C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

End mill with double positive geometry which utilises 3 of VCGT 220530F-FA single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 56mm protrusion length, through coolant for helical milling and progressive plunge milling with a maximum depth of cut of 3.0 (16.0)mm

Additional information

Weight 0.9075 kg
barcode
Additional Information

Description: Value
EAN number: 3603602933423
Product number (SAP): 84003835
Ordering code ANSI: 50A03R-S90VC22C
Gross weight – grams: 419
Cutting diameter – millimeter (DC): 50 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 56 mm
Hub diameter – millimeter (DHUB): 40 mm
Keyway width – millimeter (KWW): 10 mm
Keyway depth – millimeter (KWD): 6.3 mm
Radial rake angle (GAMF): 4
Axial rake angle (GAMP): 3
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 8400
Net weight – grams: 417.3
Cutter Design: SVC22C
Insert index count (NOI): 3
ISO: 50A03R-S90VC22C

Brand

PRAMET
