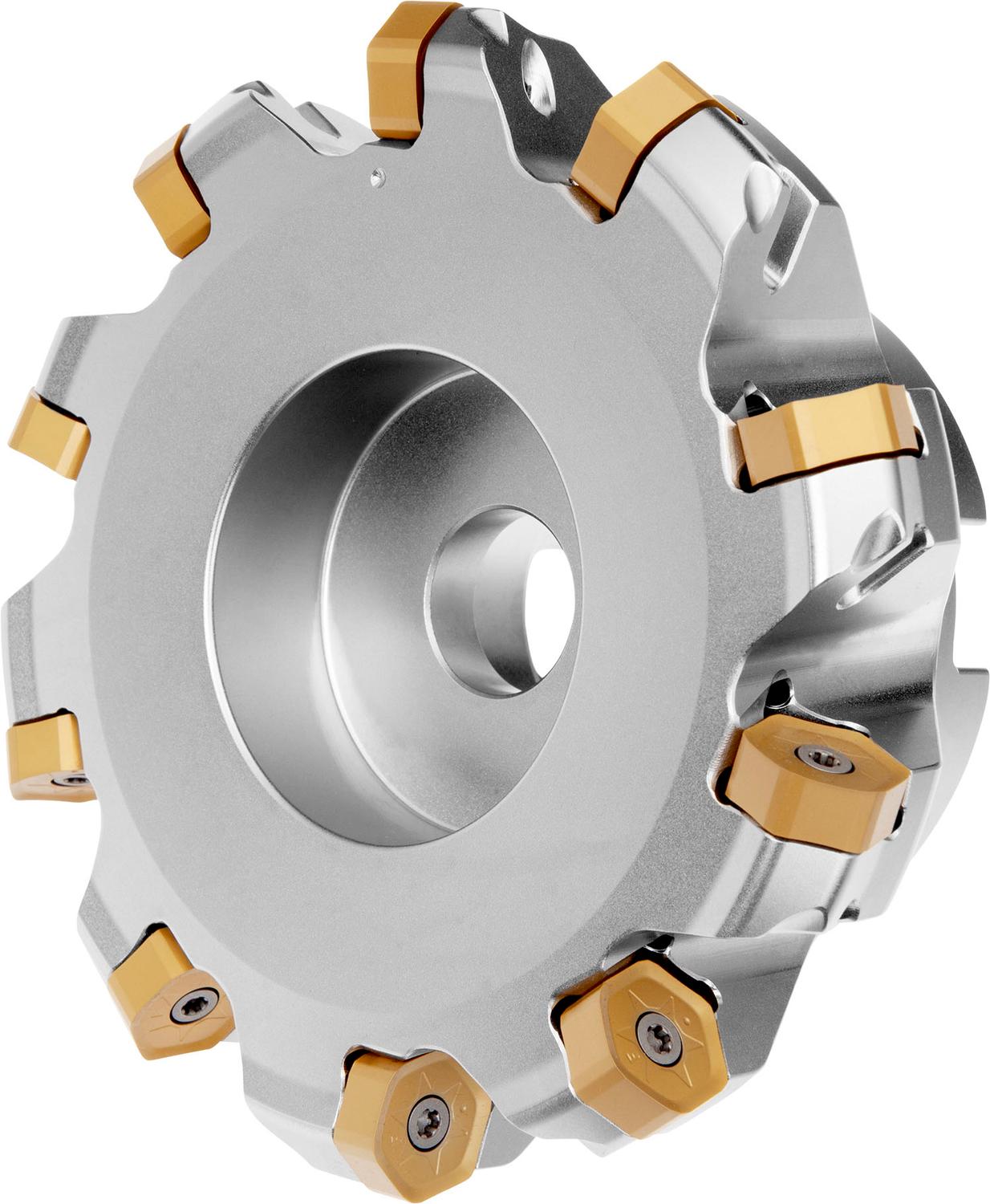

PRAMET 50A04R-S45HN09C-CF Milling cutters with clamping by screw

Description: Value
EAN number: 3603602969125
Product number (SAP): 86007283
Ordering code ANSI: 50A04R-S45HN09C-CF
Product Line: ECON HN
Gross weight – grams: 503.5
Cutting diameter – millimeter (DC): 50 mm
Cutting diameter maximum – millimeter (DCX): 61.7 mm
Functional length – millimeter (LF): 40 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm
Radial rake angle (GAMF): -7
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 4
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 7900
Net weight – grams: 380
Cutter Design: SHN09C
Insert index count (NOI): 4
ISO: 50A04R-S45HN09C-CF
