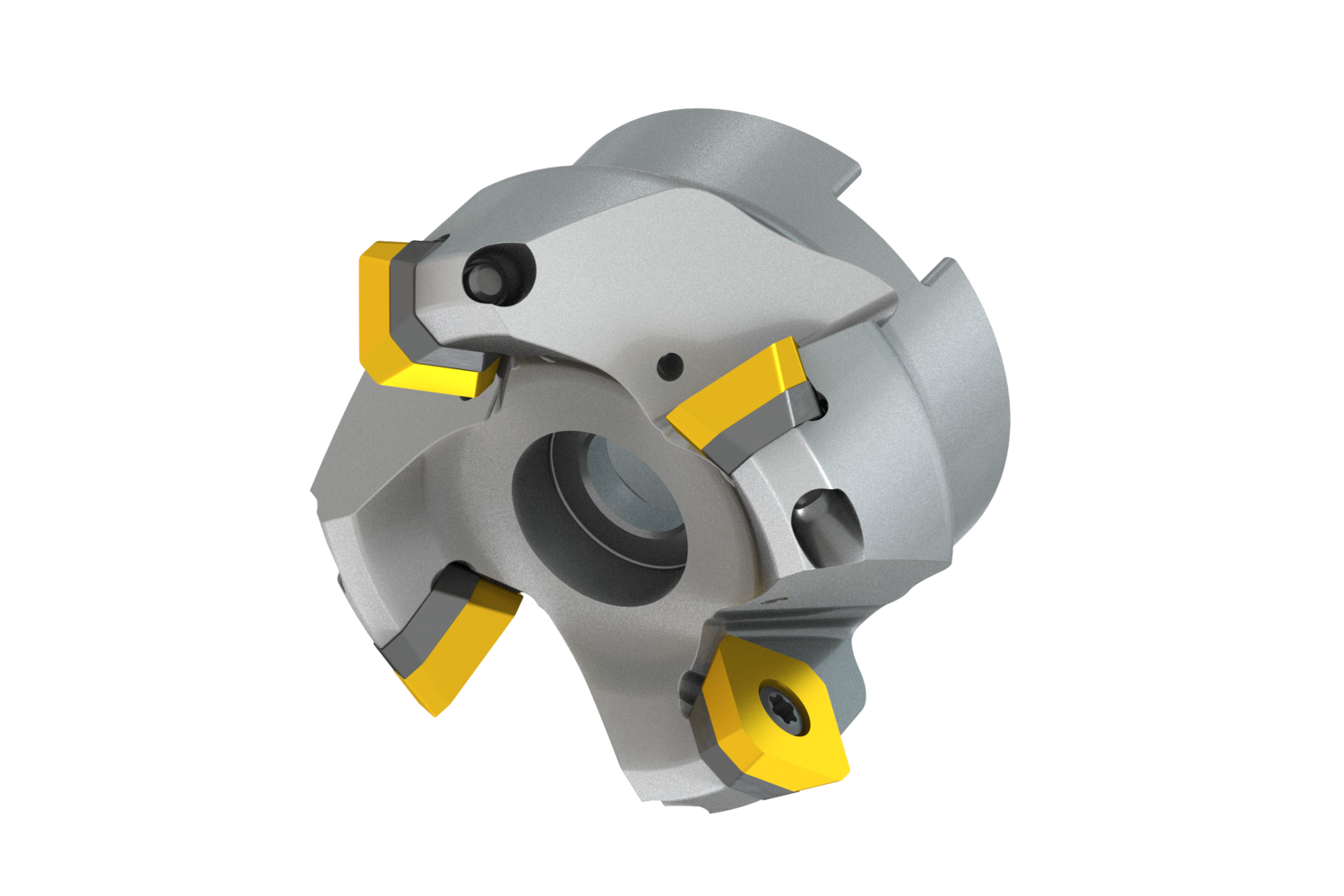

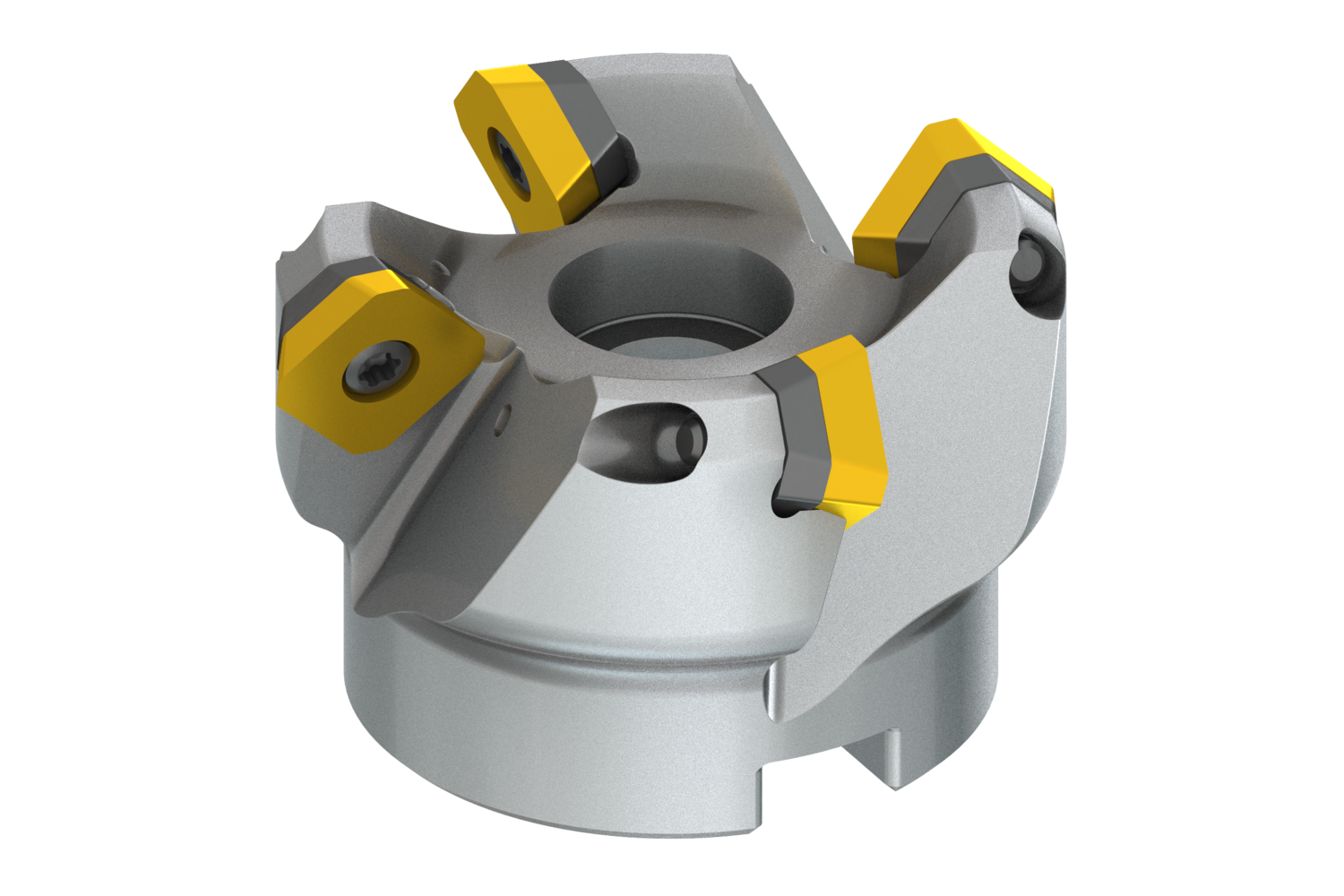

PRAMET 50A04R-S45SD13F-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603603977211
Product number (SAP): 86038938
Ordering code ANSI: 50A04R-S45SD13F-C
Gross weight – grams: 517.7

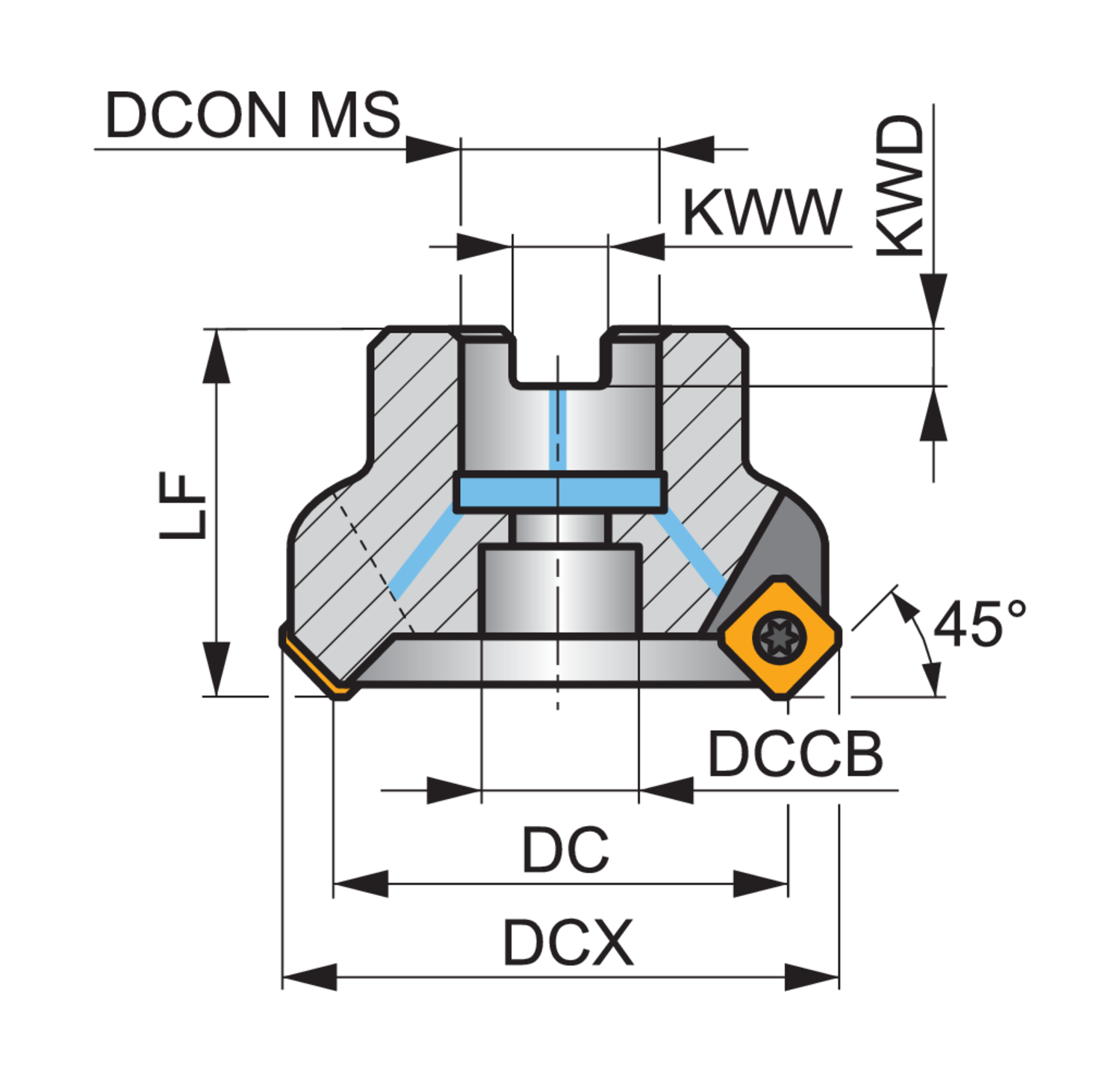

Cutting diameter maximum – millimeter (DCX): 63.5 mm
Cutting diameter – millimeter (DC): 50 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm

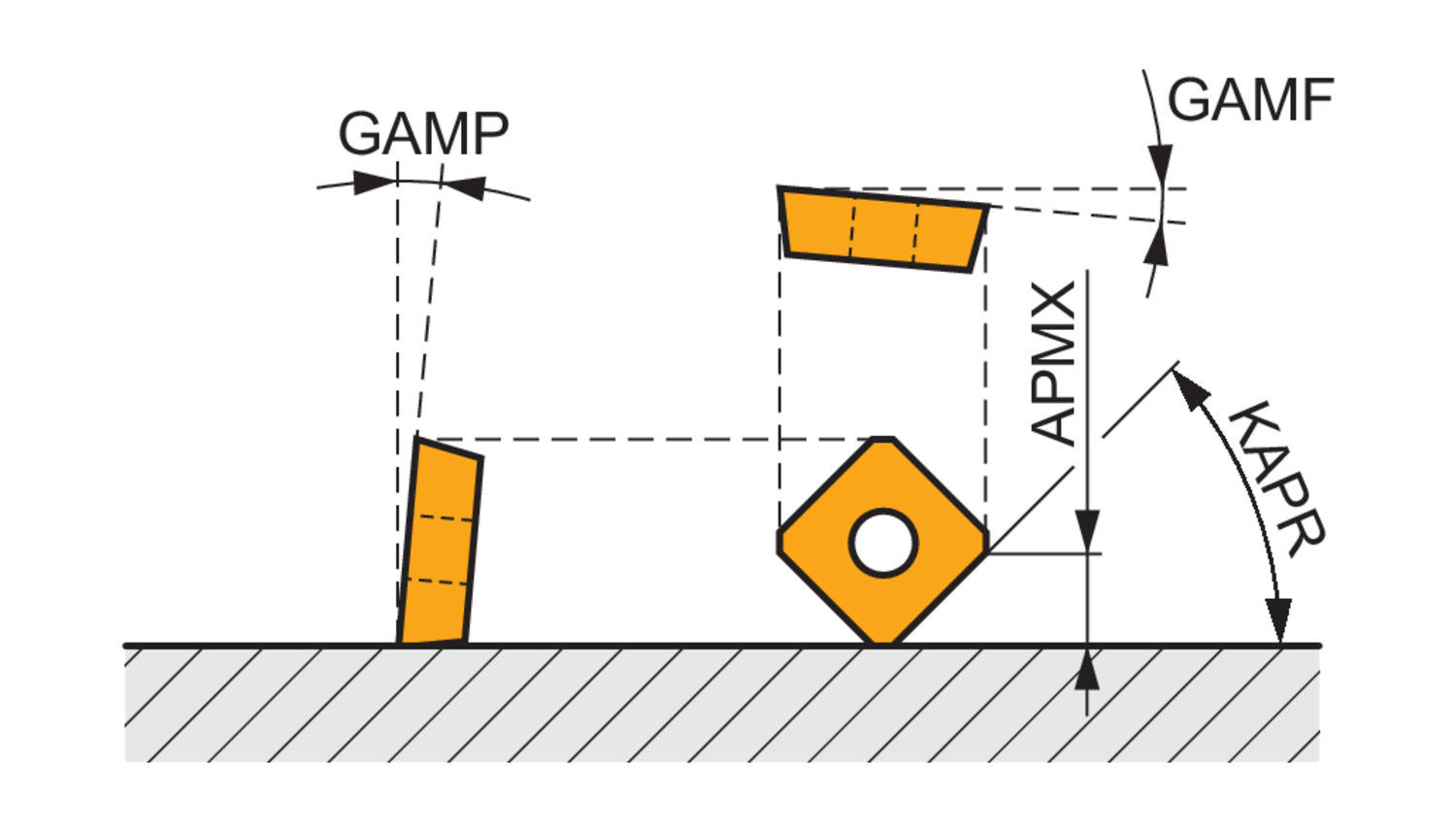

Radial rake angle (GAMF): -7
Axial rake angle (GAMP): 15
Peripheral effective cutting edge count (ZEFP): 4
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 12900
Net weight – grams: 514.7
Cutter Design: SSD13F
ISO: 50A04R-S45SD13F-C
