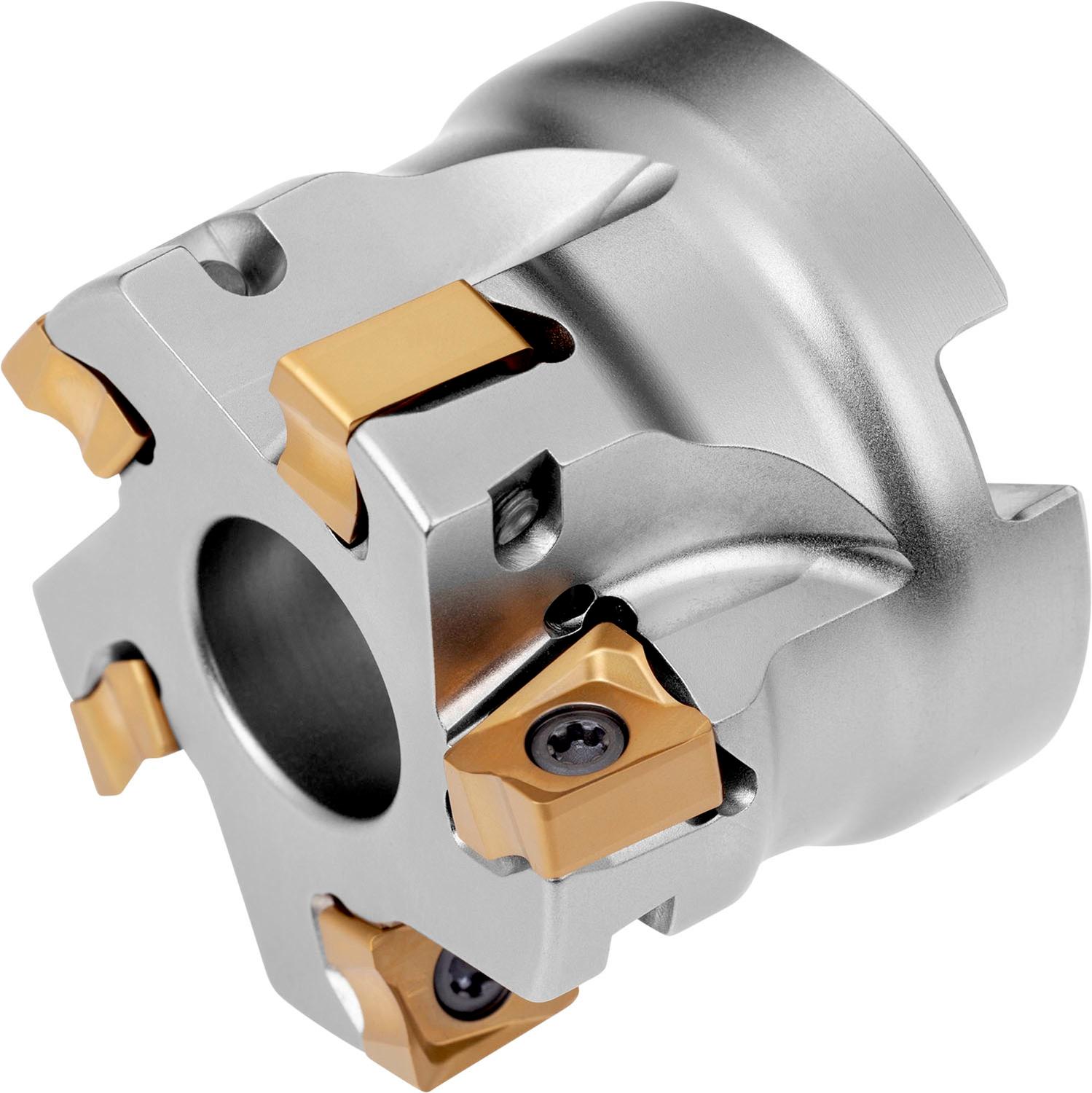

PRAMET 50A04R-S90LN12-C Milling cutters with clamping by screw

Product Code: 50A04R-S90LN12-C

$796.50$724.09 Ex. GST

Product Code: 50A04R-S90LN12-C SKU 50A04R-S90LN12-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double negative geometry which utilises 4 of LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.7733 kg
barcode
Additional Information

Description: Value
EAN number: 3603602956354
Product number (SAP): 86001138
Ordering code ANSI: 50A04R-S90LN12-C
Product Line: ECON LN
Gross weight – grams: 477.4
Cutting diameter – millimeter (DC): 50 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm
Radial rake angle (GAMF): -14.5
Axial rake angle (GAMP): -6
Peripheral effective cutting edge count (ZEFP): 4
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 13800
Net weight – grams: 474.8
Cutter Design: SLN12
Insert index count (NOI): 4
ISO: 50A04R-S90LN12-C

Brand

PRAMET
