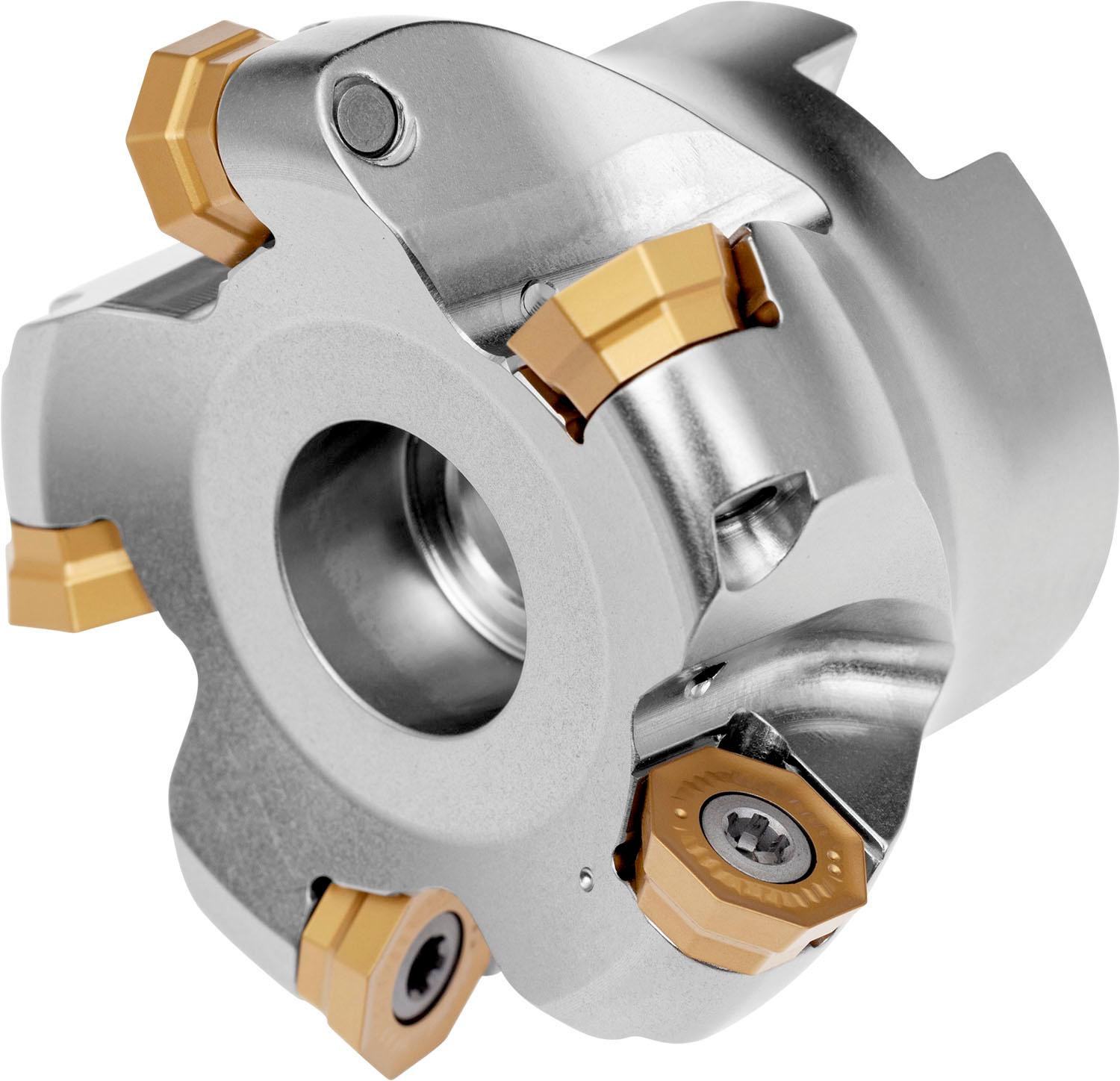

PRAMET 50A05R-S45OD05-C Milling cutters with clamping by screw

Product Code: 50A05R-S45OD05-C

$770.44$700.40 Ex. GST

Product Code: 50A05R-S45OD05-C SKU 50A05R-S45OD05-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Copy face mill with positve/negative geometry which utilises 5 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 42.6mm with 45 / 90° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm

Additional information

Weight 0.748 kg
barcode
Additional Information

Description: Value
EAN number: 3603603288034
Product number (SAP): 86031407
Ordering code ANSI: 50A05R-S45OD05-C
Gross weight – grams: 378
Cutting diameter maximum – millimeter (DCX): 50 mm
Cutting diameter – millimeter (DC): 42.6 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Tool cutting edge angle (KAPR): 45
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm
Radial rake angle (GAMF): -7
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 5
Rotational speed maximum (RPMX): 14100
Net weight – grams: 280
Cutter Design: SOD05
Insert index count (NOI): 5
ISO: 50A05R-S45OD05-C

Brand

PRAMET
