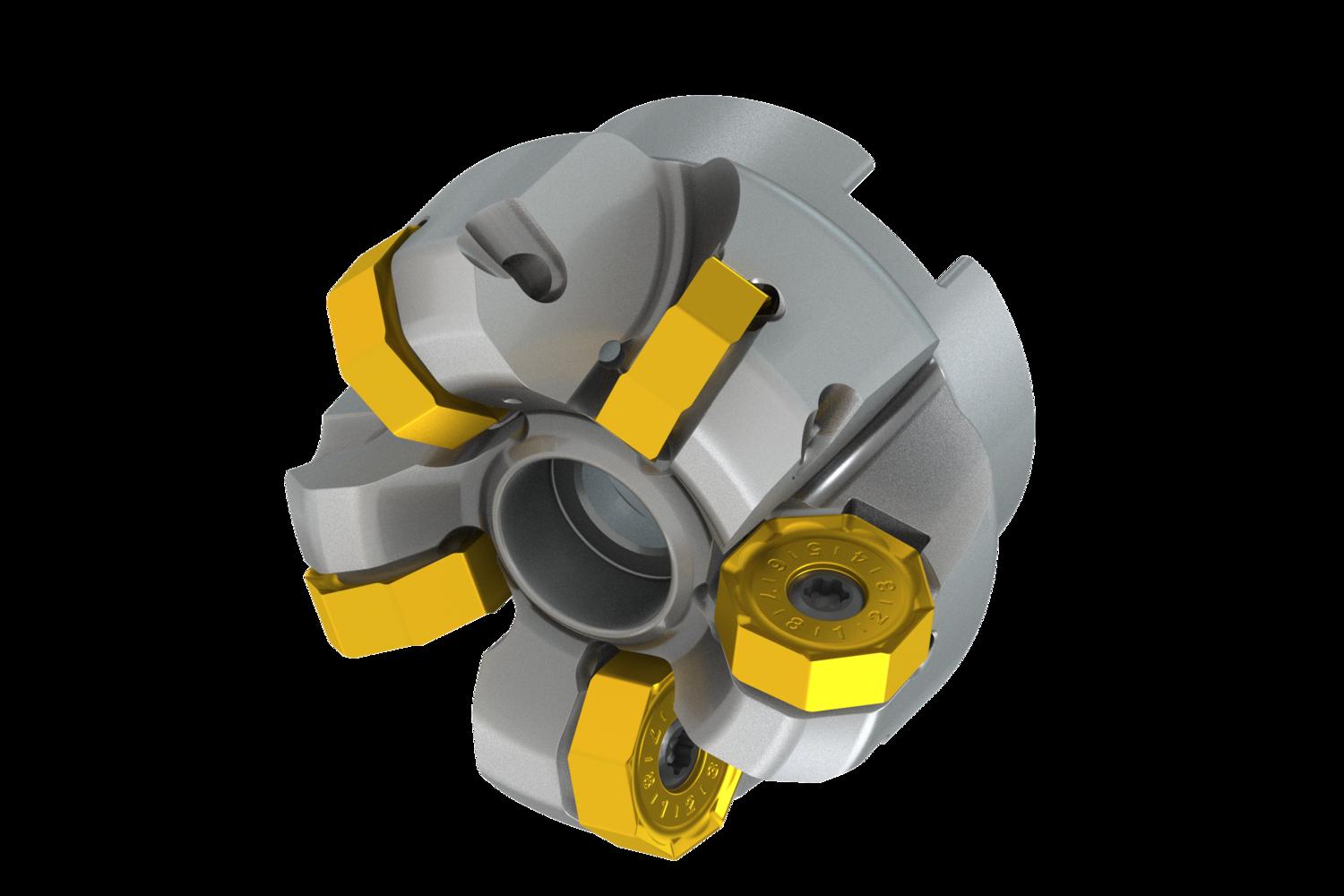

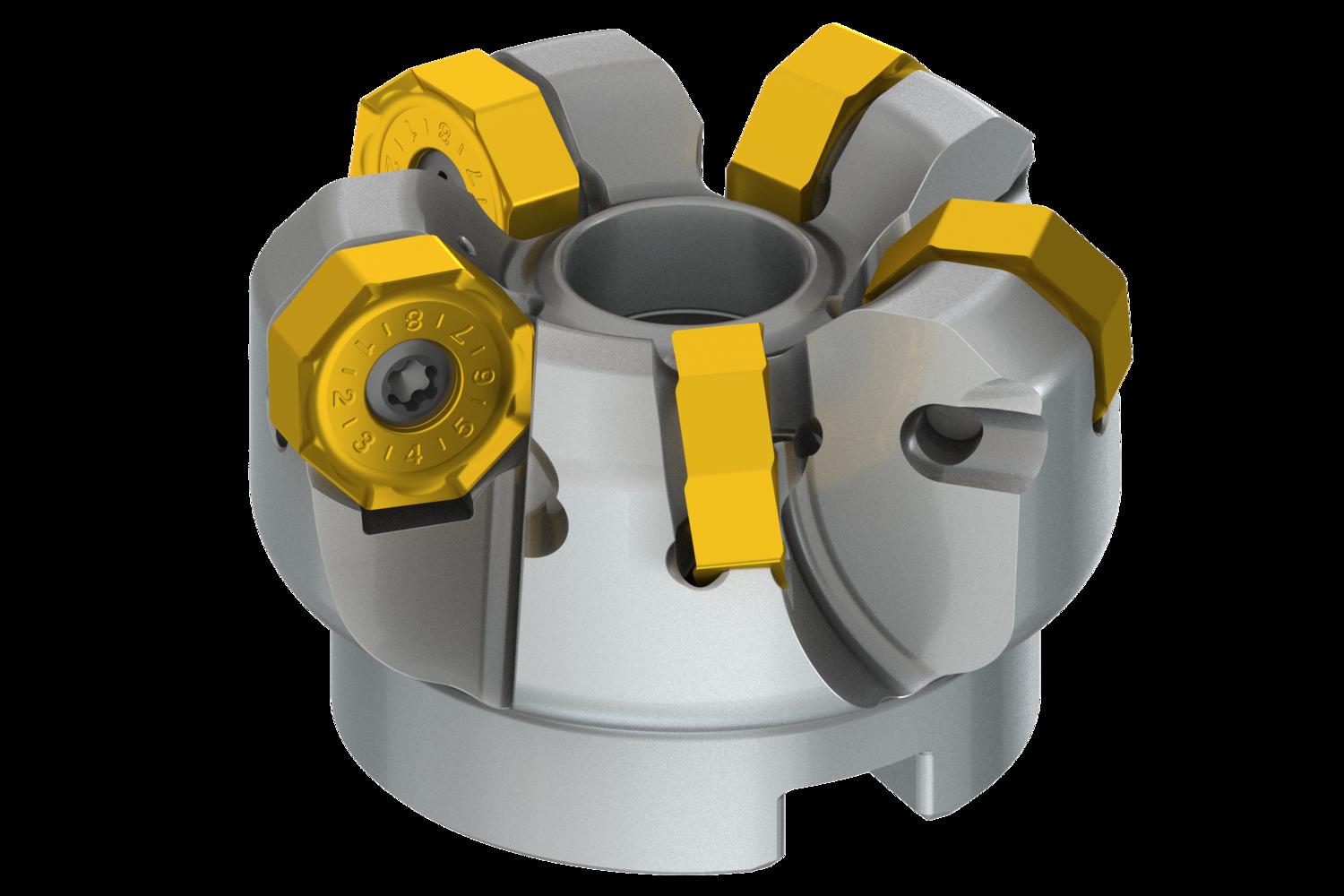

PRAMET 50A05R-S45ON06-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603604105279
Product number (SAP): 86042968
Ordering code ANSI: 50A05R-S45ON06-C
Gross weight – grams: 520.4
Cutting diameter – millimeter (DC): 50 mm
Cutting diameter maximum – millimeter (DCX): 60.8 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 16.5 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm
Radial rake angle (GAMF): -10
Axial rake angle (GAMP): -5
Peripheral effective cutting edge count (ZEFP): 5
Rotational speed maximum (RPMX): 9400
Net weight – grams: 390
Cutter Design: SON06C
ISO: 50A05R-S45ON06-C
