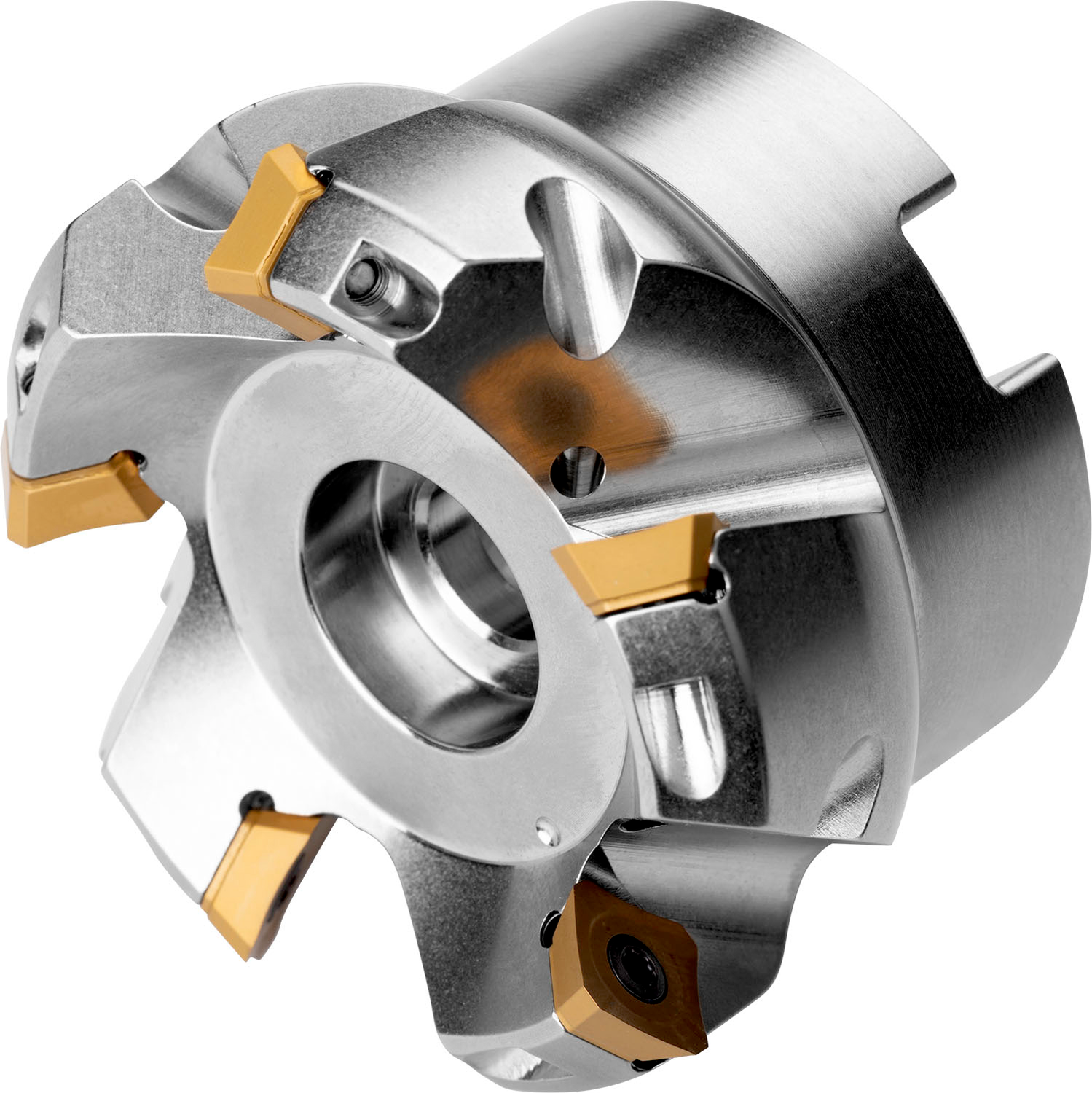

PRAMET 50A05R-S45SE09F-C Milling cutters with clamping by screw

Product Code: 50A05R-S45SE09F-C

$848.62$771.47 Ex. GST

Product Code: 50A05R-S45SE09F-C SKU 50A05R-S45SE09F-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mill with positve/negative geometry which utilises 5 of SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 50 to maximum 59.6mm with 45° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 4.5mm

Additional information

Weight 0.8239 kg
barcode
Additional Information

Description: Value
EAN number: 3603602970299
Product number (SAP): 86007578
Ordering code ANSI: 50A05R-S45SE09F-C
Gross weight – grams: 547.9
Cutting diameter – millimeter (DC): 50 mm
Cutting diameter maximum – millimeter (DCX): 59.6 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.4 mm
Radial rake angle (GAMF): -5
Axial rake angle (GAMP): 20
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 15600
Net weight – grams: 547.9
Cutter Design: SSE09
Insert index count (NOI): 5
ISO: 50A05R-S45SE09F-C

Brand

PRAMET
