Description: Value
EAN number: 3603603844483
Product number (SAP): 86037880
Ordering code ANSI: 50A05R-S90TN16-C
Product Line: ECON TN
Gross weight – grams: 450

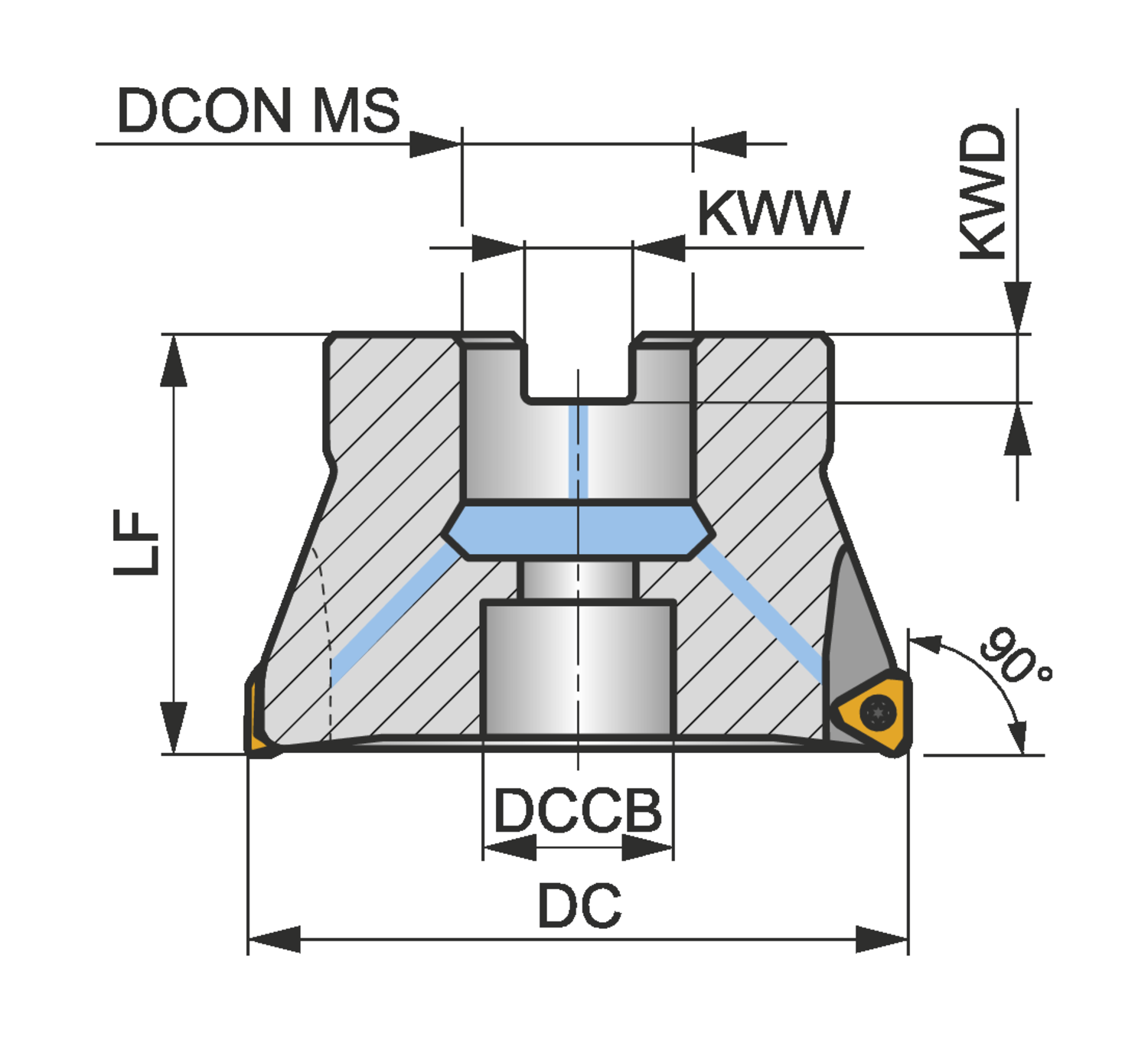

Cutting diameter – millimeter (DC): 50 mm
Overall length – millimeter (OAL): 40 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18.1 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm

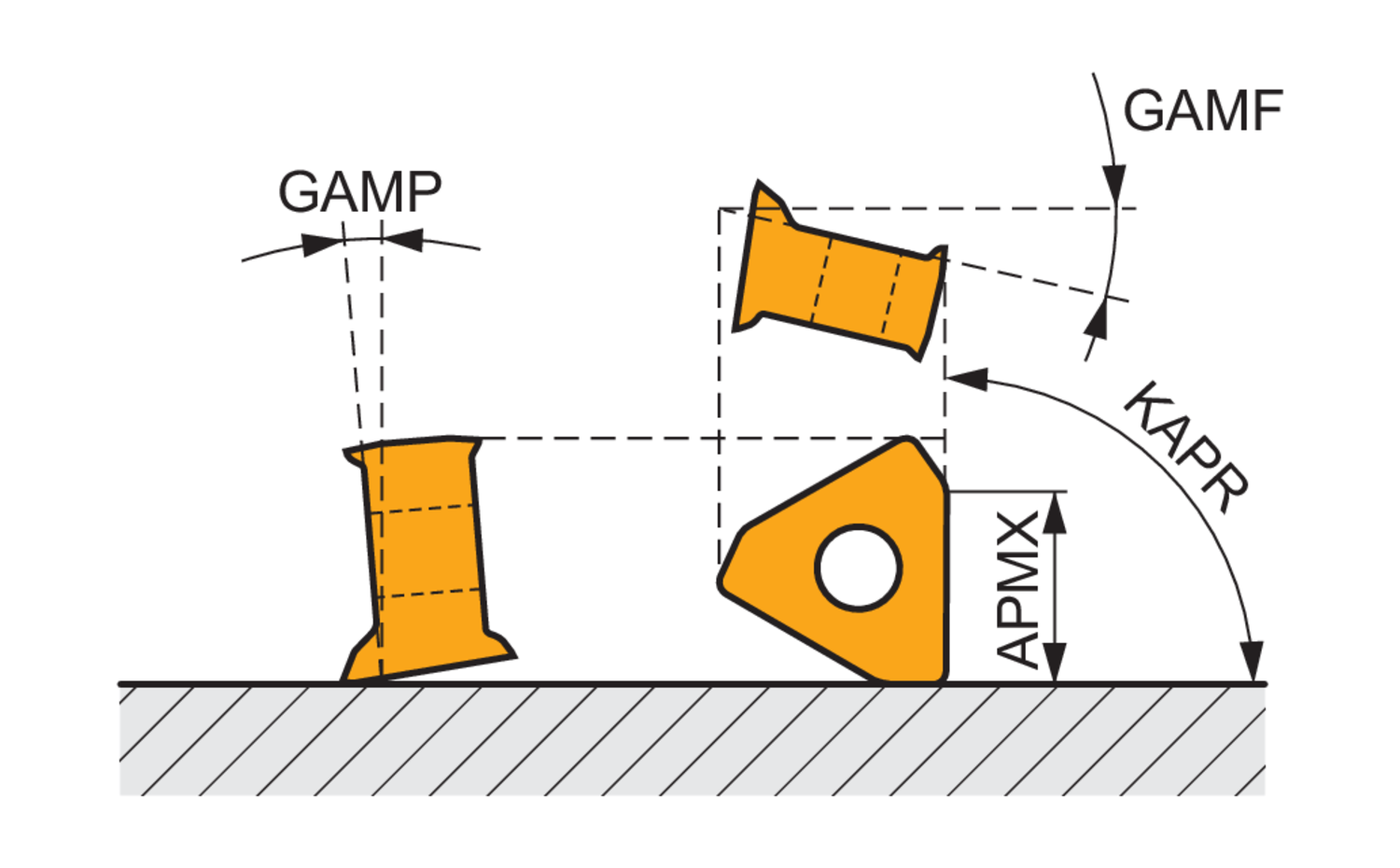

Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 14000
Net weight – grams: 323
Cutter Design: STN16
Insert index count (NOI): 5
ISO: 50A05R-S90TN16-C
|
