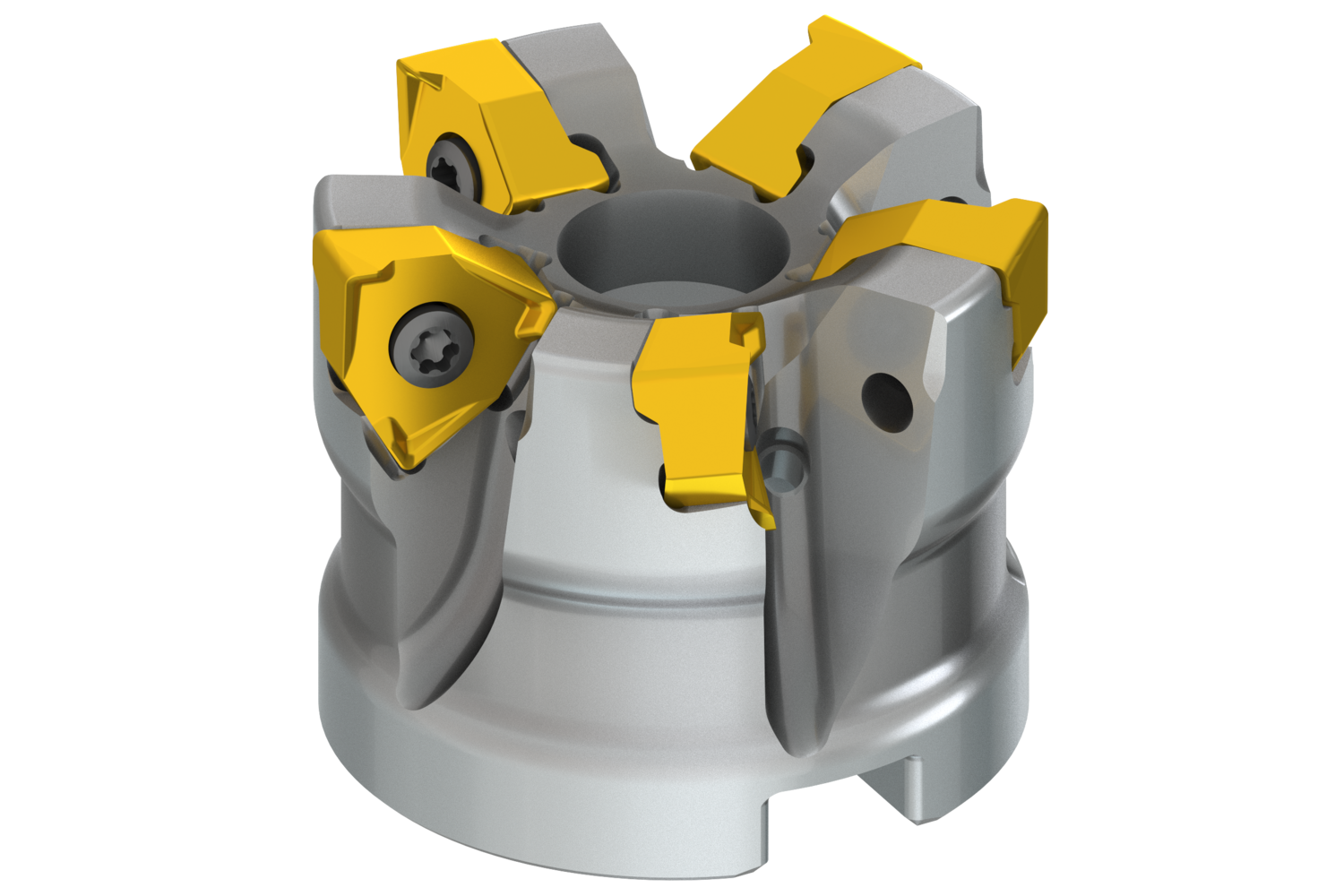

PRAMET 50A05R-S90XN08-C Milling Cutters

Description: Value
EAN number: 3603604144193
Product number (SAP): 86043804
Ordering code ANSI: 50A05R-S90XN08-C
Gross weight – grams: 393.6

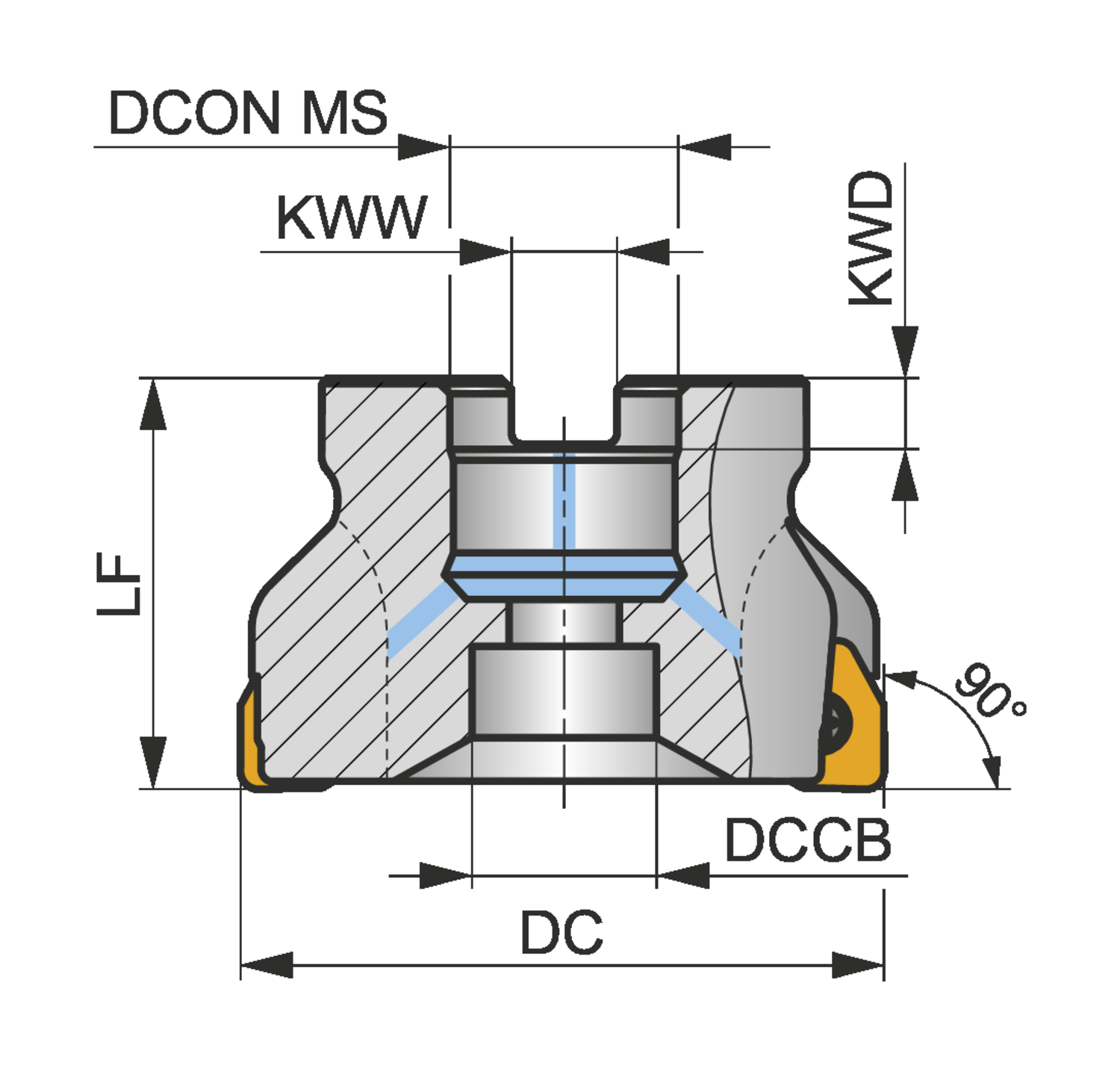

Cutting diameter – millimeter (DC): 50 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm
Radial rake angle (GAMF): -13.2
Axial rake angle (GAMP): -6.9
Peripheral effective cutting edge count (ZEFP): 5
Rotational speed maximum (RPMX): 10600
Net weight – grams: 393.6
Cutter Design: SXN08
ISO: 50A05R-S90XN08-C
