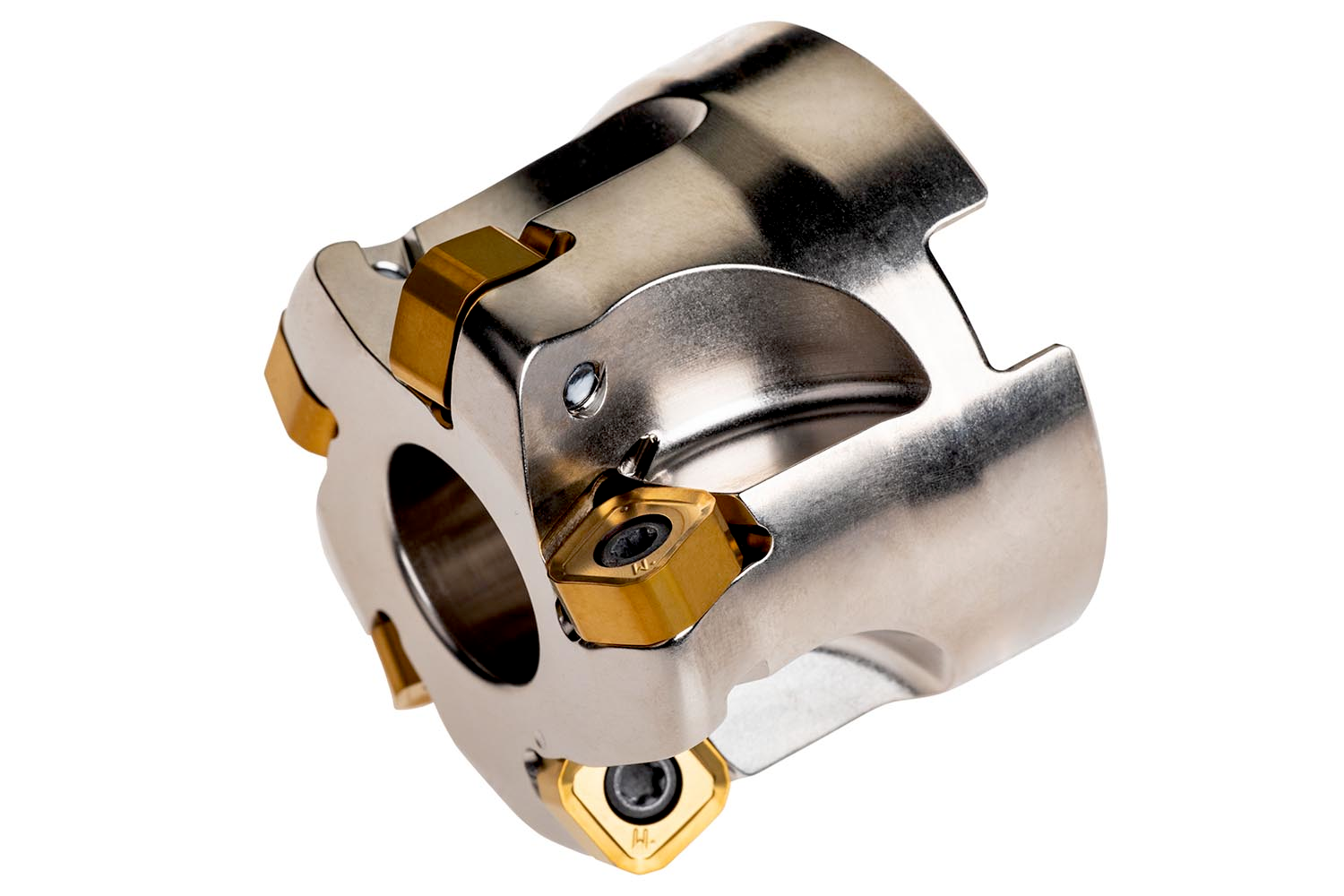

PRAMET 50A05R-SMOSN11-C

Description: Value
EAN Number: 3603603672352 Product Number (SAP): 86035424 Ordering Code ANSI: 50A05R-SMOSN11-C Gross Weight – Grams: 436.5 Cutting Diameter Maximum – Millimeter (DCX): 50 mm Cutting Diameter – Millimeter (DC): 36.1 mm Connection Diameter – Millimeter (DCON MS): 22 mm Counterbore Diameter Connection Bore – Millimeter (DCCB): 18.1 mm Functional Length – Millimeter (LF): 40 mm Keyway Width – Millimeter (KWW): 10.4 mm Keyway Depth – Millimeter (KWD): 6.3 mm Radial Rake Angle (GAMF): -10 Axial Rake Angle (GAMP): -10 Peripheral Effective Cutting Edge Count (ZEFP): 5 Cutting Pitch Differential (CPDF): Yes Rotational Speed Maximum (RPMX): 14000 Net Weight – Grams: 310 Cutter Design: SSN11 Insert Index Count (NOI): 5 ISO: 50A05R-SMOSN11-C
