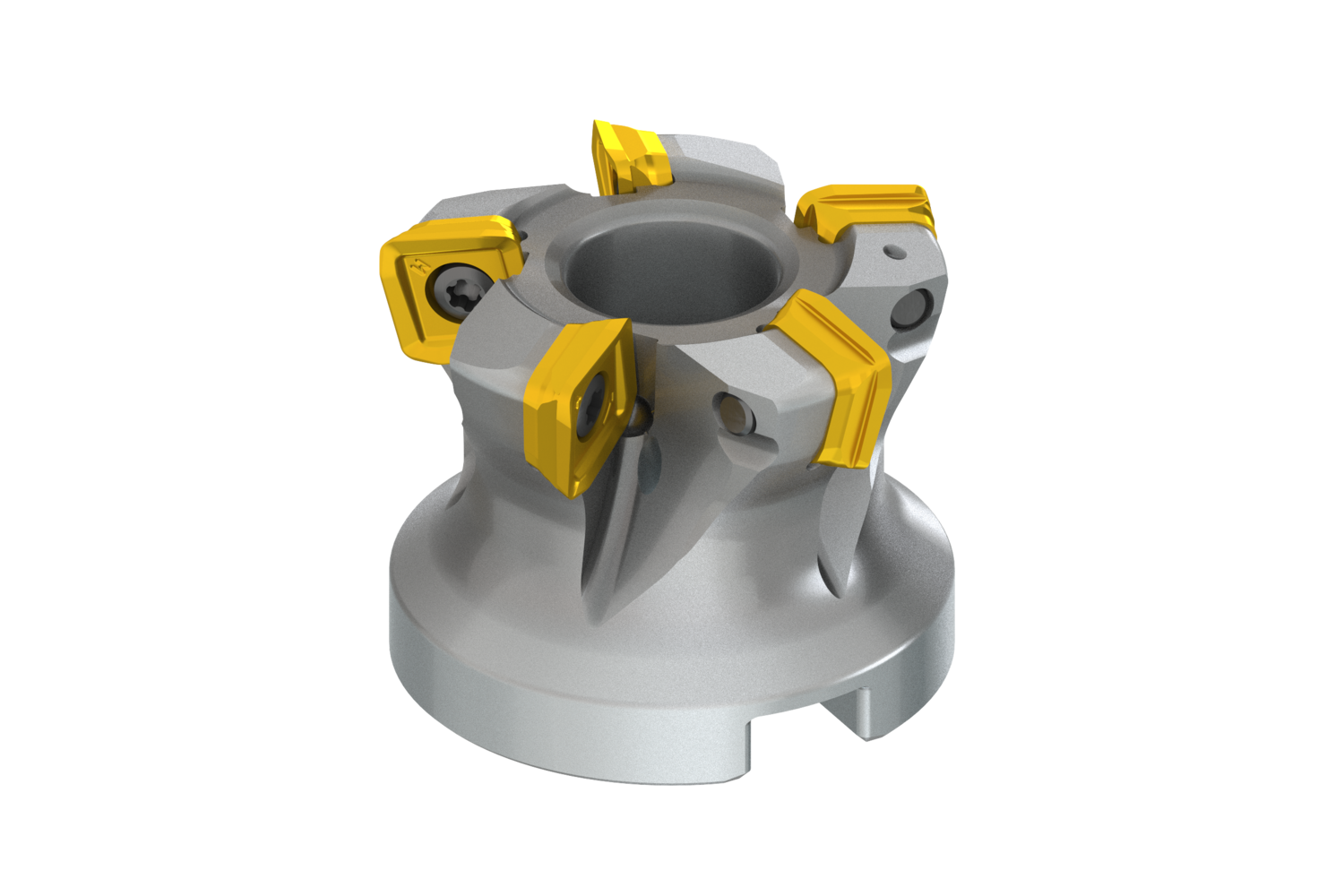

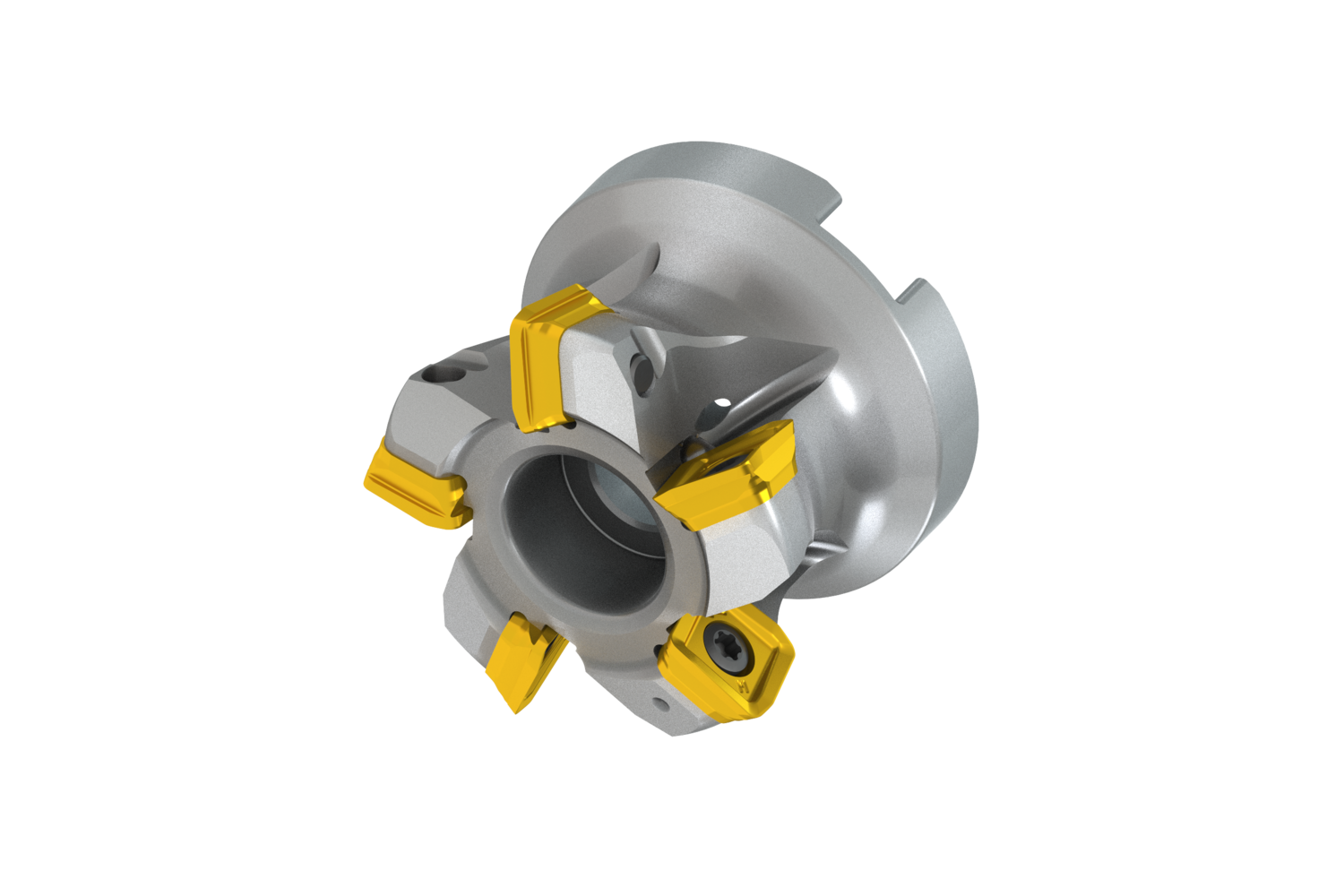

PRAMET 50A05R-SMOSO12-C

Description: Value
EAN number: 3603604263221
Product number (SAP): 86045457
Ordering code ANSI: 50A05R-SMOSO12-C
Gross weight – grams: 344.2

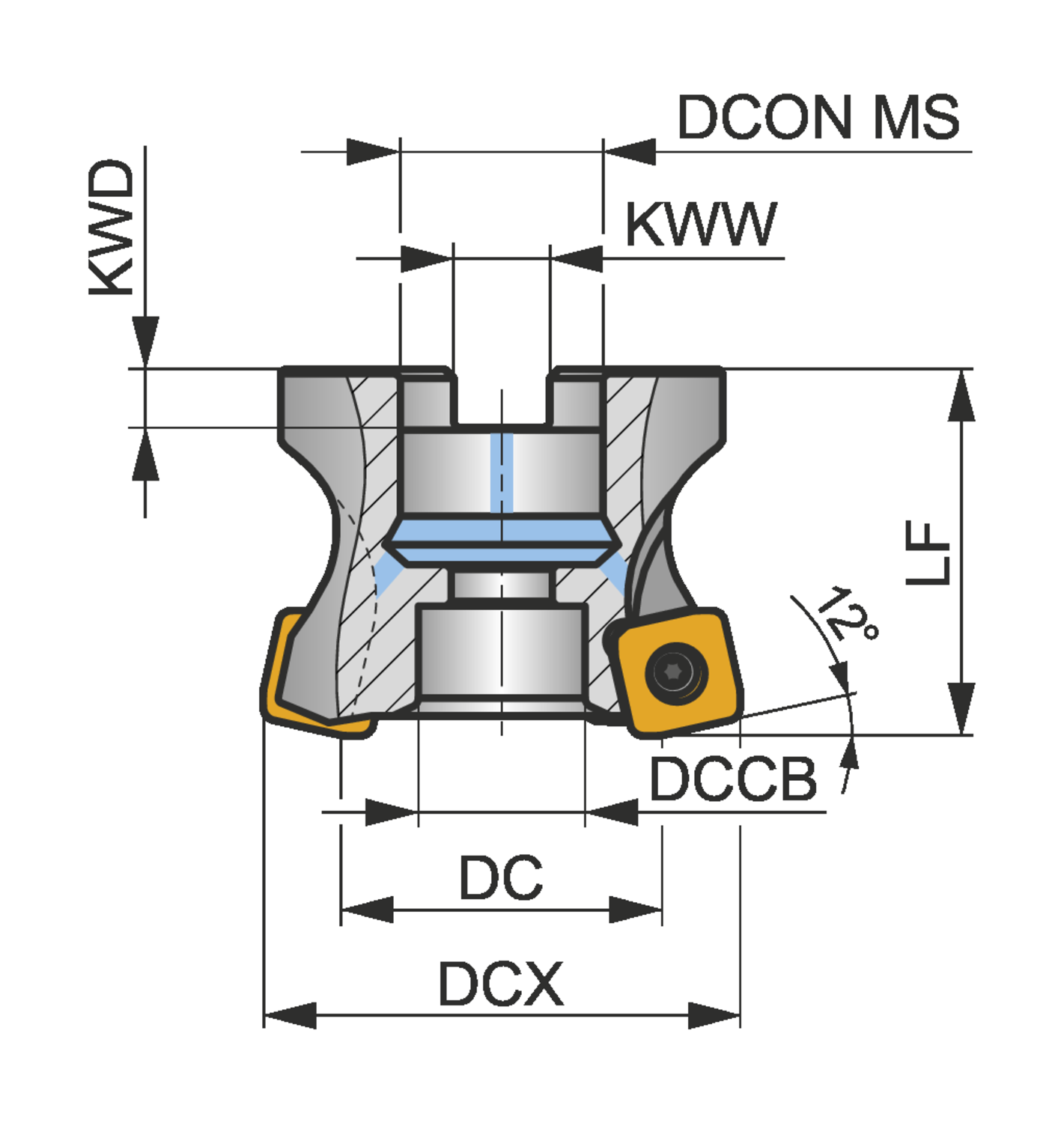

Cutting diameter – millimeter (DC): 32.3 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18.1 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm

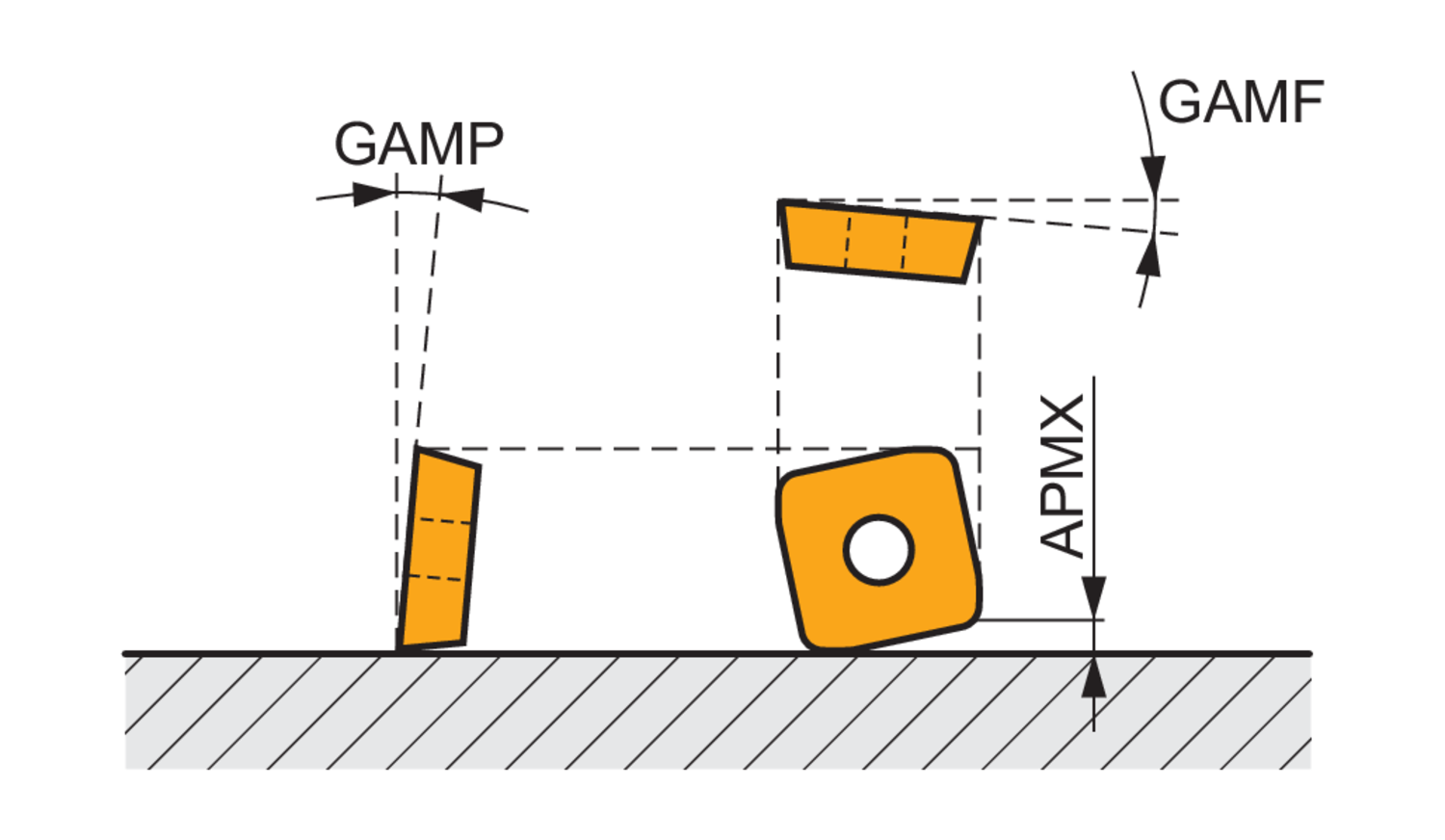

Radial rake angle (GAMF): -5
Axial rake angle (GAMP): 5
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 13100
Net weight – grams: 230
Cutter Design: SSO12
ISO: 50A05R-SMOSO12-C
