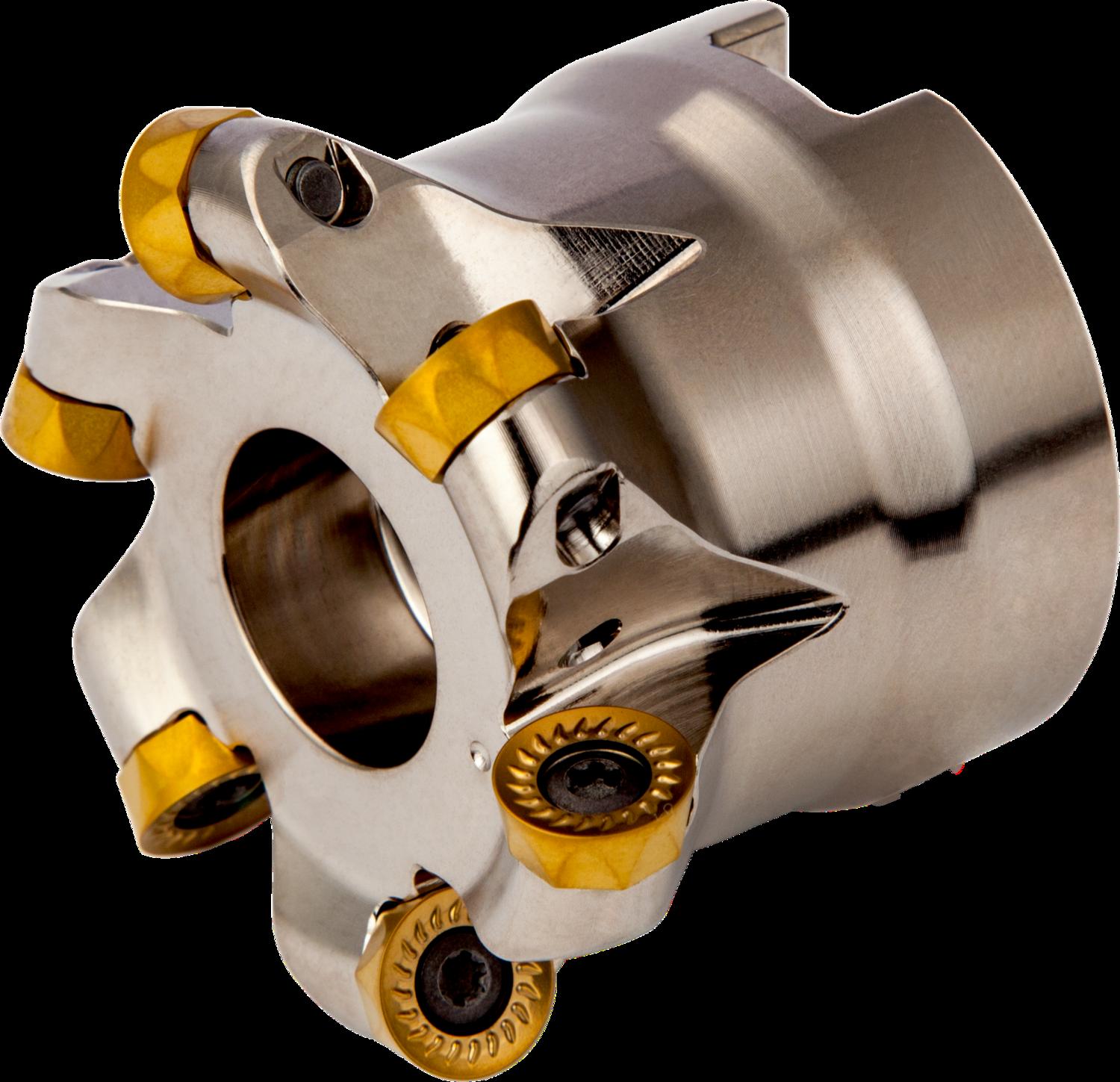

PRAMET 50A06R-SMORC10-C Milling cutters for D&M

Description: Value
EAN number: 3603603373037
Product number (SAP): 86033363
Ordering code ANSI: 50A06R-SMORC10-C
Gross weight – grams: 331.6
Cutting diameter maximum – millimeter (DCX): 50 mm
Cutting diameter – millimeter (DC): 40 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm
Radial rake angle (GAMF): -2
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 6
Rotational speed maximum (RPMX): 14800
Net weight – grams: 331.6
Cutter Design: SRC10
Insert index count (NOI): 6
ISO: 50A06R-SMORC10-C
