PRAMET 50A08R-SMOBN10-C Carbide insert

Product Code: 50A08R-SMOBN10-C

$941.52$855.93 Ex. GST

Product Code: 50A08R-SMOBN10-C SKU 50A08R-SMOBN10-C Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

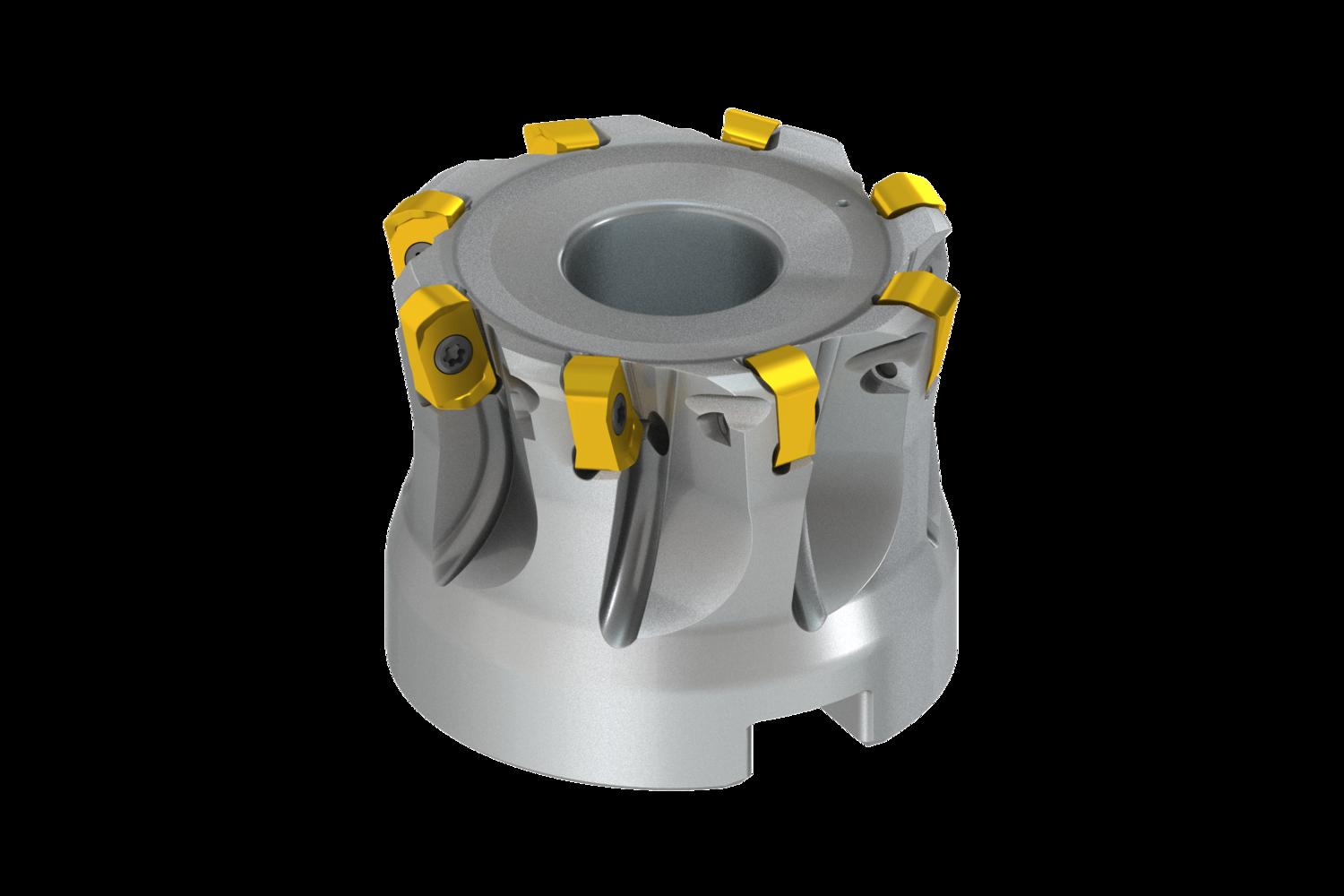

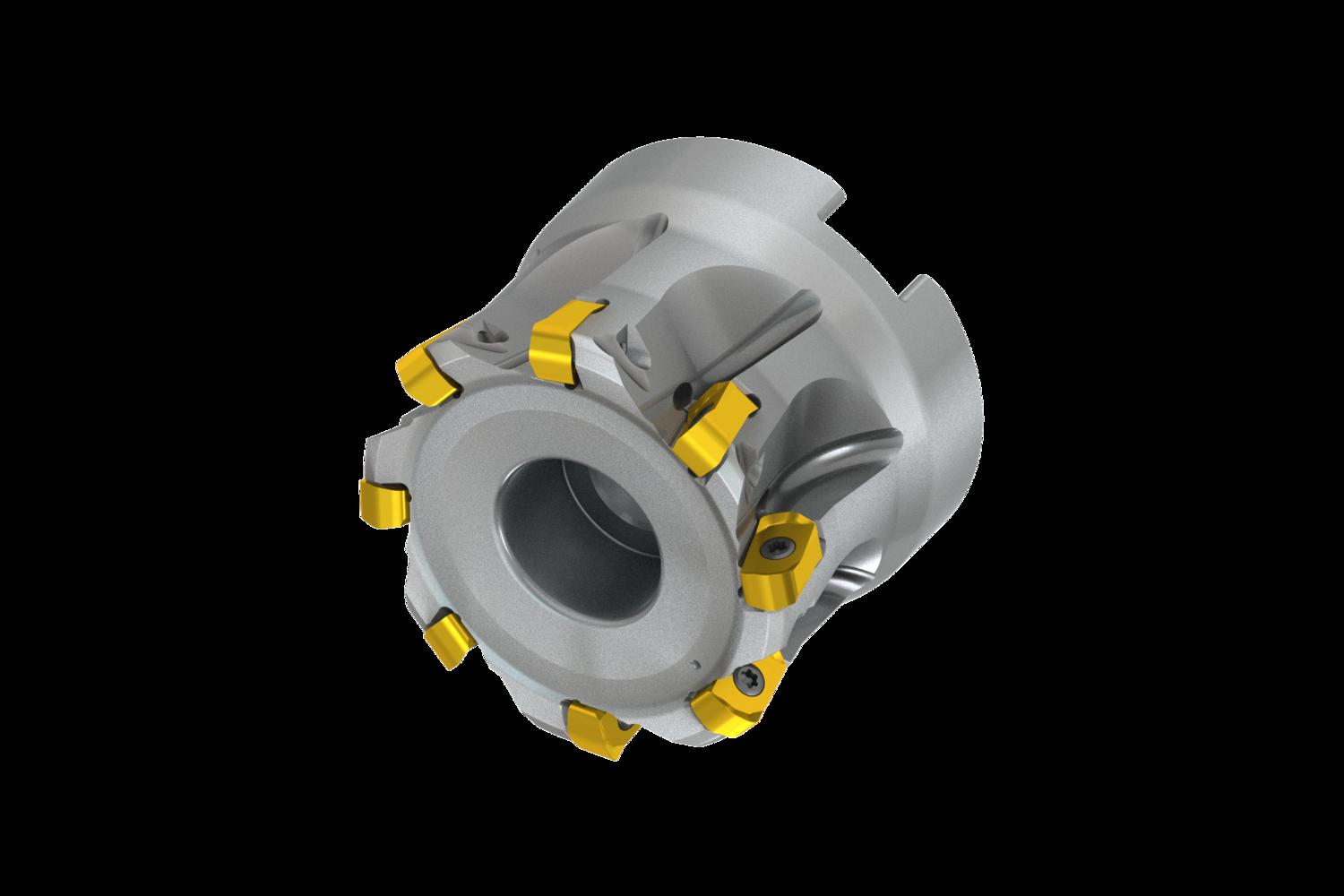

High feed cutter with double negative geometry which utilises 8 of BNGX 10T3.. inserts, cutting diameter 45mm to maximum 50mm with 29° approach angle and 22mm connection bore according to DIN 8030-A, 40mm functional and, through coolant and differential pitch for face milling, shallow shoulder milling, plunge milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 1mm

Additional information

Weight 0.3400 kg
barcode

3603604031301

Additional Information

Description: Value
EAN number: 3603604031301
Product number (SAP): 86040499
Ordering code ANSI: 50A08R-SMOBN10-C
Gross weight – grams: 469.1

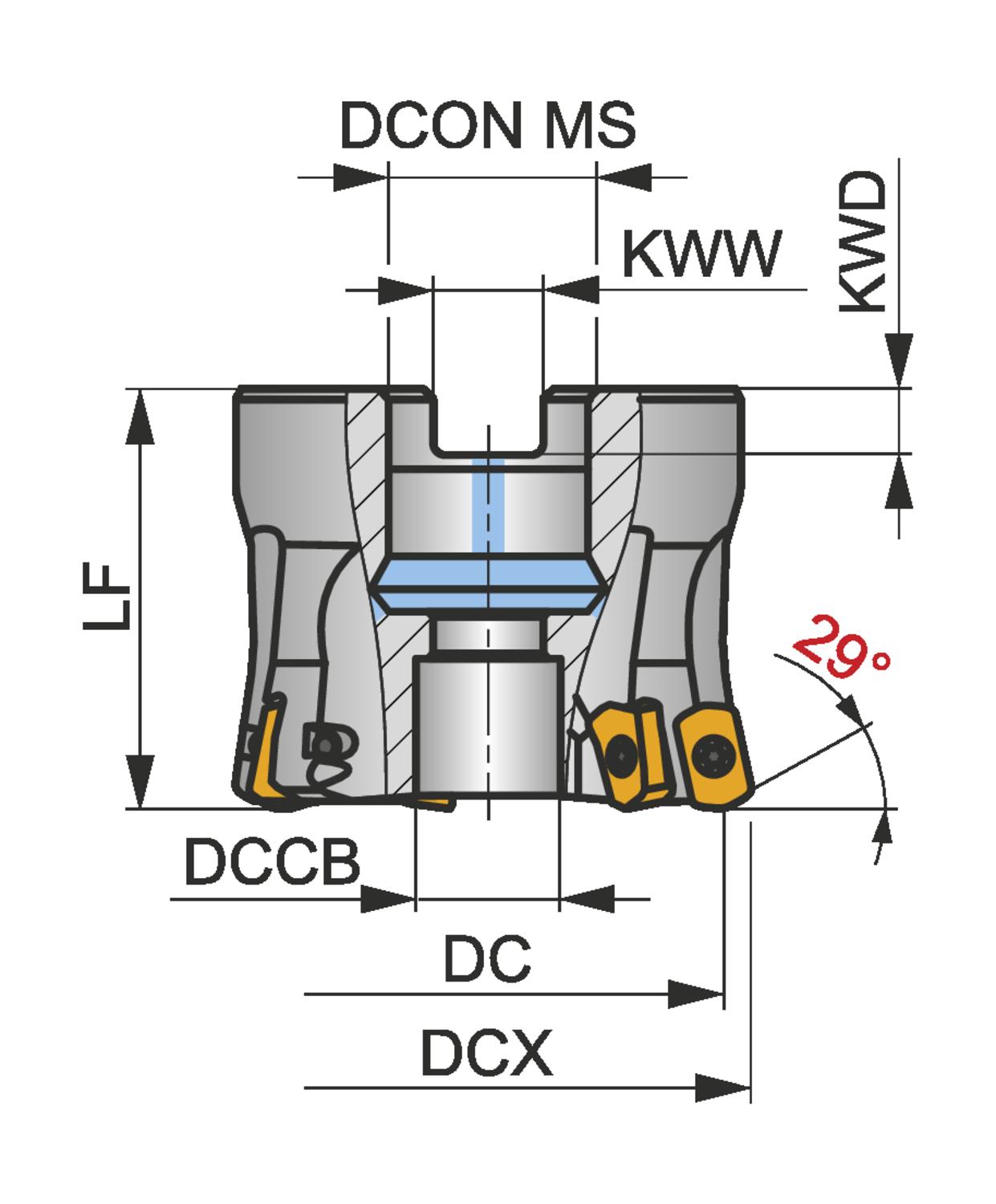

Cutting diameter maximum – millimeter (DCX): 50 mm
Cutting diameter – millimeter (DC): 45 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18.1 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm

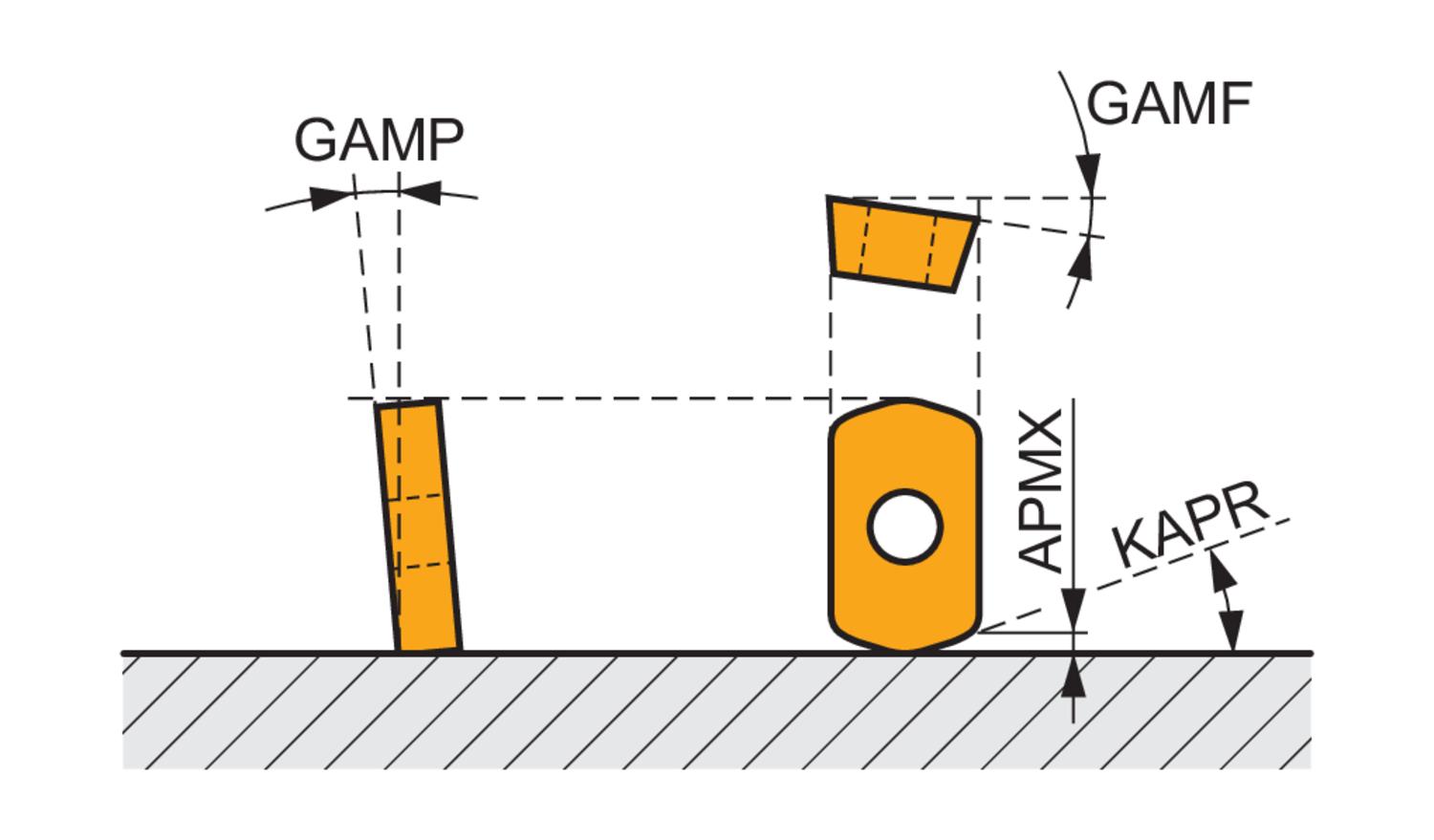

Radial rake angle (GAMF): -6
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 17500
Net weight – grams: 340
Cutter Design: SBN10
ISO: 50A08R-SMOBN10-C
