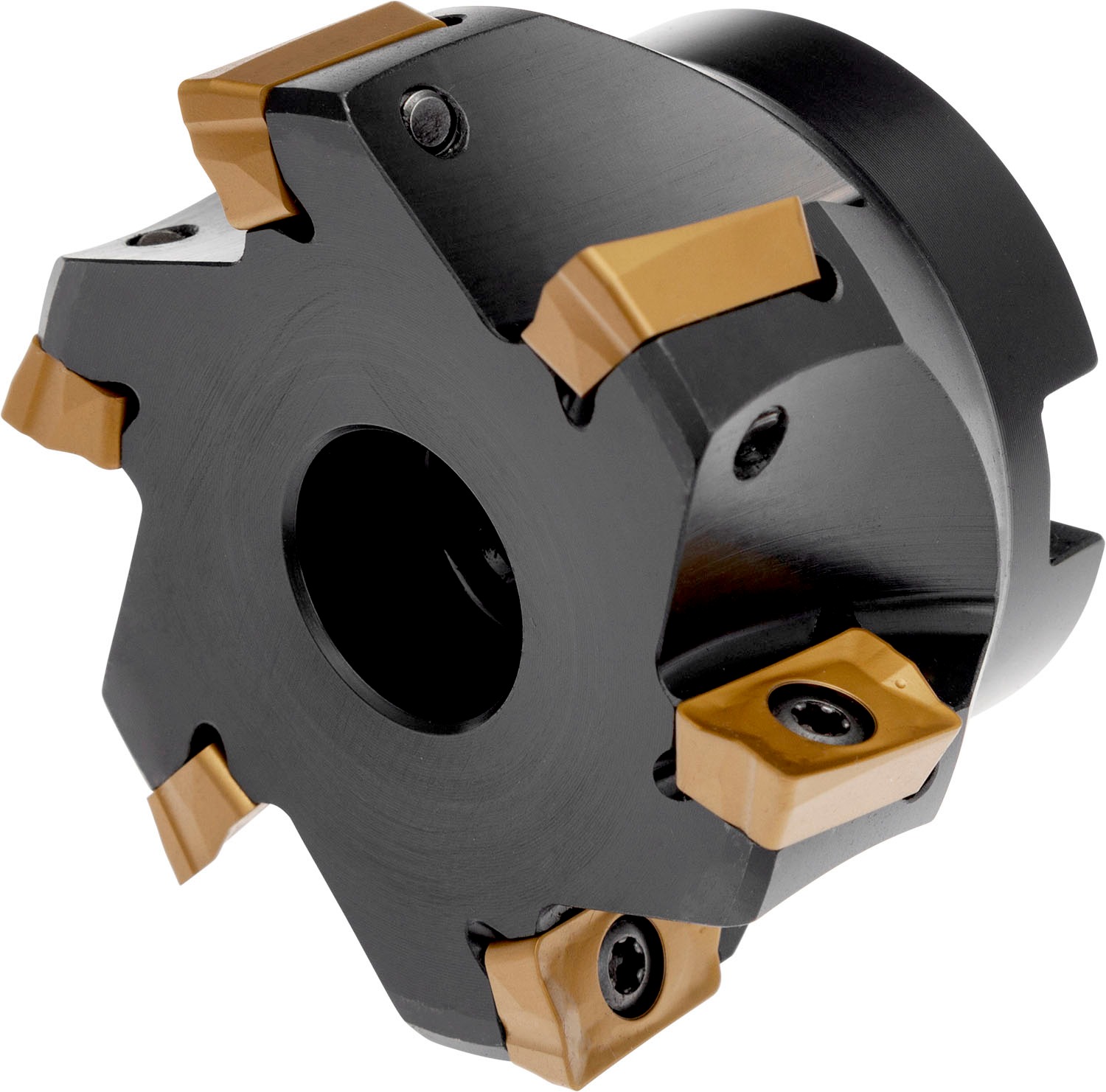

PRAMET 50A5R-S90AP16D Milling cutters with clamping by screw

Product Code: 50A5R-S90AP16D

$833.89$758.08 Ex. GST

Product Code: 50A5R-S90AP16D SKU 50A5R-S90AP16D Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 5 of APKT 1604.. or APET 1604.. single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm

Additional information

Weight 0.8096 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602923912
Product number (SAP): 84001482
Ordering code ANSI: 50A5R-S90AP16D
Gross weight – grams: 362
Cutting diameter – millimeter (DC): 50 mm
Overall length – millimeter (OAL): 40 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 6
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 11800
Net weight – grams: 351.4
Cutter Design: SAP16D
Insert index count (NOI): 5
ISO: 50A5R-S90AP16D

Brand

PRAMET
