PRAMET 50J4R124X50-SSAP55+21 Milling cutters with clamping by screw

Product Code: 50J4R124X50-SSAP55+21

$2,418.96$2,199.05 Ex. GST

Product Code: 50J4R124X50-SSAP55+21 SKU 50J4R124X50-SSAP55+21 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

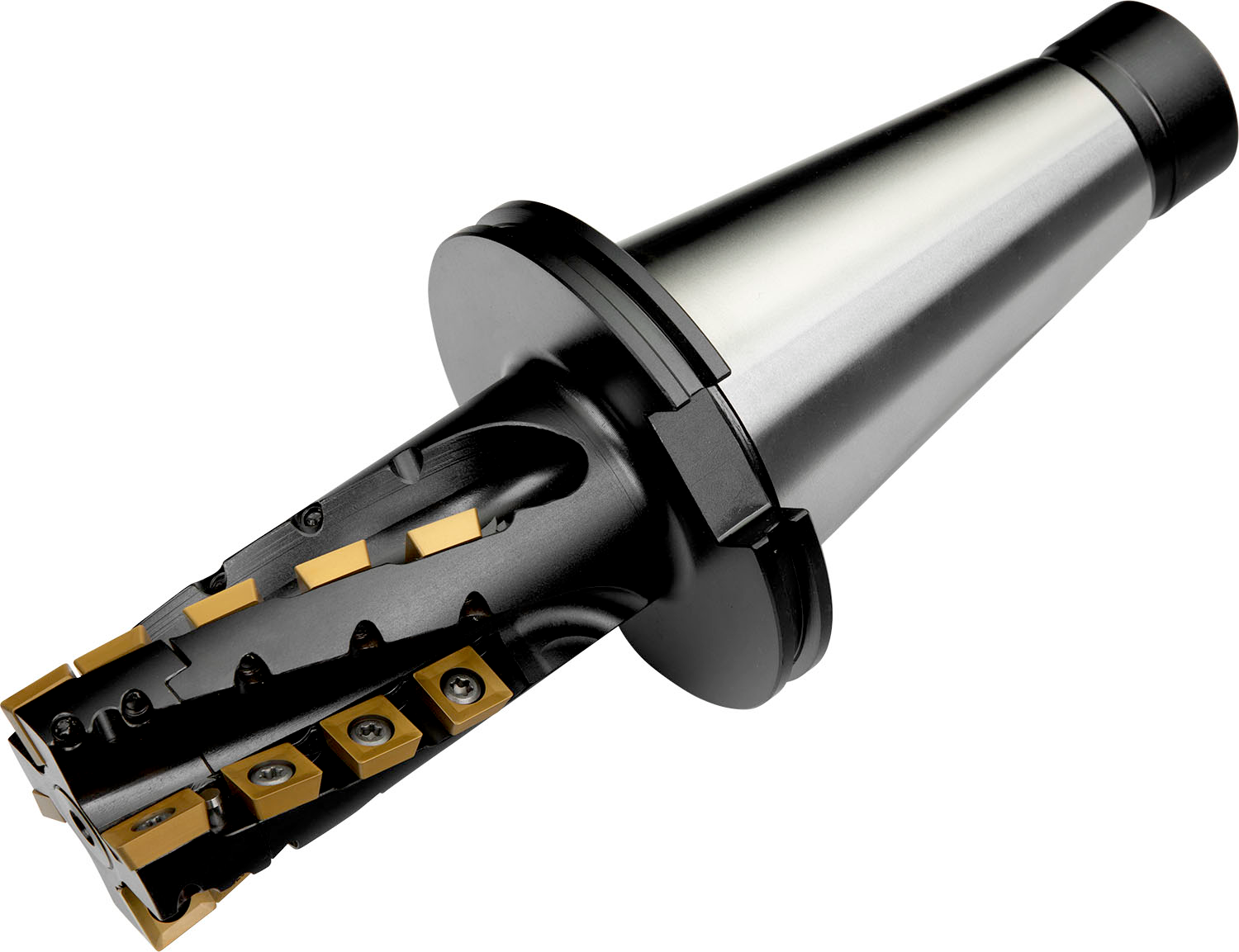

Shoulder mill with extended flute and exchangeable head, with positve/negative geometry which utilises 2 of APE. 1504.. and 16 SPE. 1204.. single-sided inserts, cutting diameter 50mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 76mm functional and 251mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 76mm

Additional information

Weight 2.3485 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602931733
Product number (SAP): 84003223
Ordering code ANSI: 50J4R124X50-SSAP55+21
Gross weight – grams: 4430
Cutting diameter – millimeter (DC): 50 mm
Overall length – millimeter (OAL): 251 mm
Depth of cut maximum – millimeter (APMX): 76 mm
Functional length – millimeter (LF): 124 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 7
Connection size code machine side (CZC MS): 50
Flute count (NOF): 4
Number of AP inserts for helical mills: 2
Number of SP inserts for helical mill: 16
Rotational speed maximum (RPMX): 9500
Net weight – grams: 4430
Insert index count (NOI): 18
ISO: 50J4R124X50-SSAP55+21

Brand

PRAMET
