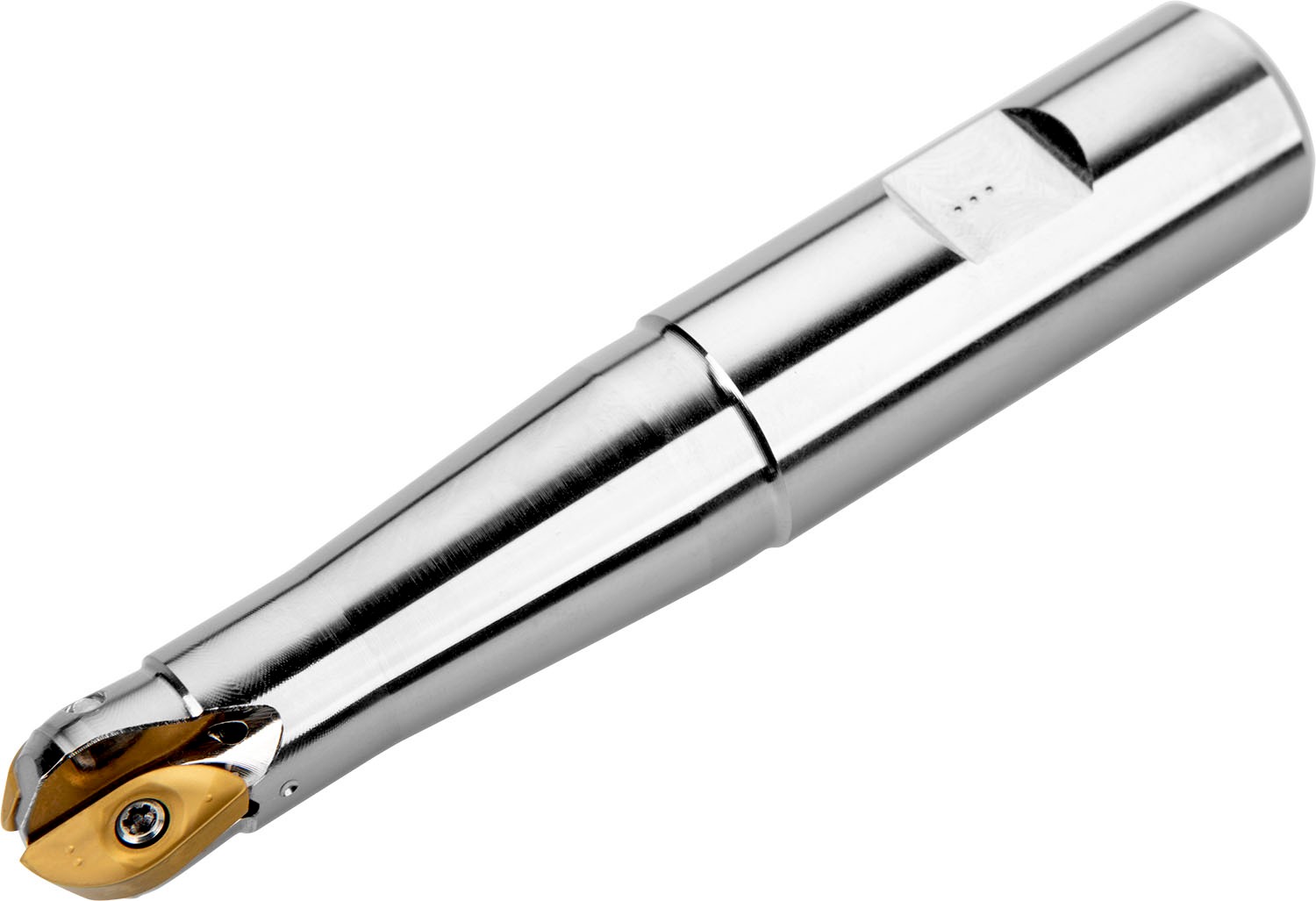

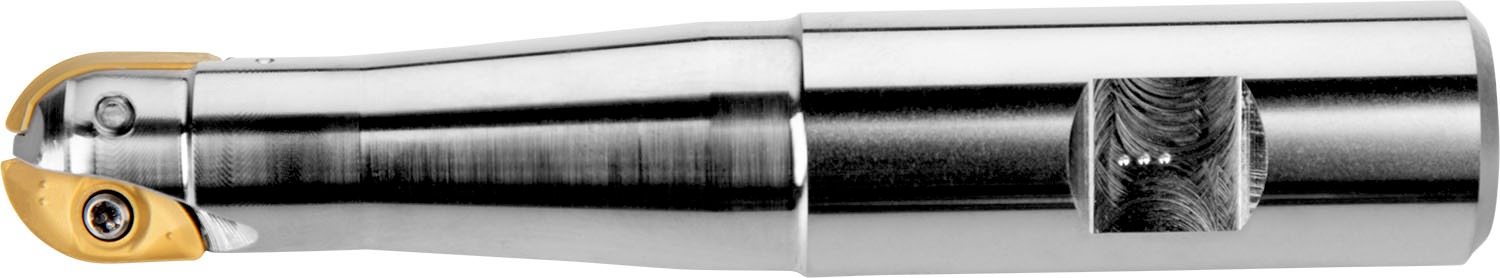

PRAMET 50L2R100B50-SZP50-C Milling cutters for D&M

Description: Value
EAN number: 3603602969910
Product number (SAP): 86007493
Ordering code ANSI: 50L2R100B50-SZP50-C
Gross weight – grams: 2255.7

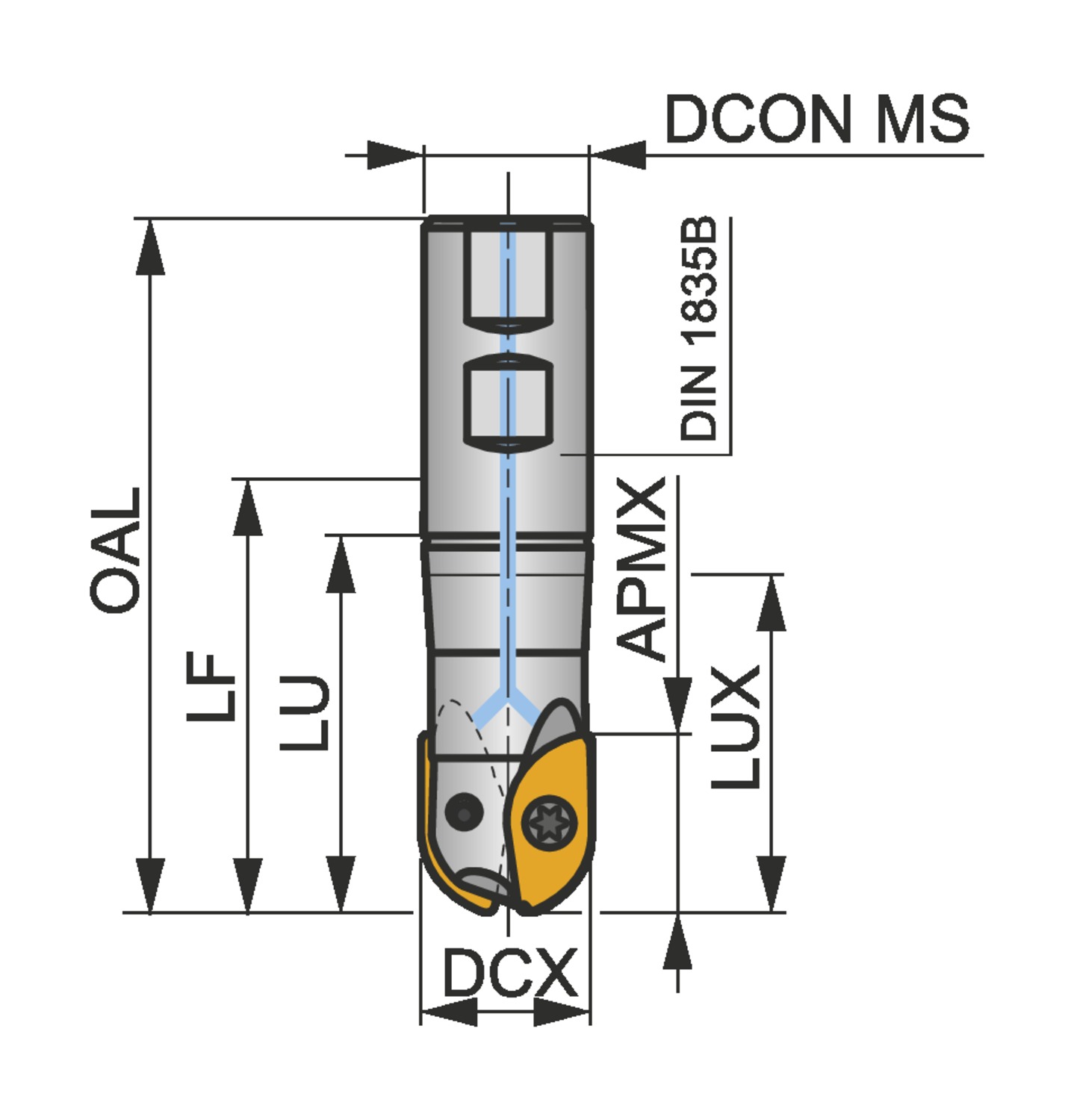

Cutting diameter maximum – millimeter (DCX): 50 mm
Overall length – millimeter (OAL): 181 mm
Connection diameter – millimeter (DCON MS): 50 mm
Usable Length – millimeter (LU): 100 mm
Functional length – millimeter (LF): 136.5 mm
Connection size code machine side (CZC MS): –

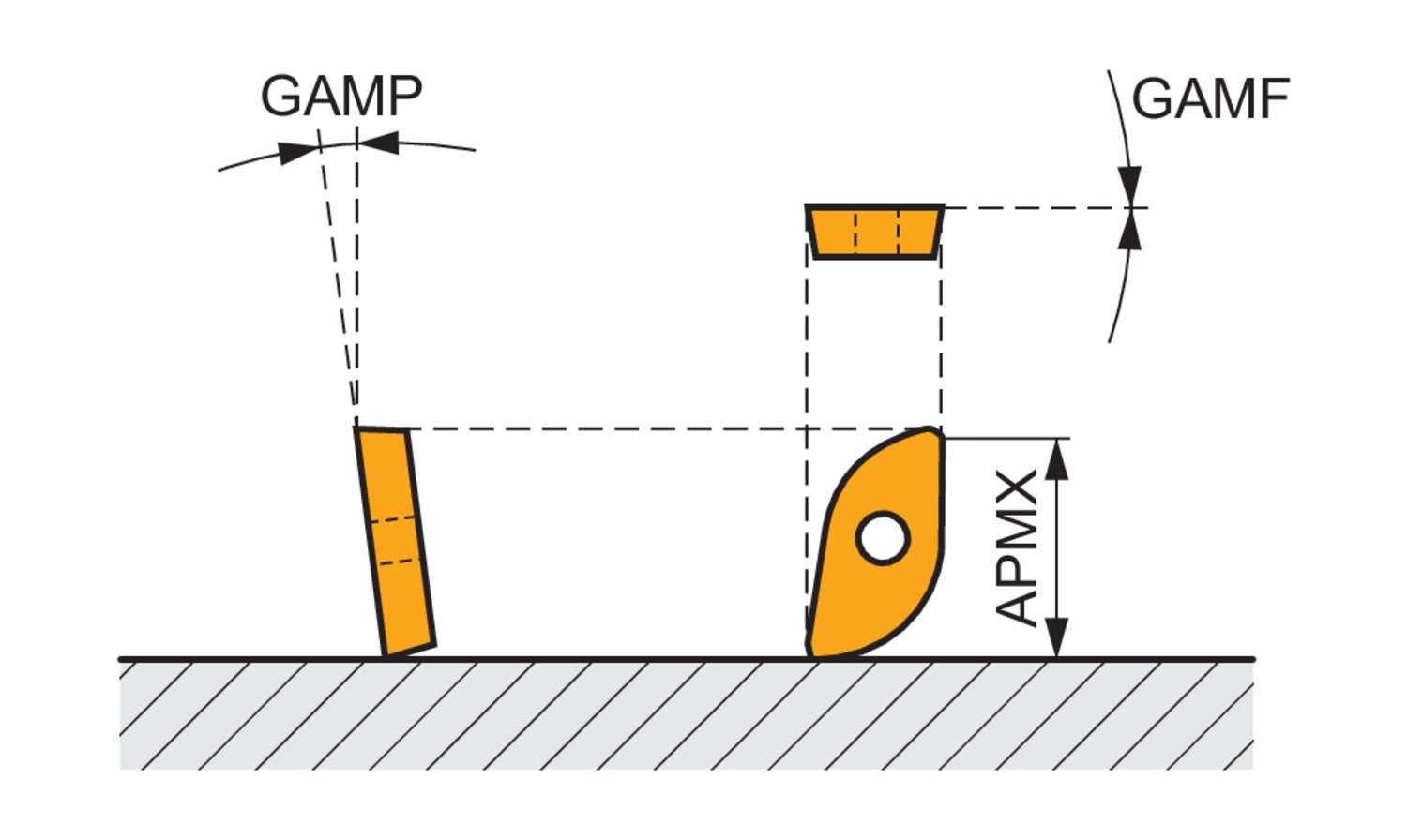

Depth of cut maximum – millimeter (APMX): 44.7 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 7000
Net weight – grams: 2250
Insert index count (NOI): 2
ISO: 50L2R100B50-SZP50-C
