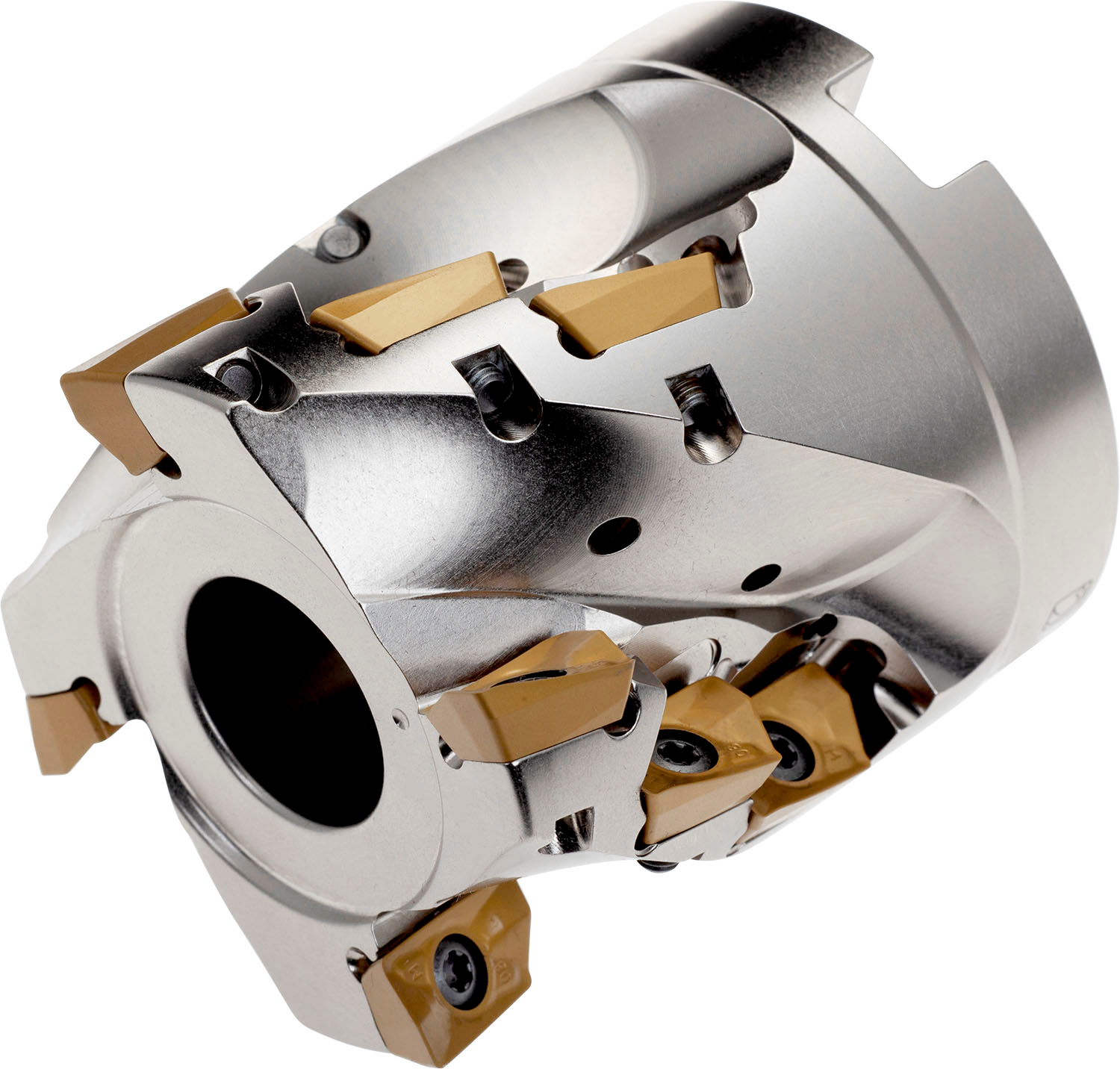

PRAMET 50T03R-S90AD16E40-C Milling cutters with clamping by screw

Product Code: 50T03R-S90AD16E40-C

$1,495.56$1,359.60 Ex. GST

Product Code: 50T03R-S90AD16E40-C SKU 50T03R-S90AD16E40-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with extended flute with positve/negative geometry which utilises 9 of ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030, 40mm functional and 70mm protrusion length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 40mm

Additional information

Weight 1.452 kg
barcode
Additional Information

Description: Value
EAN number: 3603603072084
Product number (SAP): 86020425
Ordering code ANSI: 50T03R-S90AD16E40-C
Product Line: FORCE AD
Gross weight – grams: 649.4
Cutting diameter – millimeter (DC): 50 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 70 mm
Depth of cut maximum – millimeter (APMX): 40 mm
Connection bore depth – millimeter (CBDP): 21 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 12
Flute count (NOF): 3
Number of inserts (helical mills): 9
Rotational speed maximum (RPMX): 13200
Net weight – grams: 629
Insert index count (NOI): 9
ISO: 50T03R-S90AD16E40-C

Brand

PRAMET
