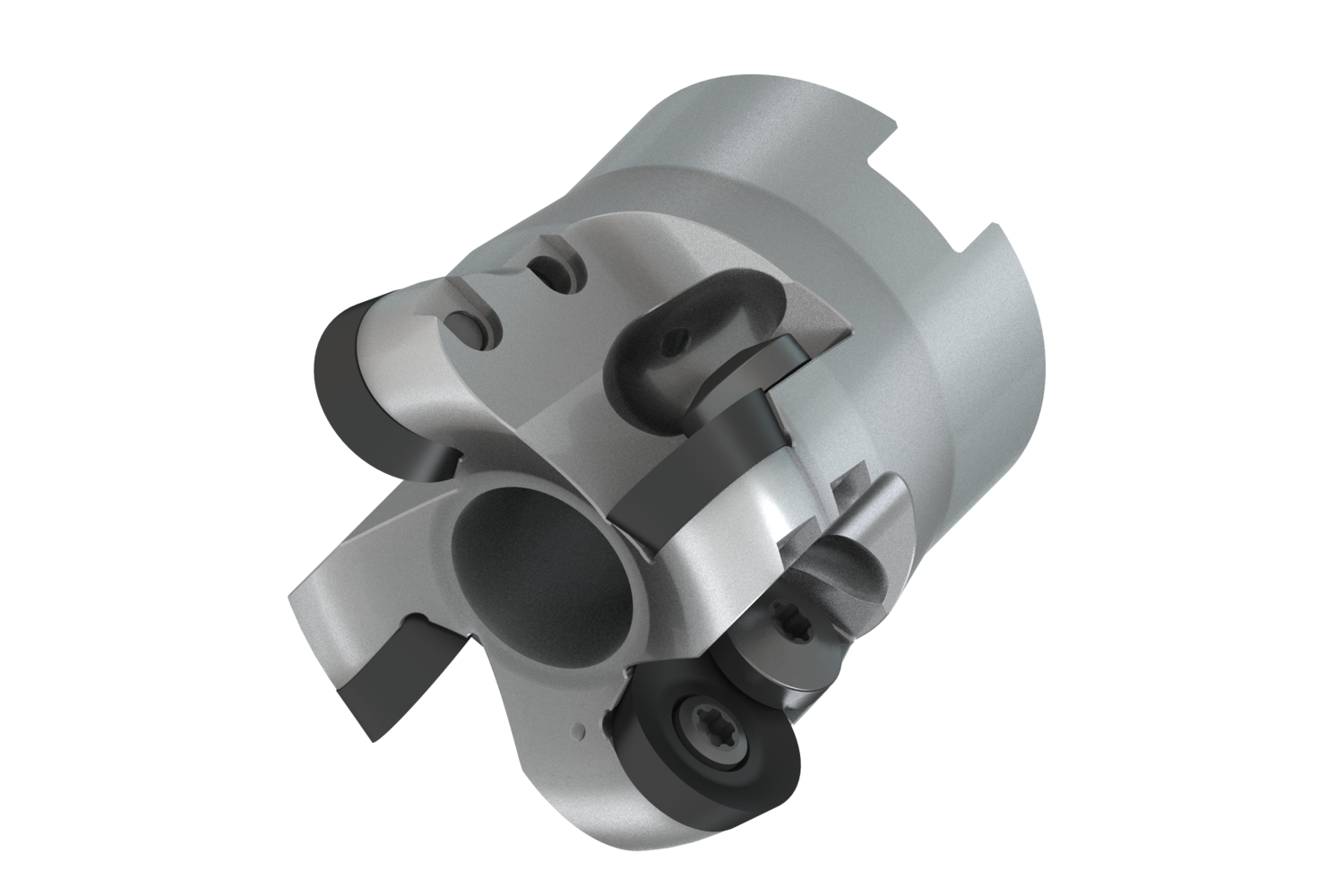

PRAMET 52A04R-SCMORD16-CF Milling cutters for D&M

Description: Value
EAN number: 3603603830066
Product number (SAP): 86037360
Ordering code ANSI: 52A04R-SCMORD16-CF
Gross weight – grams: 411.5
Cutting diameter maximum – millimeter (DCX): 52 mm
Cutting diameter – millimeter (DC): 36 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 16.5 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 10.4 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 7
Peripheral effective cutting edge count (ZEFP): 4
Rotational speed maximum (RPMX): 9900
Net weight – grams: 411.5
Cutter Design: SRD16
Insert index count (NOI): 4
ISO: 52A04R-SCMORD16-CF
