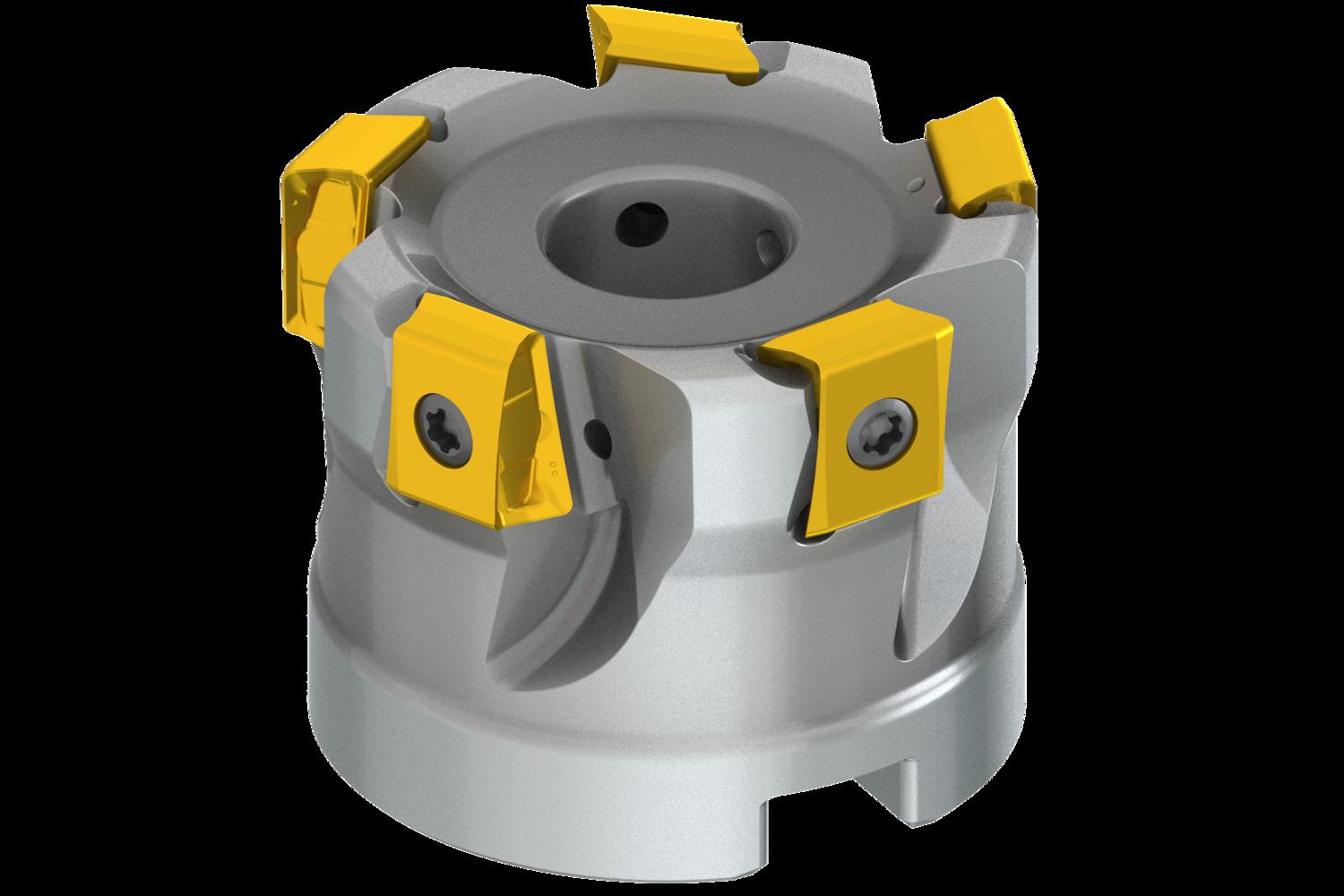

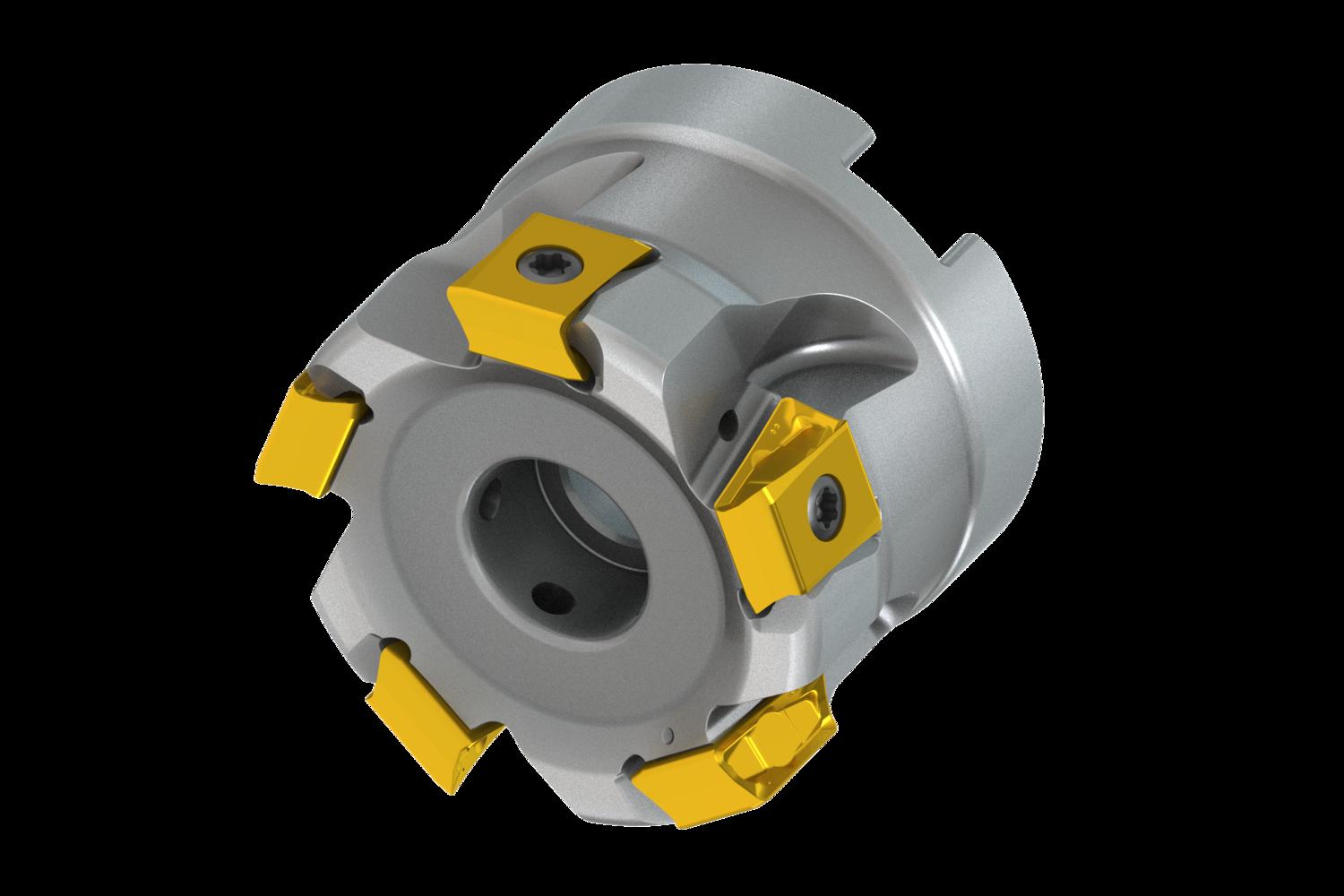

PRAMET 52A05R-S90LN12X-C Milling cutters with clamping by screw

Product Code: 52A05R-S90LN12X-C

$831.62$756.02 Ex. GST

Product Code: 52A05R-S90LN12X-C SKU 52A05R-S90LN12X-C Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double negative geometry which utilises 5 of LNEX 1210.. double-sided inserts, cutting diameter 52mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 40mm functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm

Additional information

Weight 0.3700 kg
barcode

3603603955011

Additional Information

Description: Value
EAN number: 3603603955011
Product number (SAP): 86038983
Ordering code ANSI: 52A05R-S90LN12X-C
Gross weight – grams: 490.4

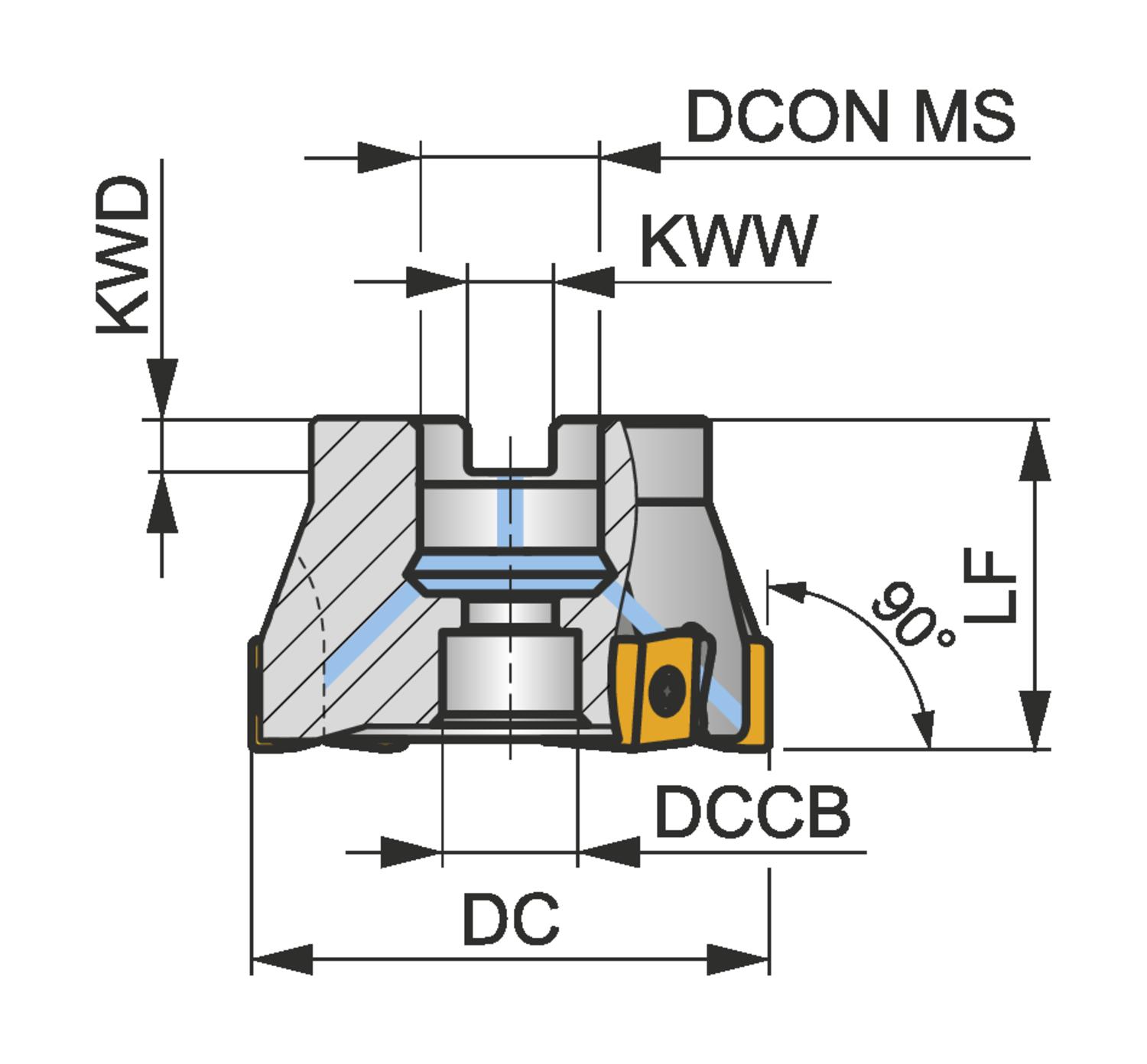

Cutting diameter – millimeter (DC): 52 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 16.5 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm

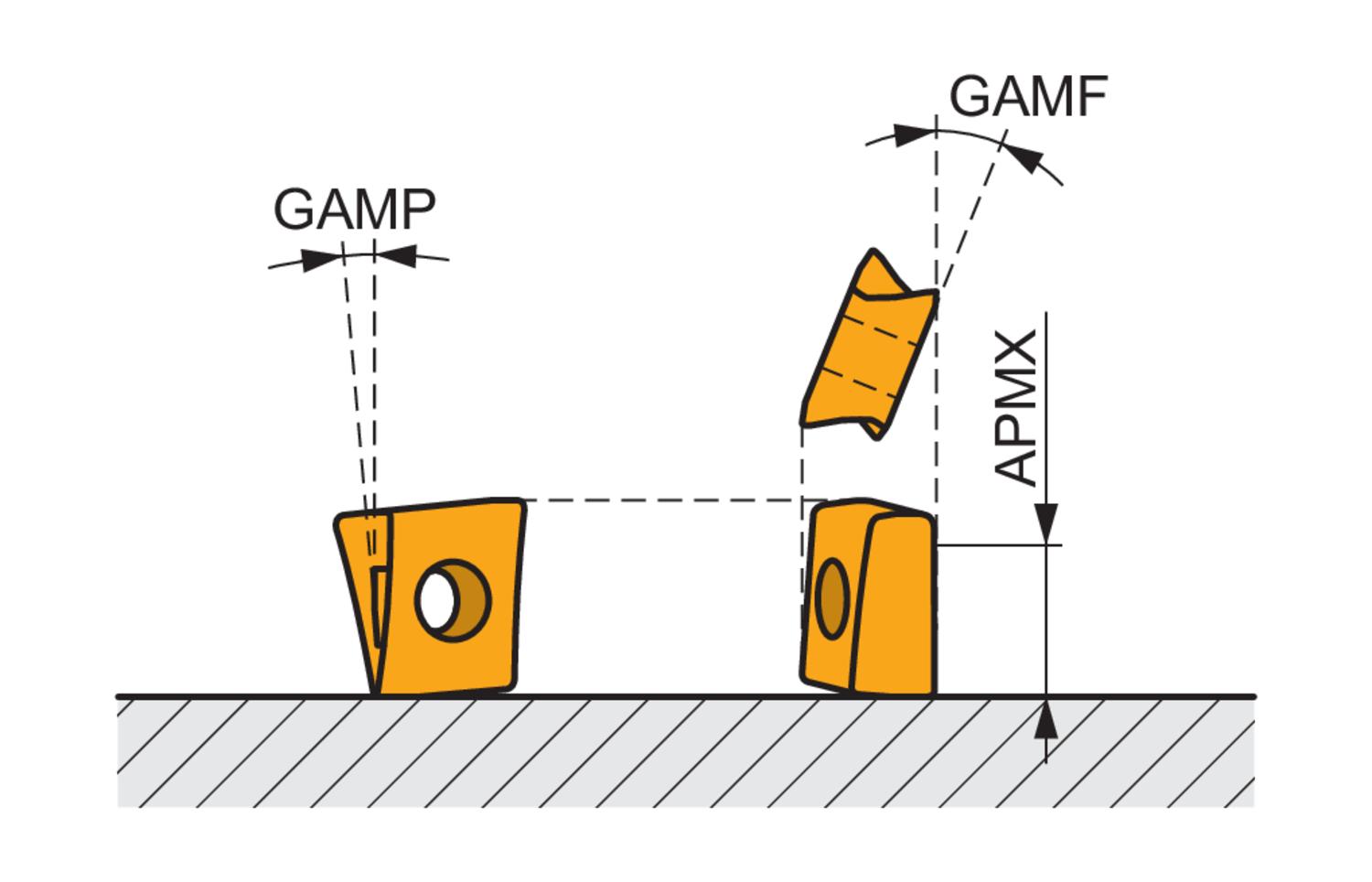

Radial rake angle (GAMF): -19.5
Axial rake angle (GAMP): -5
Peripheral effective cutting edge count (ZEFP): 5
Rotational speed maximum (RPMX): 12300
Net weight – grams: 370
Cutter Design: SLN12X
ISO: 52A05R-S90LN12X-C
