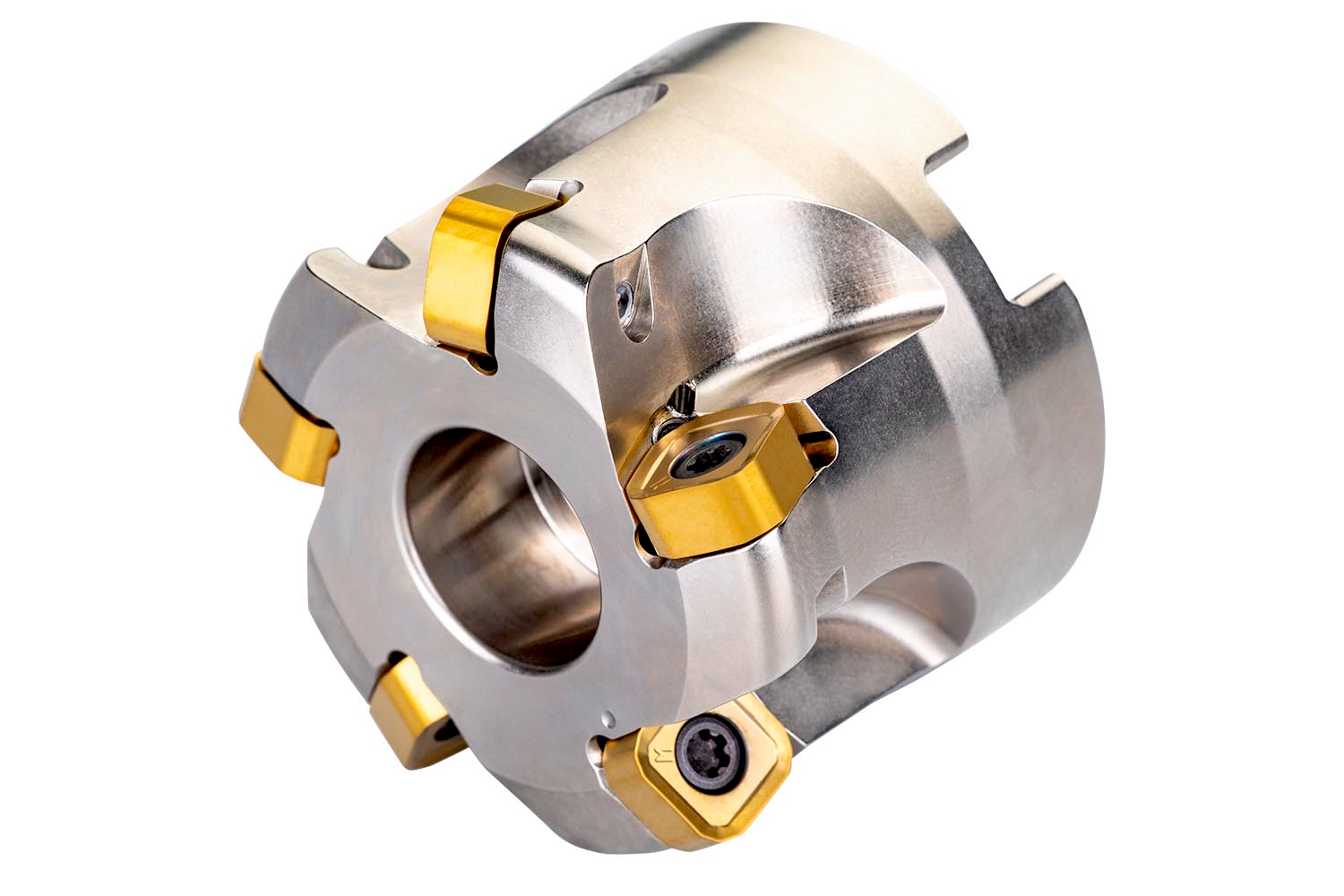

PRAMET 52A05R-SMOSN11-C

Description: Value
EAN number: 3603603672376
Product number (SAP): 86035426
Ordering code ANSI: 52A05R-SMOSN11-C
Gross weight – grams: 466
Cutting diameter maximum – millimeter (DCX): 52 mm
Cutting diameter – millimeter (DC): 38.1 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18.1 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm
Radial rake angle (GAMF): -10
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 13800
Net weight – grams: 465
Cutter Design: SSN11
Insert index count (NOI): 5
ISO: 52A05R-SMOSN11-C
