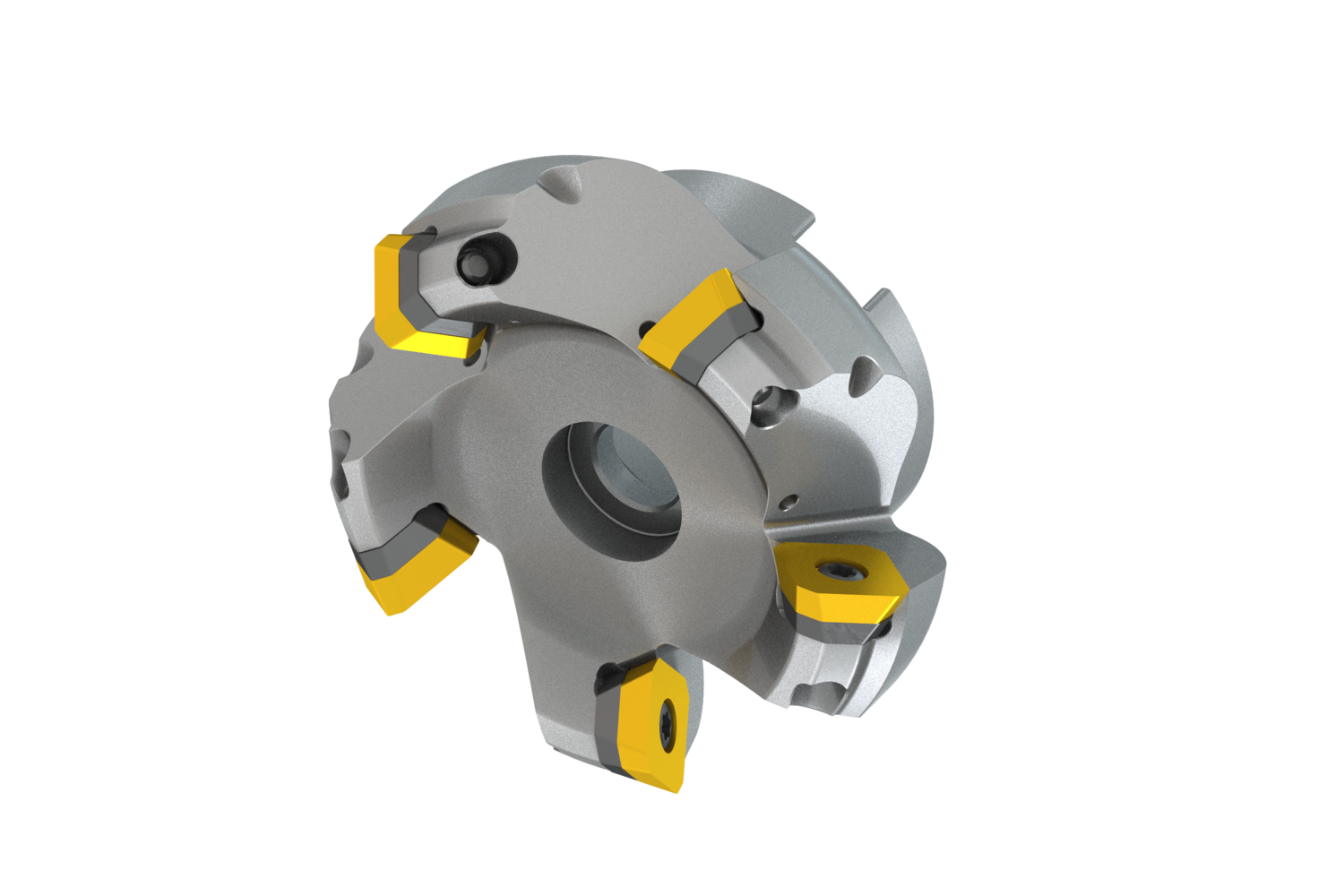

PRAMET 63A05R-S45SD13F-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603603977228
Product number (SAP): 86038939
Ordering code ANSI: 63A05R-S45SD13F-C
Gross weight – grams: 668

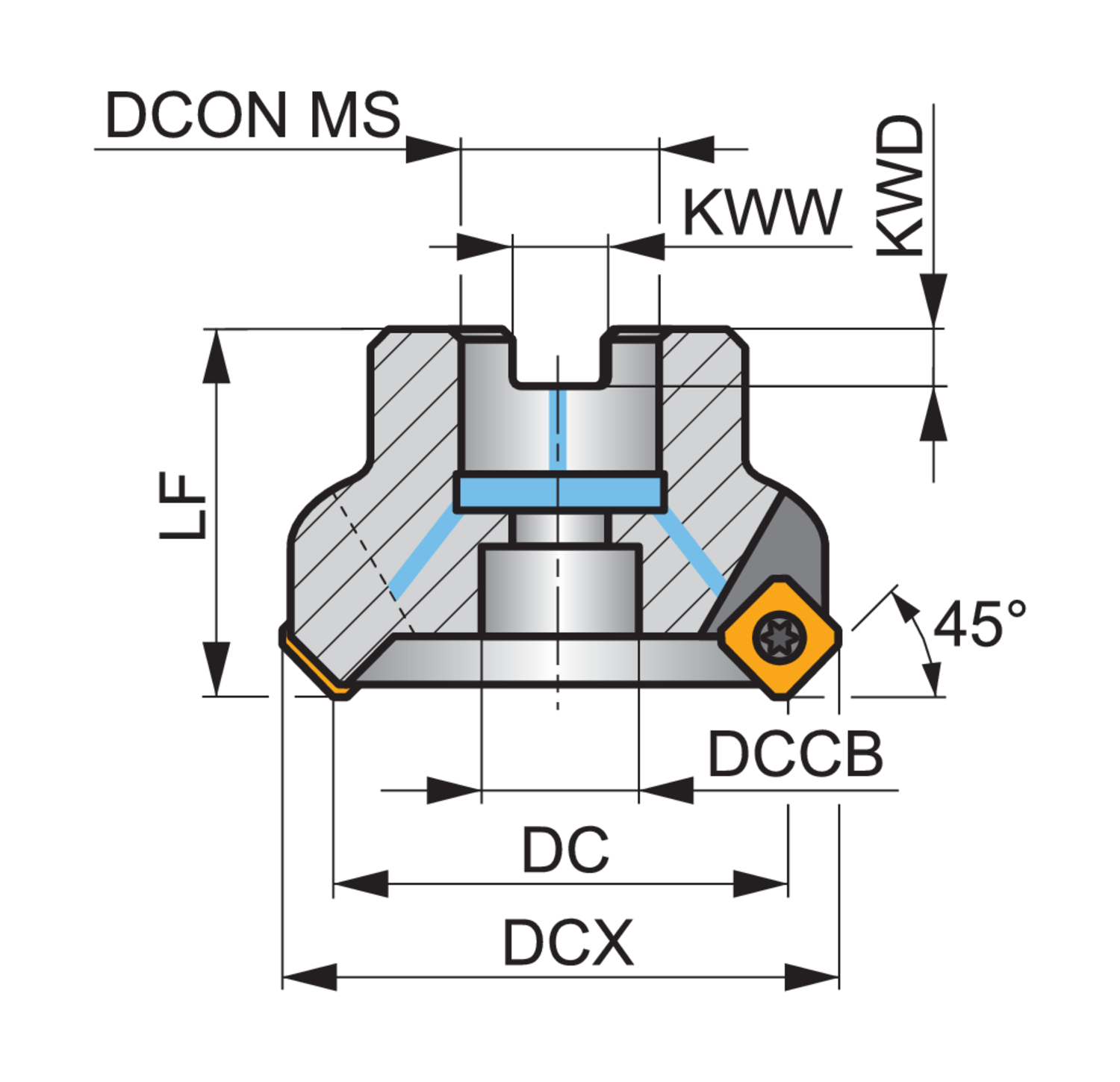

Cutting diameter maximum – millimeter (DCX): 76.4 mm
Cutting diameter – millimeter (DC): 63 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm

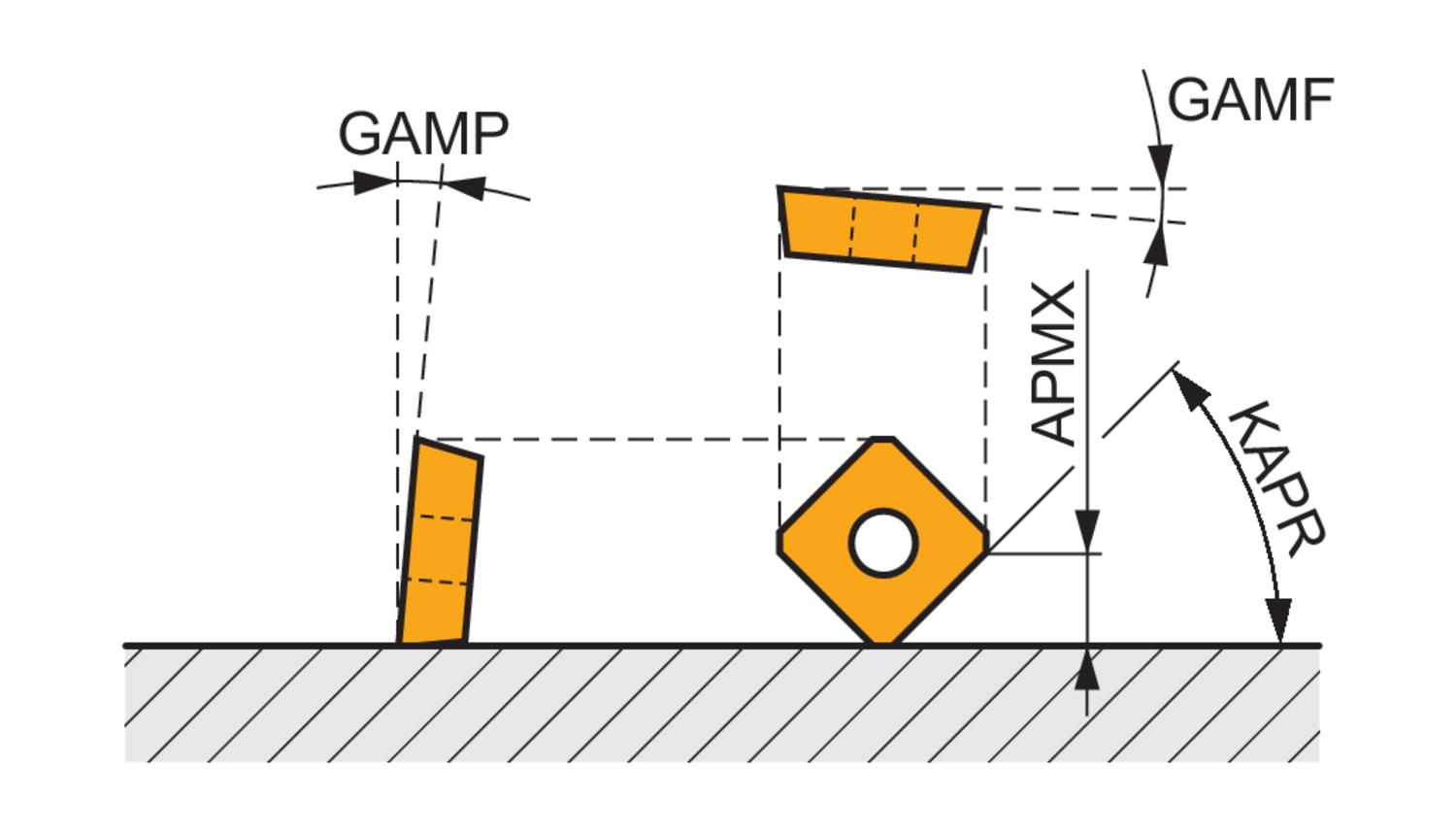

Radial rake angle (GAMF): -7
Axial rake angle (GAMP): 15
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 11500
Net weight – grams: 530
Cutter Design: SSD13F
ISO: 63A05R-S45SD13F-C
