PRAMET 63A06R-S19PD09-C

Product Code: 63A06R-S19PD09-C

$1,000.44$909.49 Ex. GST

Product Code: 63A06R-S19PD09-C SKU 63A06R-S19PD09-C Categories , ,
PRAMET 63A06R-S19PD09-C

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

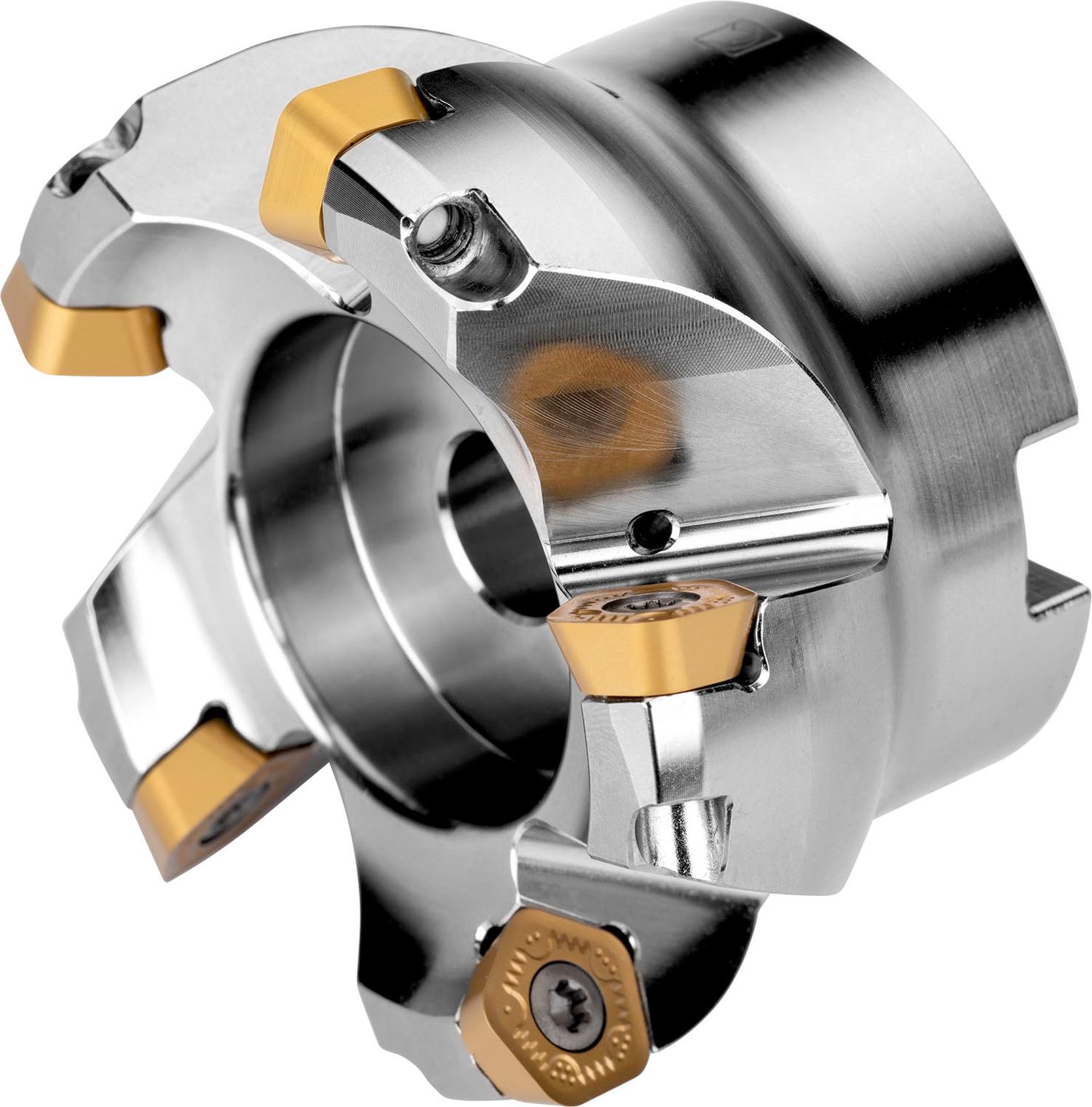

High feed cutter with positve/negative geometry which utilises 6 of PD.X 0905ZE.., PDKT 0905.. or PDMW 0905.. single-sided inserts, cutting diameter 63mm with 19° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant for face milling with a maximum depth of cut of 2.0mm

Additional information

Weight 0.9713 kg
barcode
Additional Information

Description: Value
EAN number: 3603603074040
Product number (SAP): 86020601
Ordering code ANSI: 63A06R-S19PD09-C
Product Line: PENTA HF
Gross weight – grams: 451.9
Cutting diameter maximum – millimeter (DCX): 63 mm
Cutting diameter – millimeter (DC): 48.2 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Radial rake angle (GAMF): -1
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 6
Rotational speed maximum (RPMX): 9300
Net weight – grams: 448
Cutter Design: SPD09
Insert index count (NOI): 6
ISO: 63A06R-S19PD09-C
