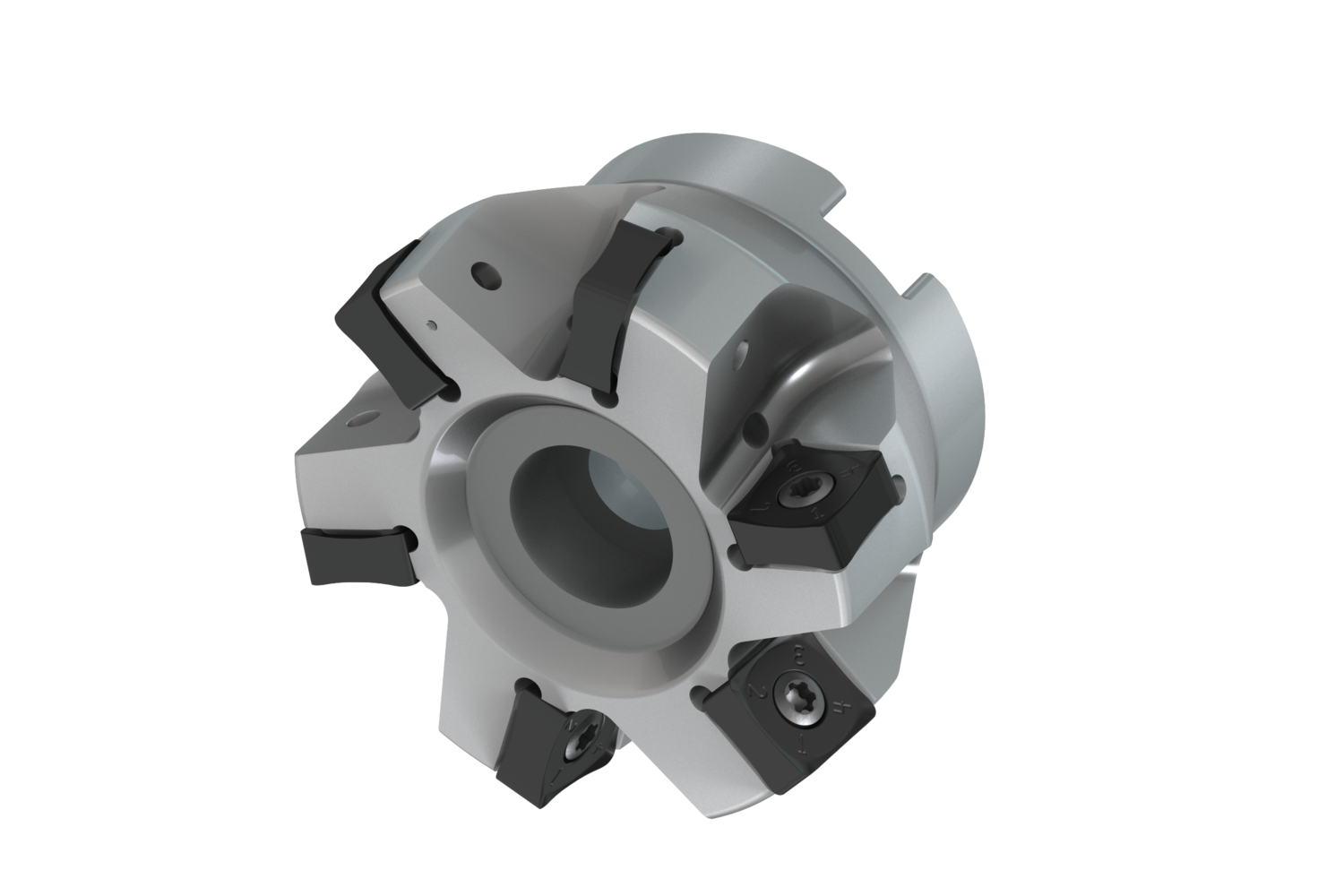

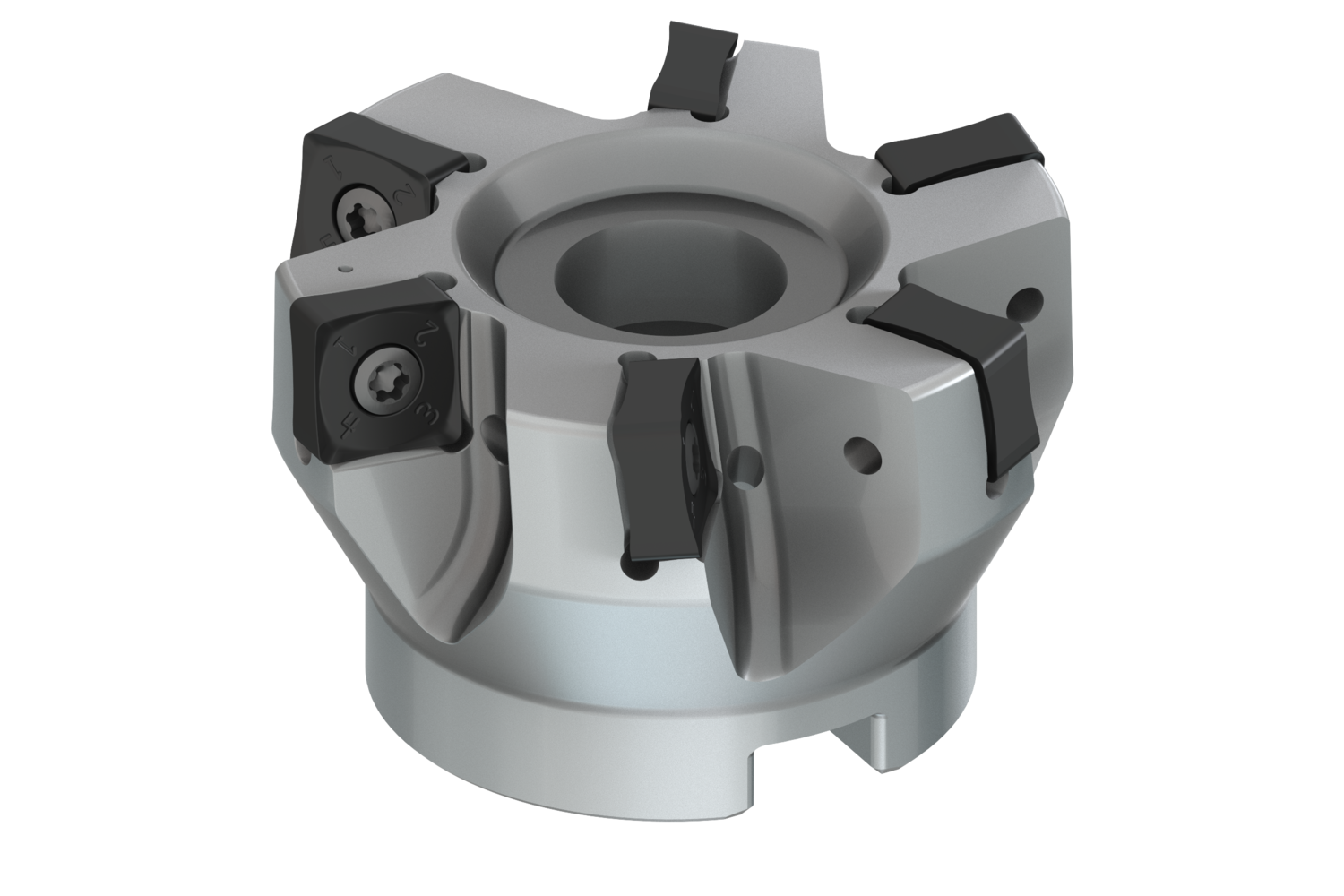

PRAMET 63A06R-S88SN12-C Milling Cutters

Description: Value
EAN number: 3603604144346
Product number (SAP): 86043813
Ordering code ANSI: 63A06R-S88SN12-C
Gross weight – grams: 581.4

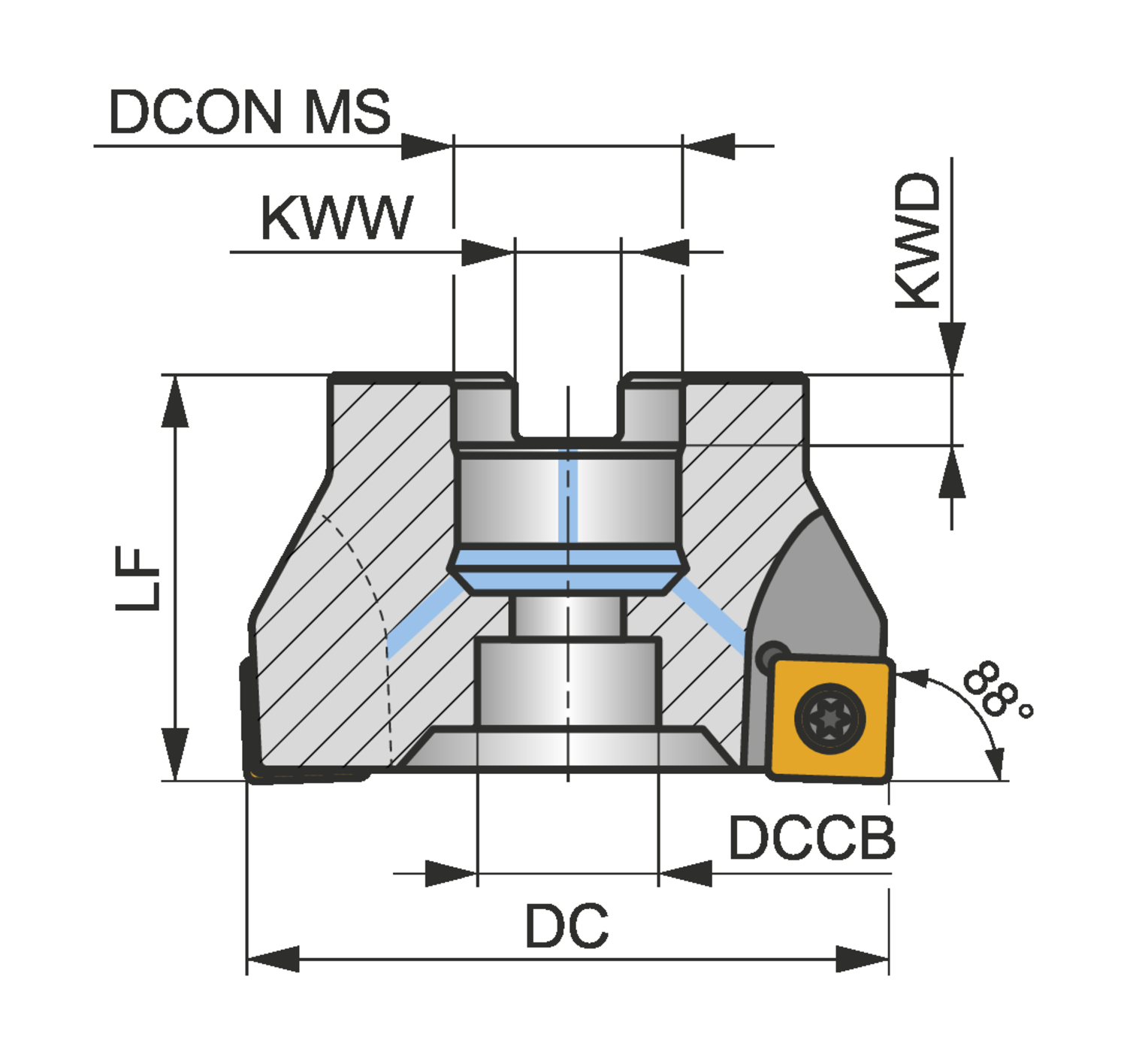

Cutting diameter – millimeter (DC): 63 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm

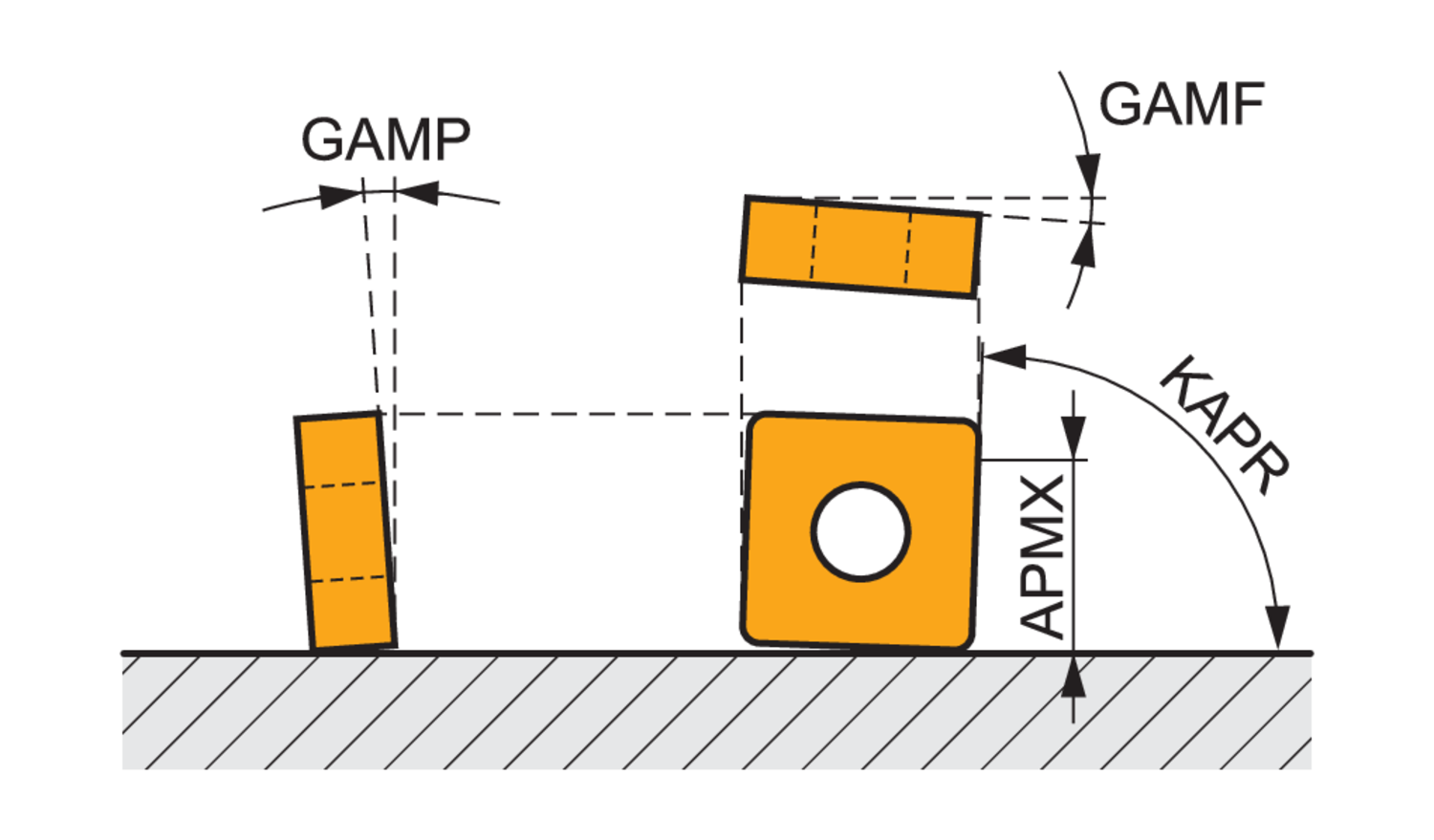

Radial rake angle (GAMF): -8
Axial rake angle (GAMP): -8
Peripheral effective cutting edge count (ZEFP): 6
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 11200
Net weight – grams: 455
Cutter Design: SSN12
ISO: 63A06R-S88SN12-C
