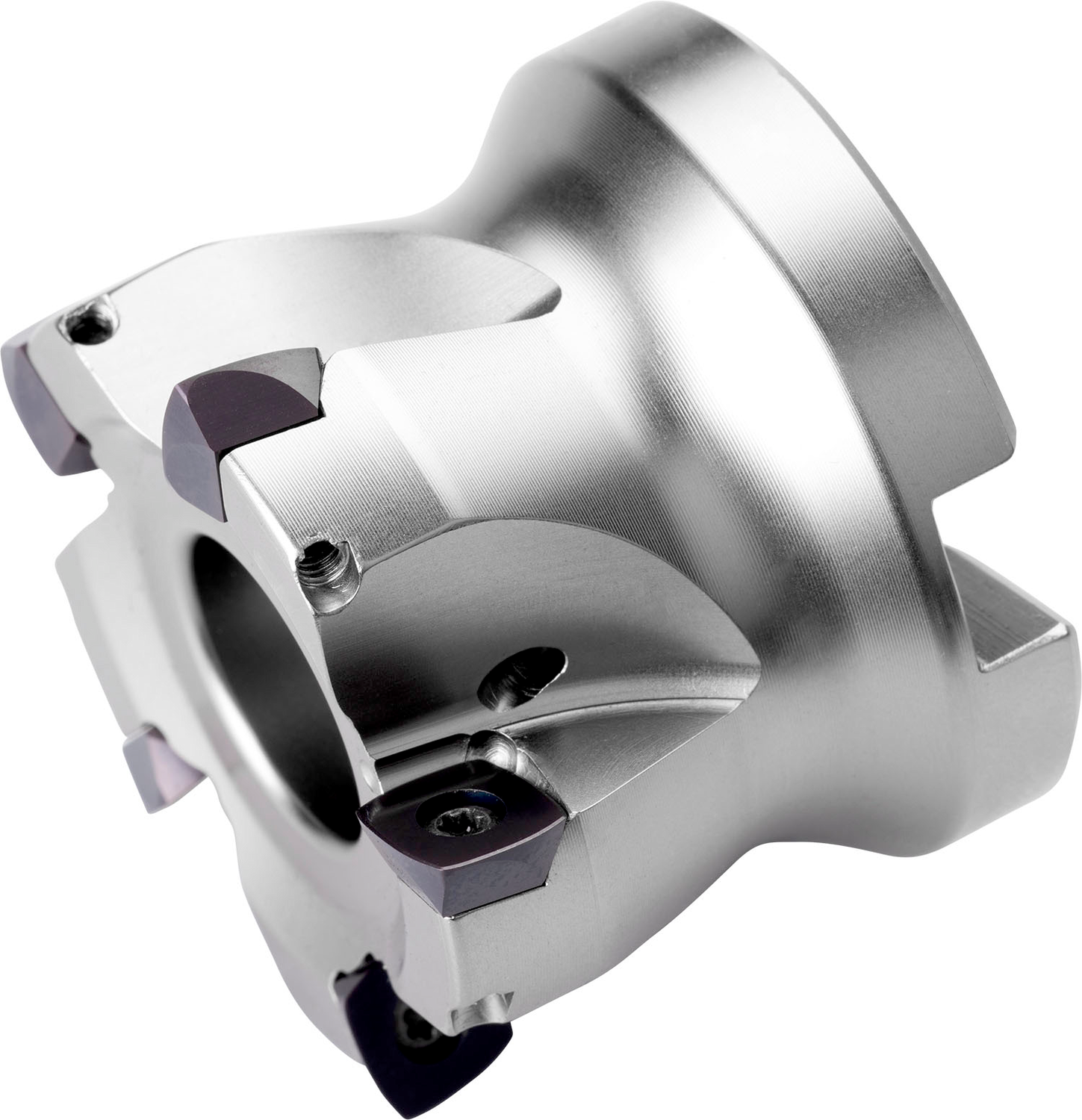

PRAMET 63A06R-SMOZD09-C Milling Cutters – HFC

Description: Value
EAN number: 3603603116153
Product number (SAP): 86027034
Ordering code ANSI: 63A06R-SMOZD09-C
Product Line: FEED ZD
Gross weight – grams: 604
Cutting diameter maximum – millimeter (DCX): 63 mm
Cutting diameter – millimeter (DC): 49.7 mm
Connection diameter – millimeter (DCON MS): 22 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.4 mm
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 6
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 14300
Net weight – grams: 604
Cutter Design: SZD09
Insert index count (NOI): 6
ISO: 63A06R-SMOZD09-C
