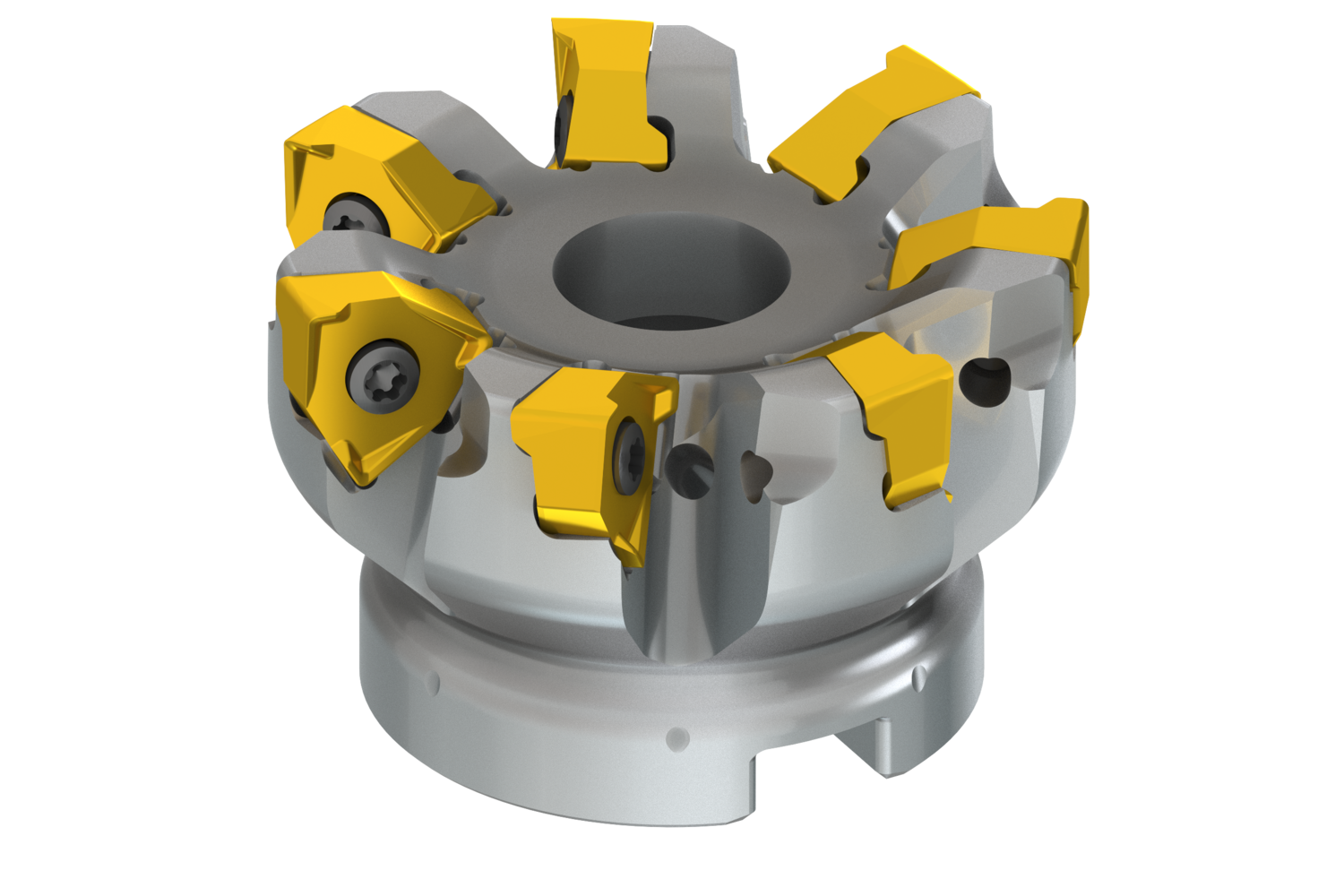

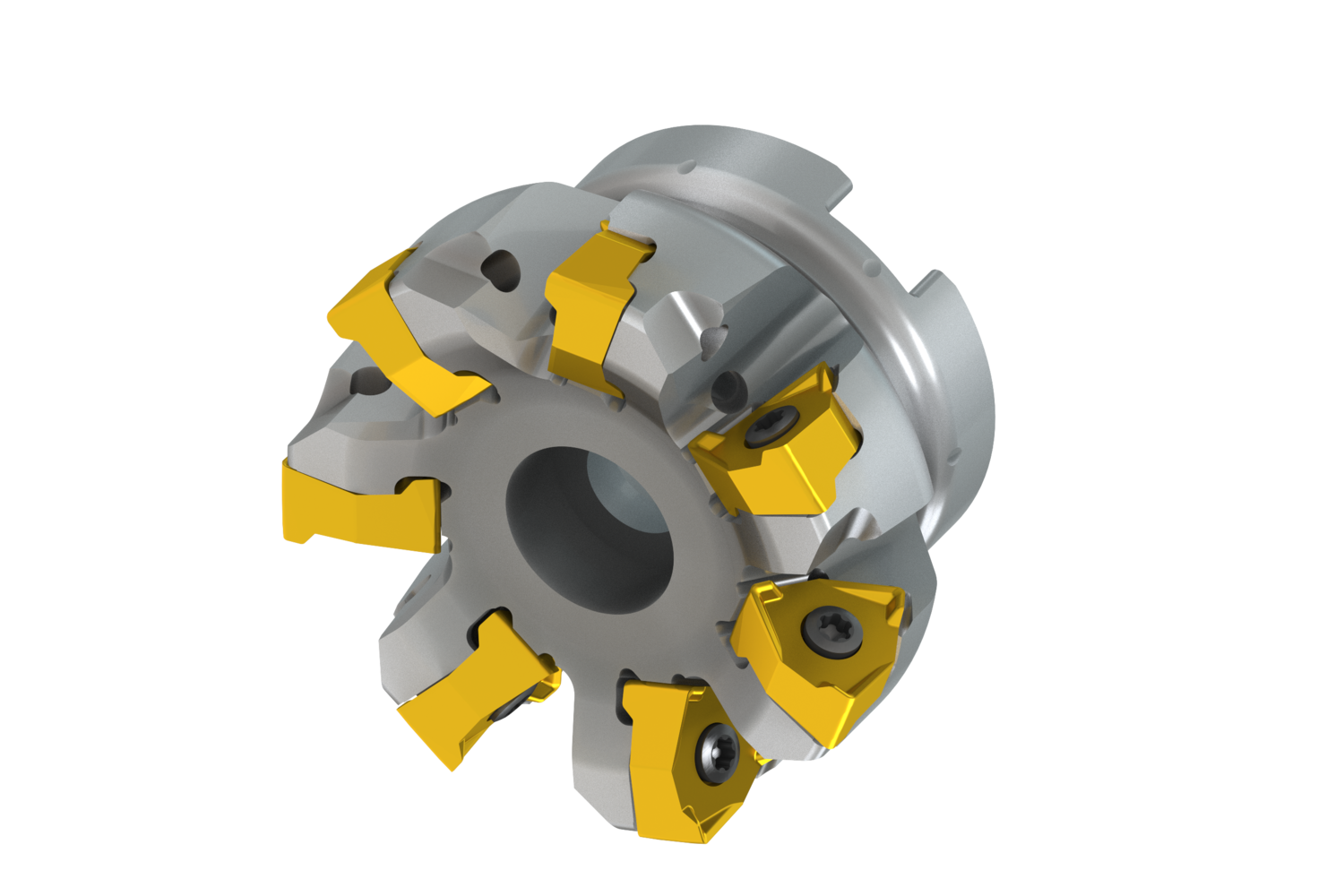

PRAMET 63A07R-S90XN08-C Milling Cutters

Description: Value
EAN number: 3603604144216
Product number (SAP): 86043806
Ordering code ANSI: 63A07R-S90XN08-C
Gross weight – grams: 541

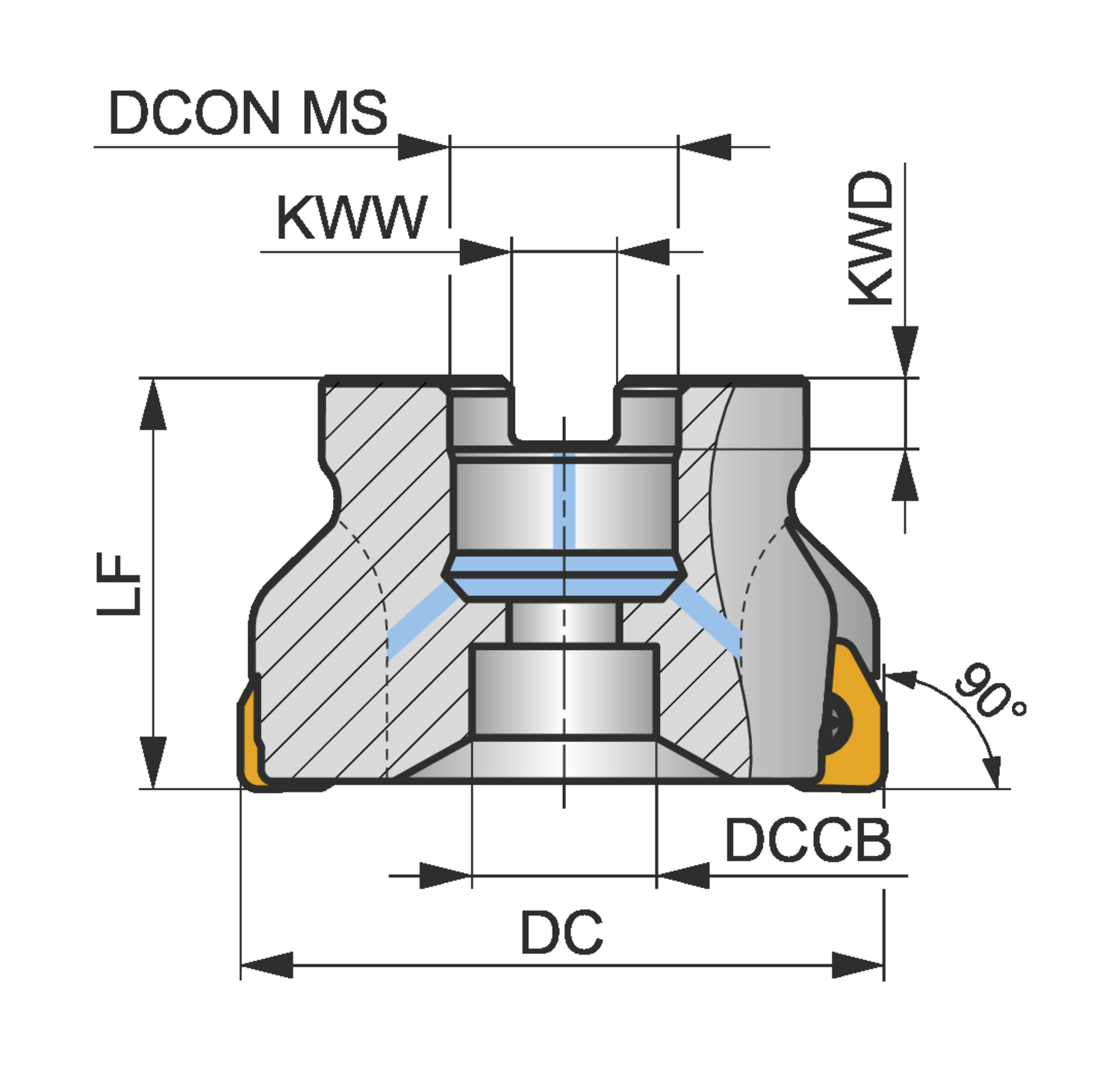

Cutting diameter – millimeter (DC): 63 mm
Connection diameter – millimeter (DCON MS): 22 mm
Counterbore diameter connection bore – millimeter (DCCB): 18 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 10.4 mm
Keyway depth – millimeter (KWD): 6.3 mm

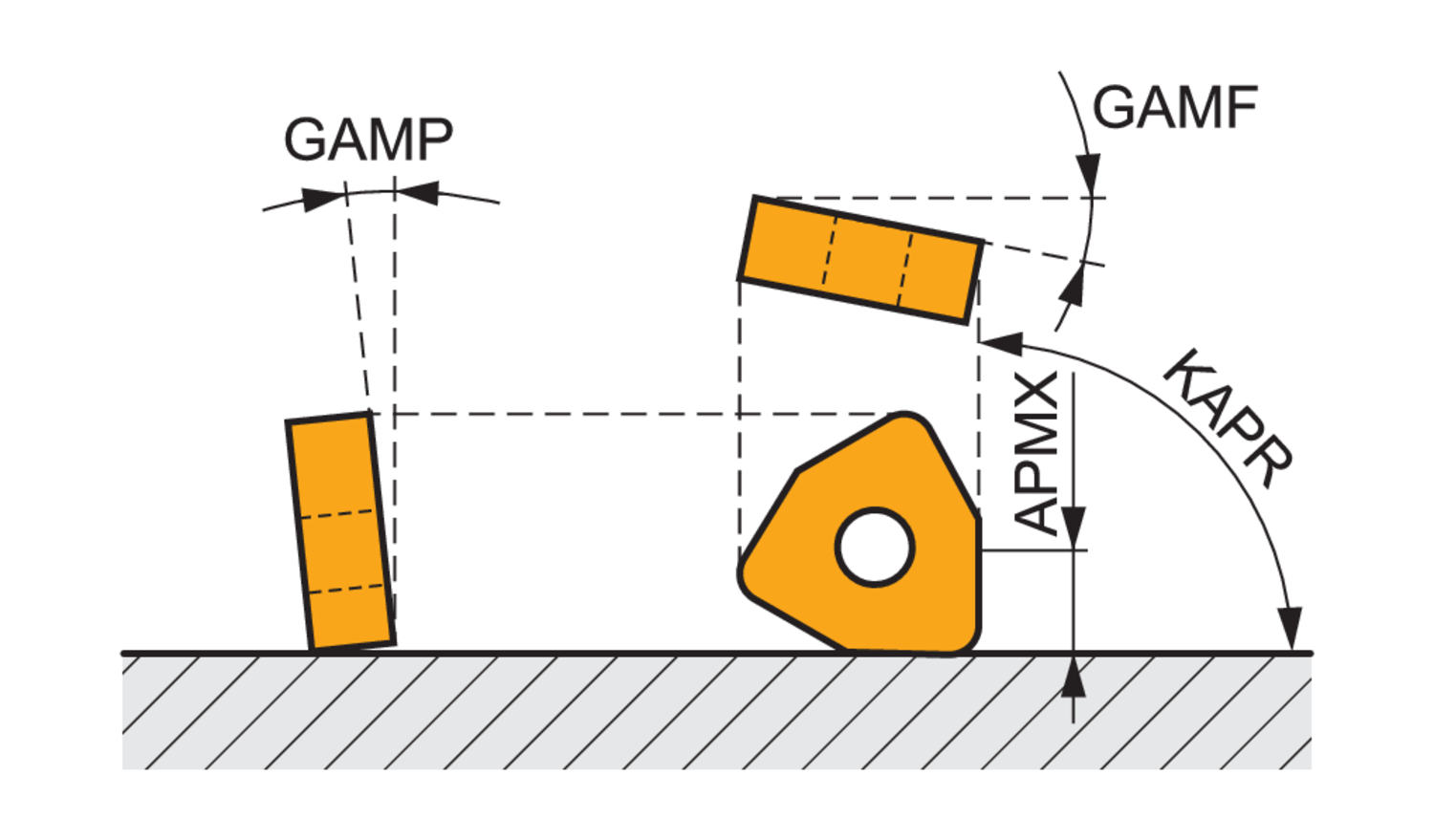

Radial rake angle (GAMF): -11.2
Axial rake angle (GAMP): -6.3
Peripheral effective cutting edge count (ZEFP): 7
Rotational speed maximum (RPMX): 9400
Net weight – grams: 540
Cutter Design: SXN08
ISO: 63A07R-S90XN08-C
