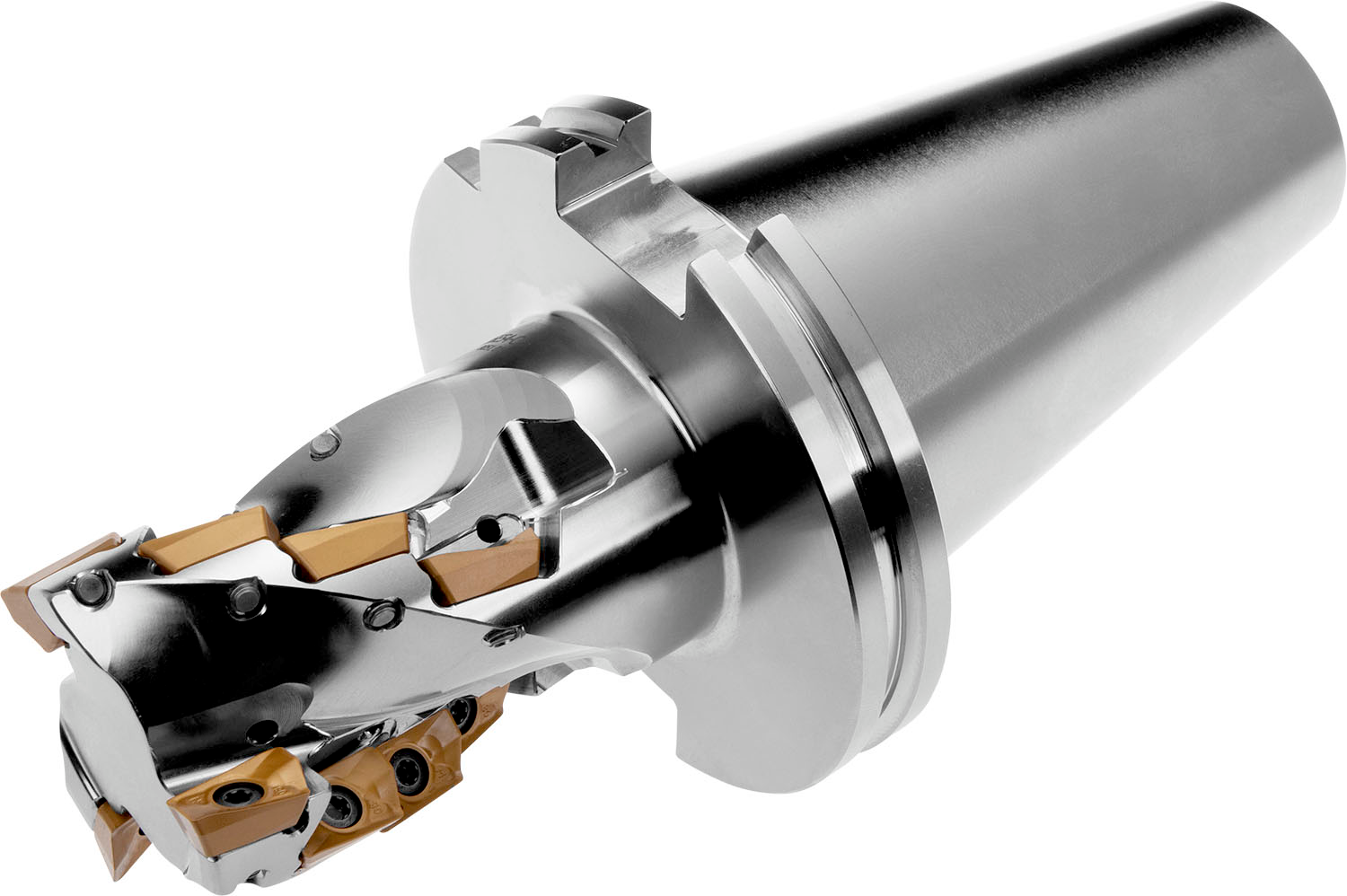

PRAMET 63J3R140H50-SAD16E68-C Milling cutters with clamping by screw

Product Code: 63J3R140H50-SAD16E68-C

$2,475.61$2,250.55 Ex. GST

Product Code: 63J3R140H50-SAD16E68-C SKU 63J3R140H50-SAD16E68-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with extended flute with positve/negative geometry which utilises 15 of ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 63mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 68mm functional and 242mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 68mm

Additional information

Weight 2.4035 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603072091
Product number (SAP): 86020390
Ordering code ANSI: 63J3R140H50-SAD16E68-C
Product Line: FORCE AD
Gross weight – grams: 5345
Cutting diameter – millimeter (DC): 63 mm
Overall length – millimeter (OAL): 242 mm
Functional length – millimeter (LF): 140 mm
Depth of cut maximum – millimeter (APMX): 68 mm
Connection size code machine side (CZC MS): 50
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 12
Flute count (NOF): 3
Number of inserts (helical mills): 15
Rotational speed maximum (RPMX): 11700
Net weight – grams: 5345
Insert index count (NOI): 15
ISO: 63J3R140H50-SAD16E68-C

Brand

PRAMET
