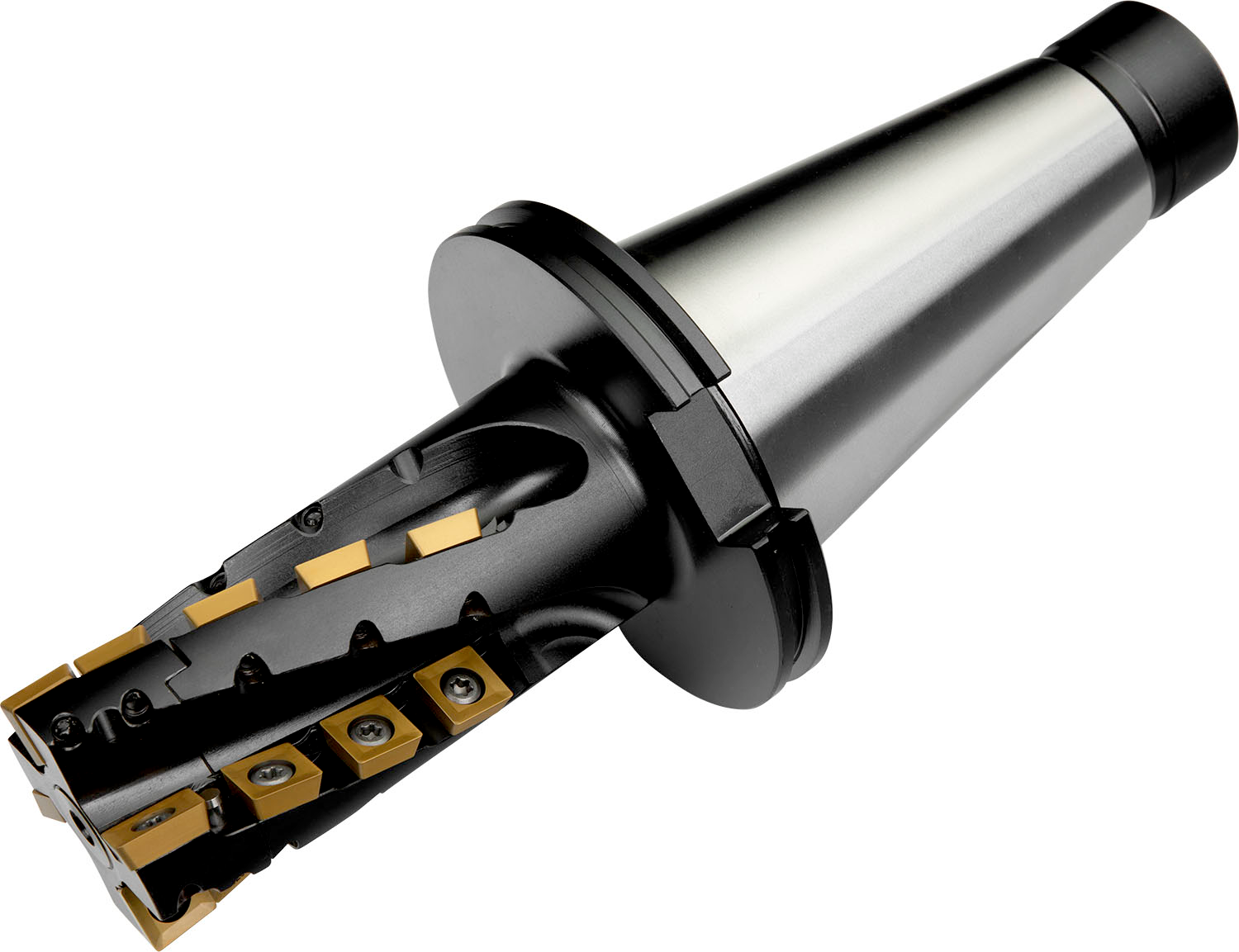

PRAMET 63J4R146X50-SSAP74+21 Milling cutters with clamping by screw

Product Code: 63J4R146X50-SSAP74+21

$2,713.54$2,466.85 Ex. GST

Product Code: 63J4R146X50-SSAP74+21 SKU 63J4R146X50-SSAP74+21 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with extended flute and exchangeable head, with positve/negative geometry which utilises 2 of APE. 1504.. and 20 SPE. 1204.. single-sided inserts, cutting diameter 63mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 95mm functional and 273mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 95mm

Additional information

Weight 2.6345 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602931740
Product number (SAP): 84003224
Ordering code ANSI: 63J4R146X50-SSAP74+21
Gross weight – grams: 4750
Cutting diameter – millimeter (DC): 63 mm
Overall length – millimeter (OAL): 273 mm
Depth of cut maximum – millimeter (APMX): 95 mm
Functional length – millimeter (LF): 146 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 7
Connection size code machine side (CZC MS): 50
Flute count (NOF): 4
Number of AP inserts for helical mills: 2
Number of SP inserts for helical mill: 20
Rotational speed maximum (RPMX): 8500
Net weight – grams: 4750
Insert index count (NOI): 22
ISO: 63J4R146X50-SSAP74+21

Brand

PRAMET
