PRAMET 63T04R-S90AD16E68-C Milling cutters with clamping by screw

Product Code: 63T04R-S90AD16E68-C

$2,333.98$2,121.80 Ex. GST

Product Code: 63T04R-S90AD16E68-C SKU 63T04R-S90AD16E68-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

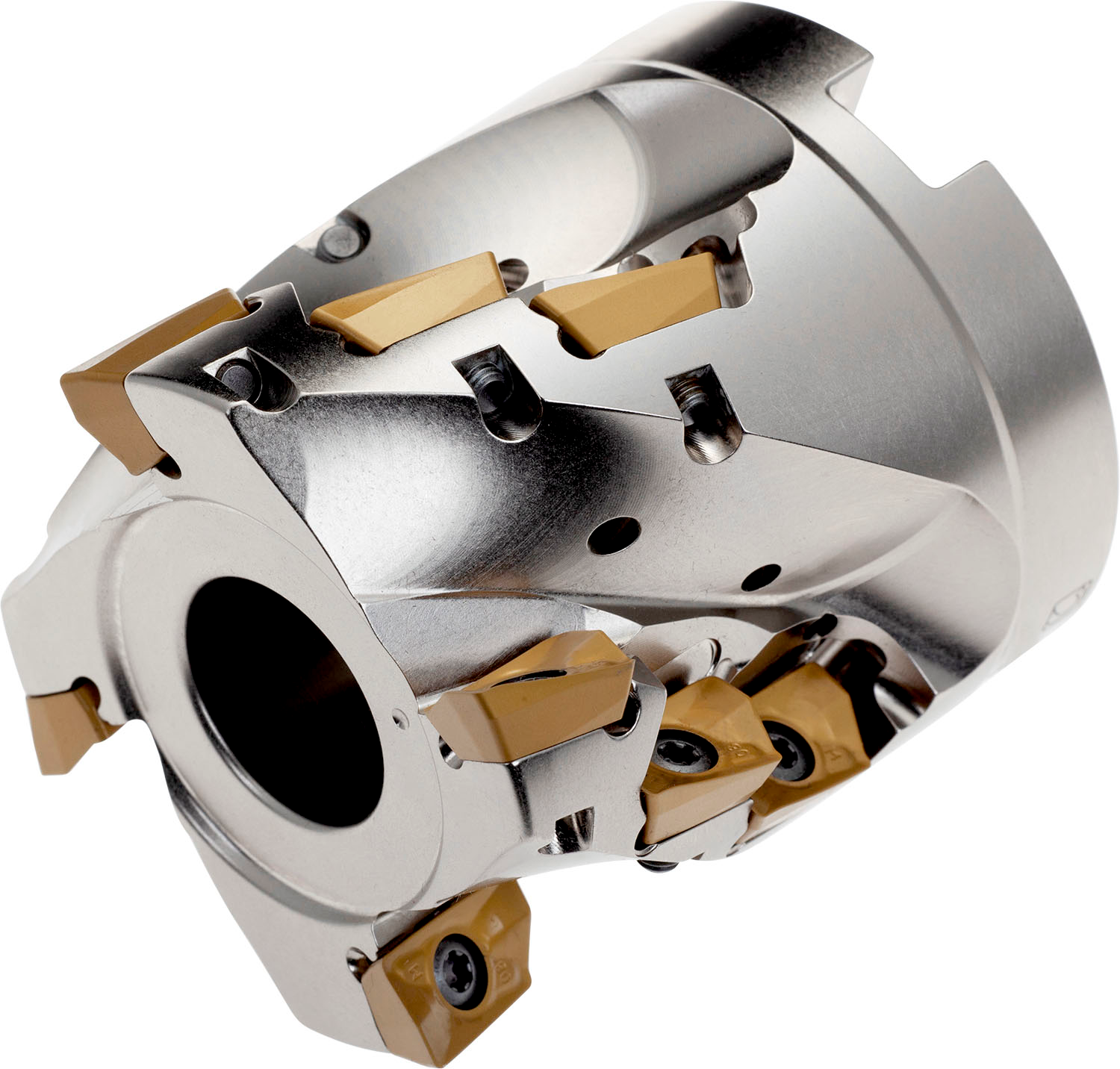

Shoulder mill with extended flute with positve/negative geometry which utilises 20 of ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 63mm with 90° approach angle and 27mm connection bore according to DIN 8030, 68mm functional and 100mm protrusion length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 68mm

Additional information

Weight 2.266 kg
barcode
Additional Information

Description: Value
EAN number: 3603603072145
Product number (SAP): 86020424
Ordering code ANSI: 63T04R-S90AD16E68-C
Product Line: FORCE AD
Gross weight – grams: 1392
Cutting diameter – millimeter (DC): 63 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 22 mm
Functional length – millimeter (LF): 100 mm
Depth of cut maximum – millimeter (APMX): 68 mm
Connection bore depth – millimeter (CBDP): 22 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 12
Flute count (NOF): 4
Number of inserts (helical mills): 20
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 11700
Net weight – grams: 1311
Insert index count (NOI): 20
ISO: 63T04R-S90AD16E68-C

Brand

PRAMET
