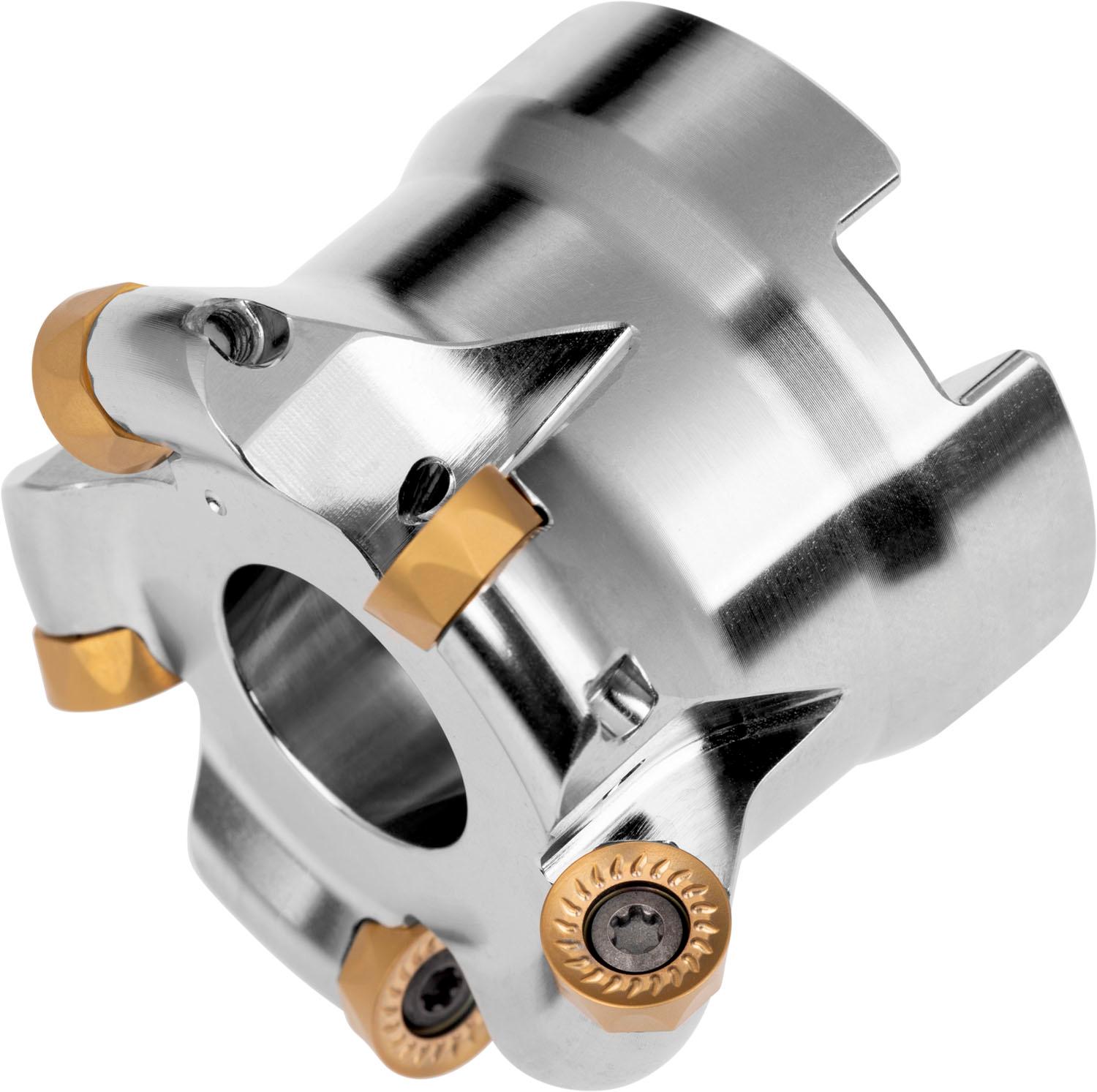

PRAMET 66A06R-SMORC10-C Milling cutters for D&M

Description: Value
EAN number: 3603603373082
Product number (SAP): 86033368
Ordering code ANSI: 66A06R-SMORC10-C
Gross weight – grams: 646
Cutting diameter maximum – millimeter (DCX): 66 mm
Cutting diameter – millimeter (DC): 56 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 22 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm
Radial rake angle (GAMF): -1.4
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 6
Rotational speed maximum (RPMX): 12800
Net weight – grams: 576
Cutter Design: SRC10
Insert index count (NOI): 6
ISO: 66A06R-SMORC10-C
