PRAMET 66A06R-SMOSO12-C

Description: Value
EAN number: 3603604263252
Product number (SAP): 86045460
Ordering code ANSI: 66A06R-SMOSO12-C
Gross weight – grams: 634

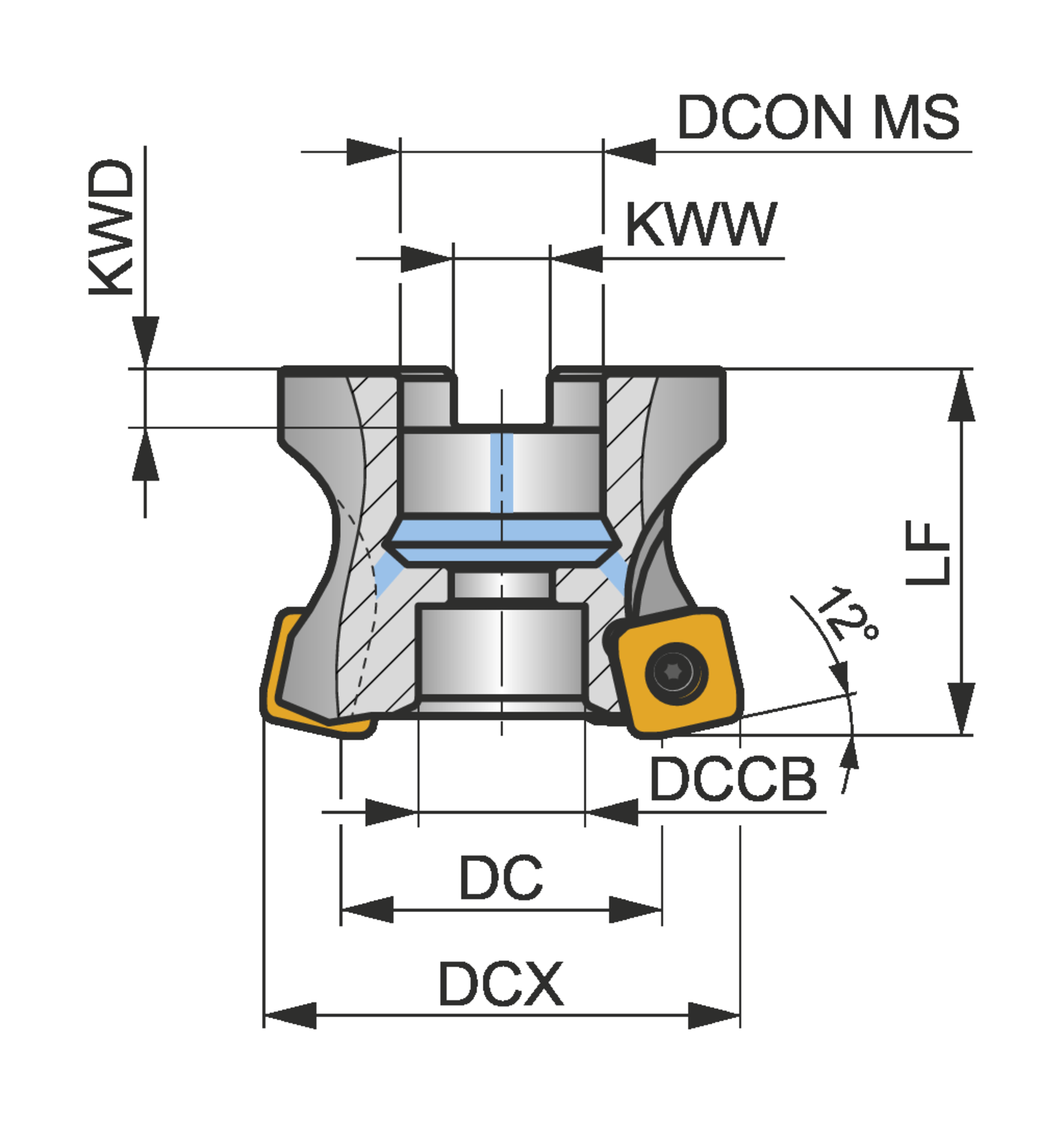

Cutting diameter – millimeter (DC): 48.3 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 22.1 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm

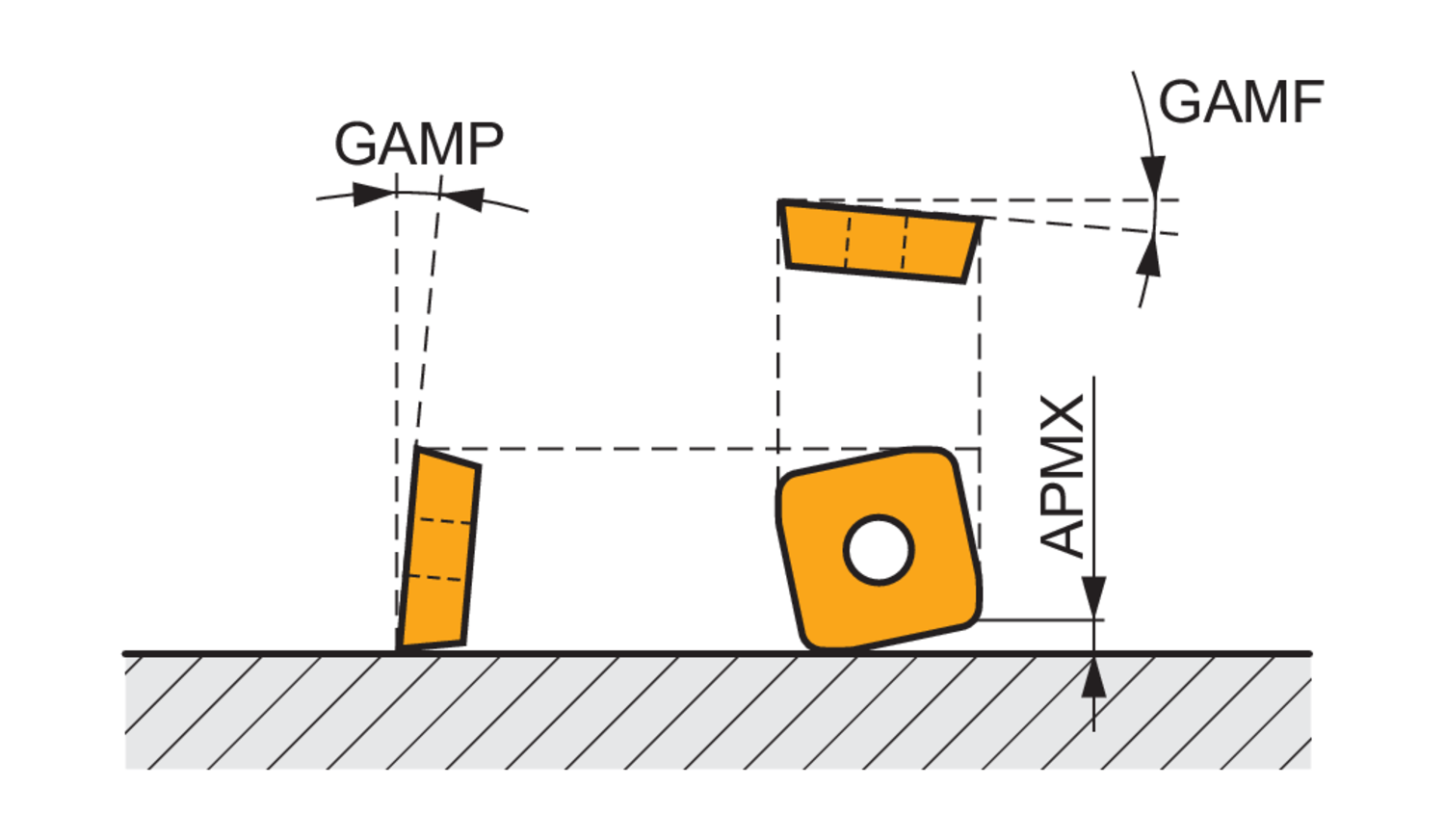

Radial rake angle (GAMF): -5
Axial rake angle (GAMP): 5
Peripheral effective cutting edge count (ZEFP): 6
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 11400
Net weight – grams: 510
Cutter Design: SSO12
ISO: 66A06R-SMOSO12-C
