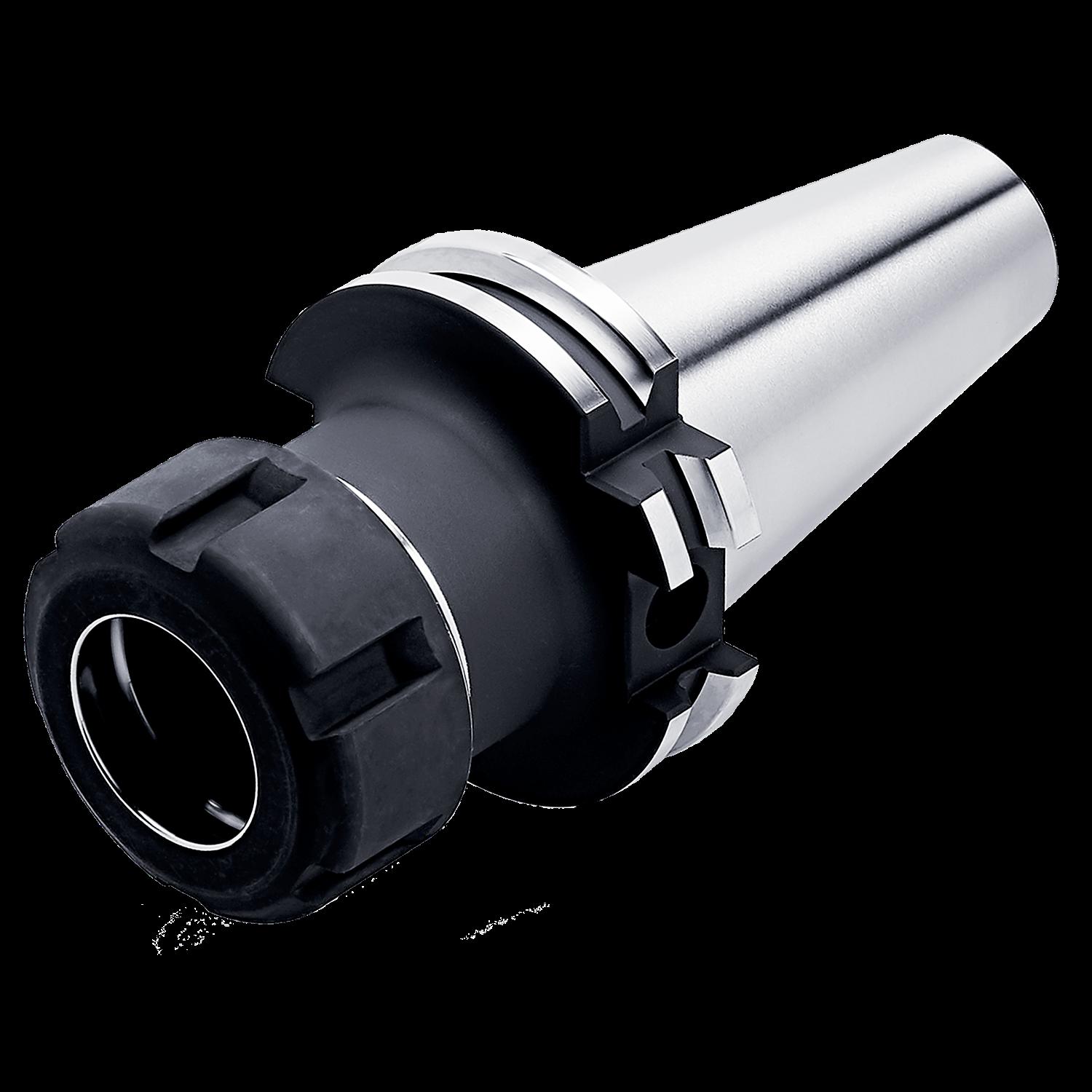

DIN 69871 – Collet chuck ER

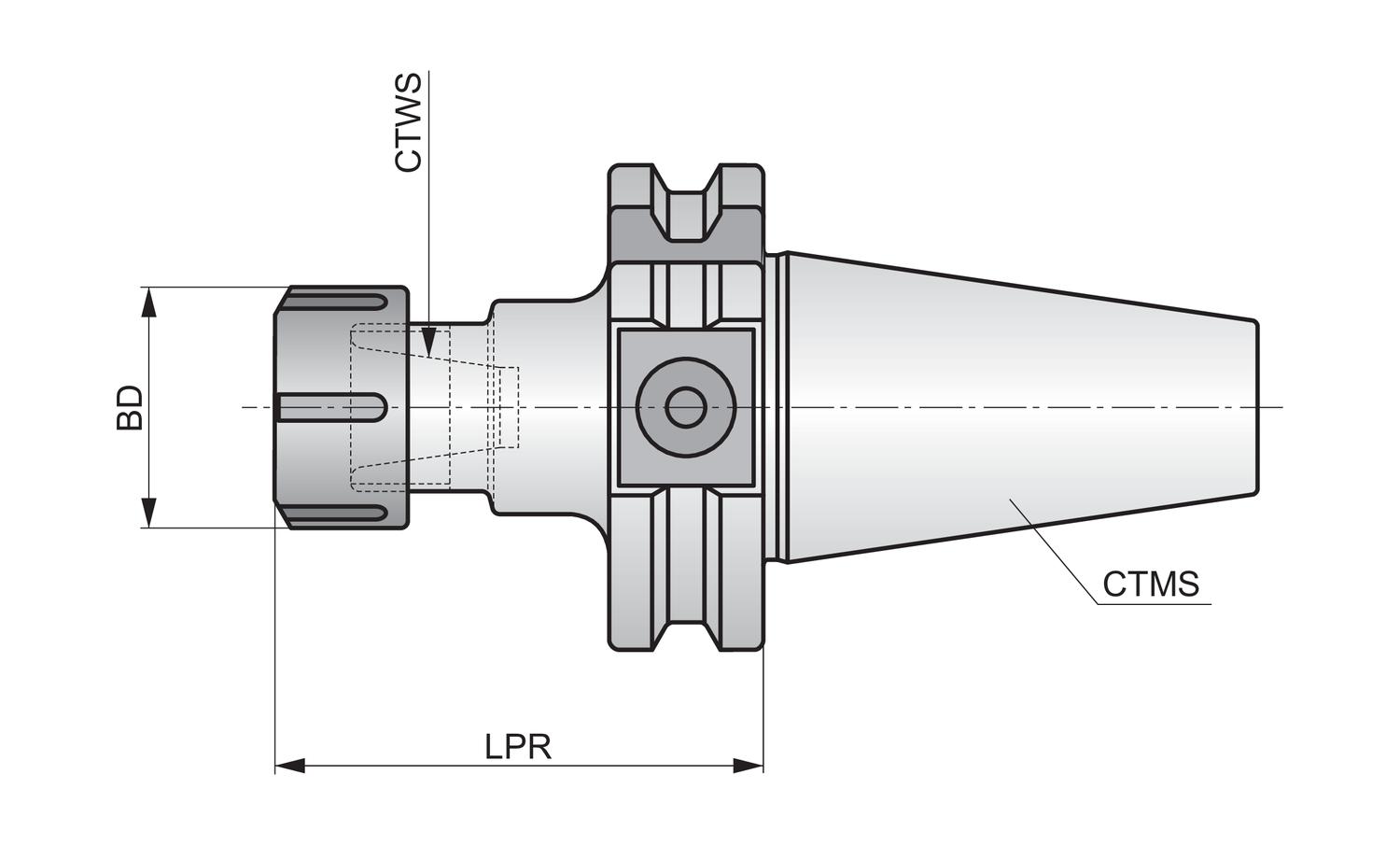

Description: Value Brand Name: Dormer Pramet EAN number: 3603603189386 Product number (SAP): 86027715 Size: 40 ISO: 69871.40ADB-CC.ER40.080 Ordering code ANSI: 69871.40ADB-CC.ER40.080 Net weight – grams: 1484 Gross weight – grams: 1484.6 Body diameter – millimeter (BD): 63 mm Connection bore diameter minimum – millimeter (DCBN): 3 mm Connection bore diameter maximum – millimeter (DCBX): 26 mm Connection size Value (CSIZE): ER 40 Connection text machine side (CTMS): SK 40 Protruding length – millimeter (LPR): 80 mm
