Home » Shop » CUTTING TOOLS (HSS & Carbide) » Holding » N1 - Tooling system » PRAMET 69871.40ADB-CC.ER40.160 Tooling system
$376.16$341.96 Ex. GST

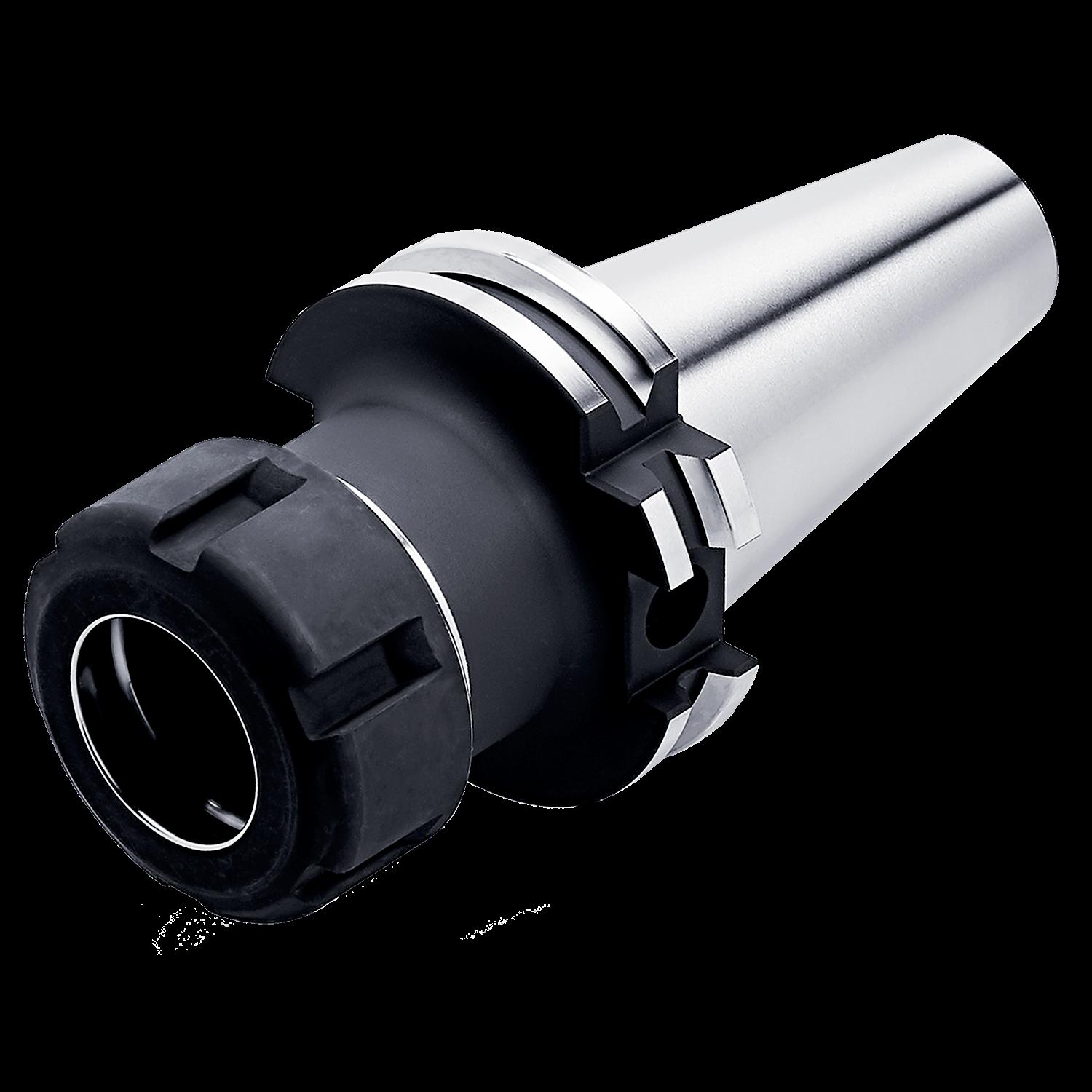

DIN 69871 – Collet chuck ER

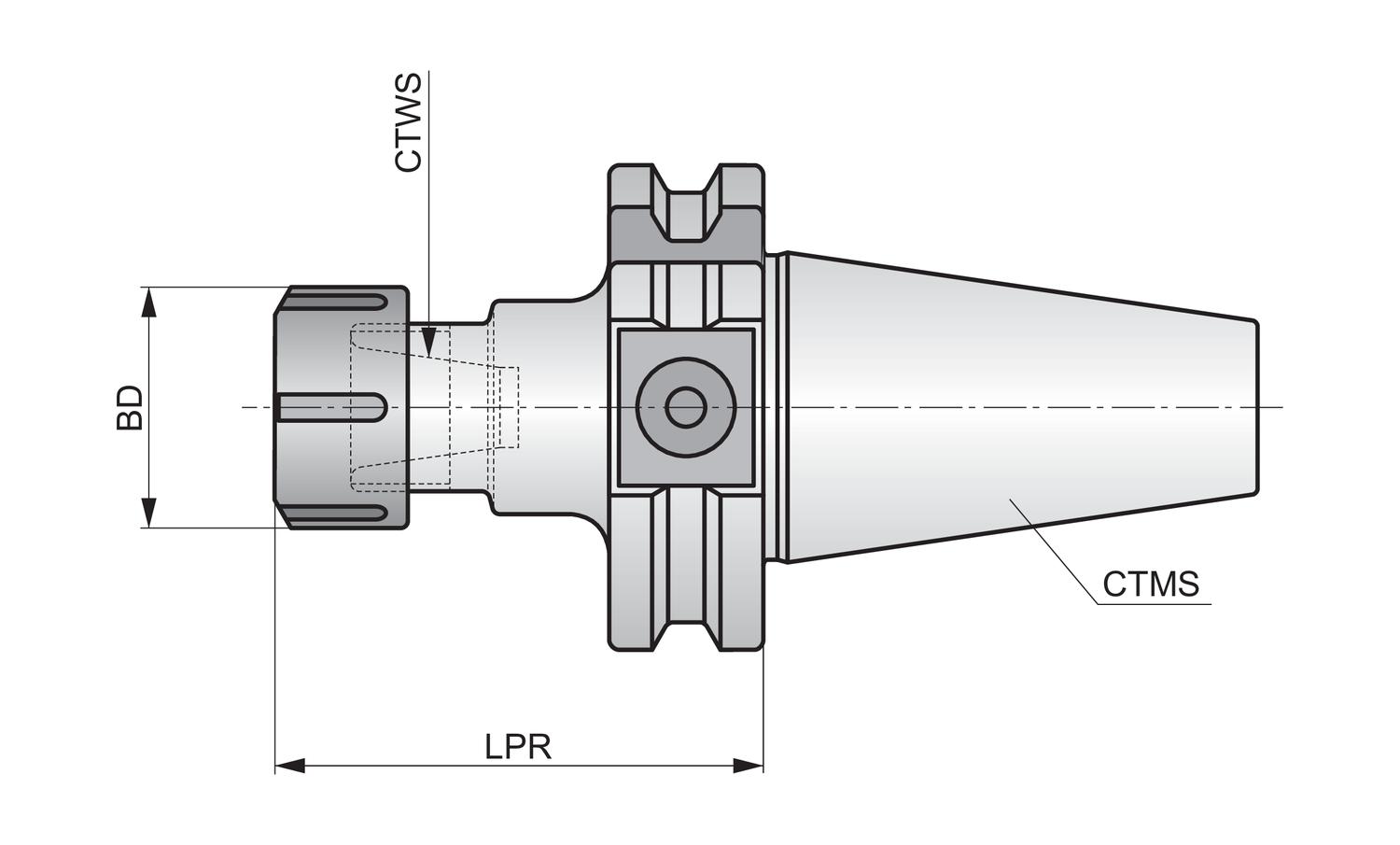

Description: Value Brand Name: Dormer Pramet EAN number: 3603603189409 Product number (SAP): 86027717 Size: 40 ISO: 69871.40ADB-CC.ER40.160 Ordering code ANSI: 69871.40ADB-CC.ER40.160 Net weight – grams: 2568 Gross weight – grams: 2667 Body diameter – millimeter (BD): 63 mm Connection bore diameter minimum – millimeter (DCBN): 3 mm Connection bore diameter maximum – millimeter (DCBX): 26 mm Connection size Value (CSIZE): ER 40 Connection text machine side (CTMS): SK 40 Protruding length – millimeter (LPR): 160 mm
