PRAMET 69871.40ADB-CCM.ER11.100 Tooling system

Product Code: 69871.40ADB-CCM.ER11.100

$144.84$131.67 Ex. GST

Product Code: 69871.40ADB-CCM.ER11.100 SKU 69871.40ADB-CCM.ER11.100 Categories CUTTING TOOLS (HSS & Carbide), Holding

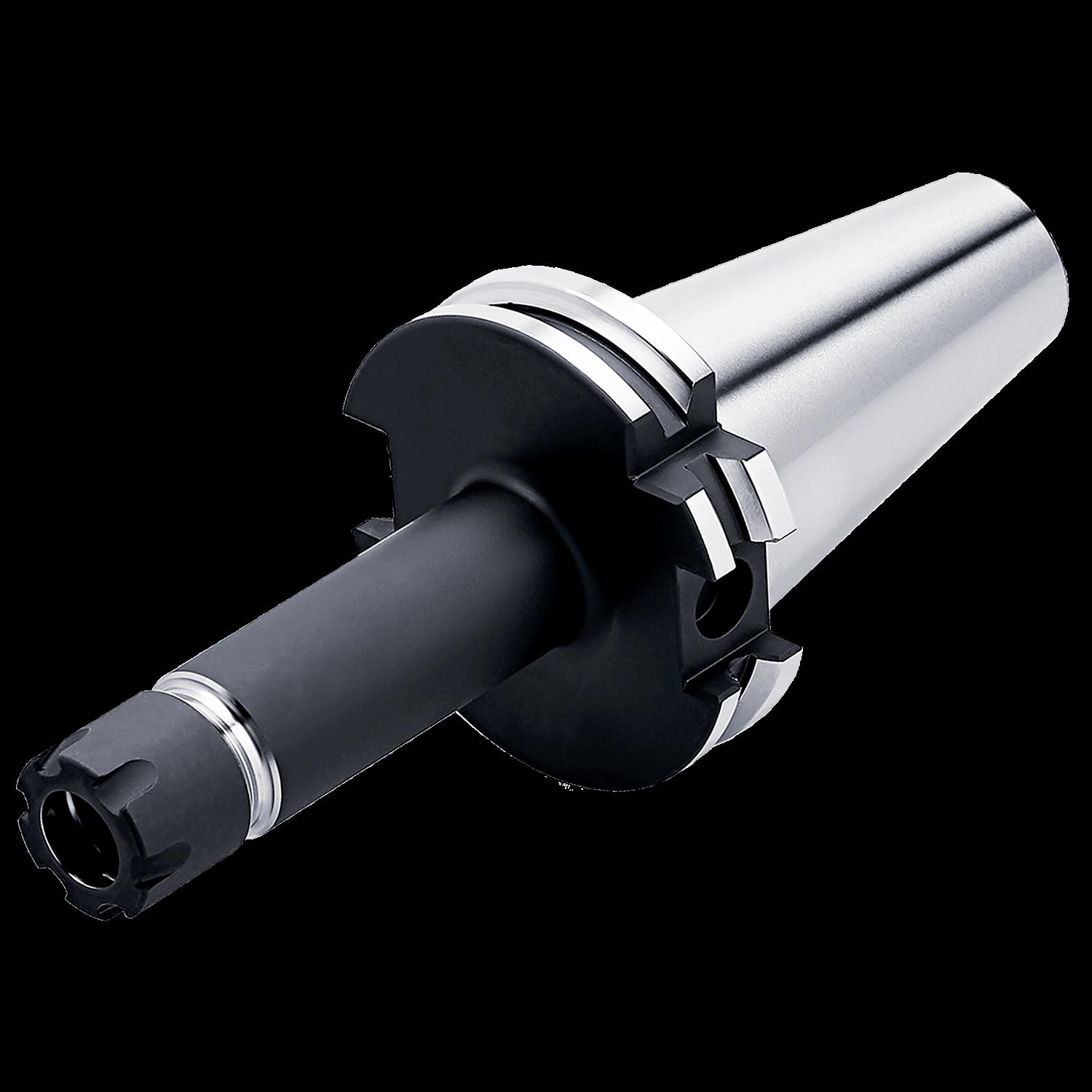

PRAMET 69871.40ADB-CCM.ER11.100 Tooling system

PRAMET 69871.40ADB-CCM.ER11.100 Tooling system - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DIN 69871 Mini Collet Chuck – ER

Additional information

Weight	0.9430 kg
barcode

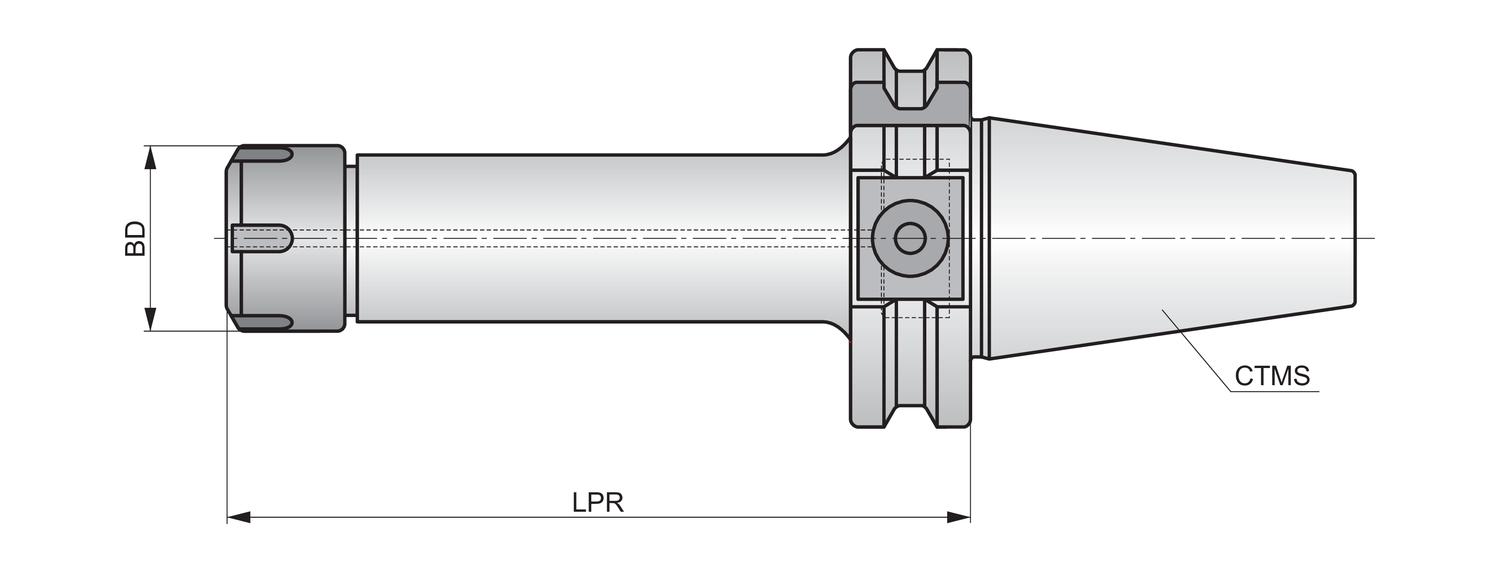

Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603189591 Product number (SAP): 86027736 Size: 40 ISO: 69871.40ADB-CCM.ER11.100 Ordering code ANSI: 69871.40ADB-CCM.ER11.100 Net weight – grams: 942 Gross weight – grams: 942 Body diameter – millimeter (BD): 16 mm Connection bore diameter minimum – millimeter (DCBN): 1 mm Connection bore diameter maximum – millimeter (DCBX): 7 mm Connection size Value (CSIZE): ER 11 Connection text machine side (CTMS): SK 40 Protruding length – millimeter (LPR): 100 mm

Brand

Dormer Pramet
