Home » Shop » CUTTING TOOLS (HSS & Carbide) » Holding » N1 - Tooling system » PRAMET 69871.40ADB-CCM.ER16.055 Tooling system

PRAMET 69871.40ADB-CCM.ER16.055 Tooling system

Product Code: 69871.40ADB-CCM.ER16.055

$121.43$110.39 Ex. GST

Product Code: 69871.40ADB-CCM.ER16.055 SKU 69871.40ADB-CCM.ER16.055 Categories CUTTING TOOLS (HSS & Carbide), Holding

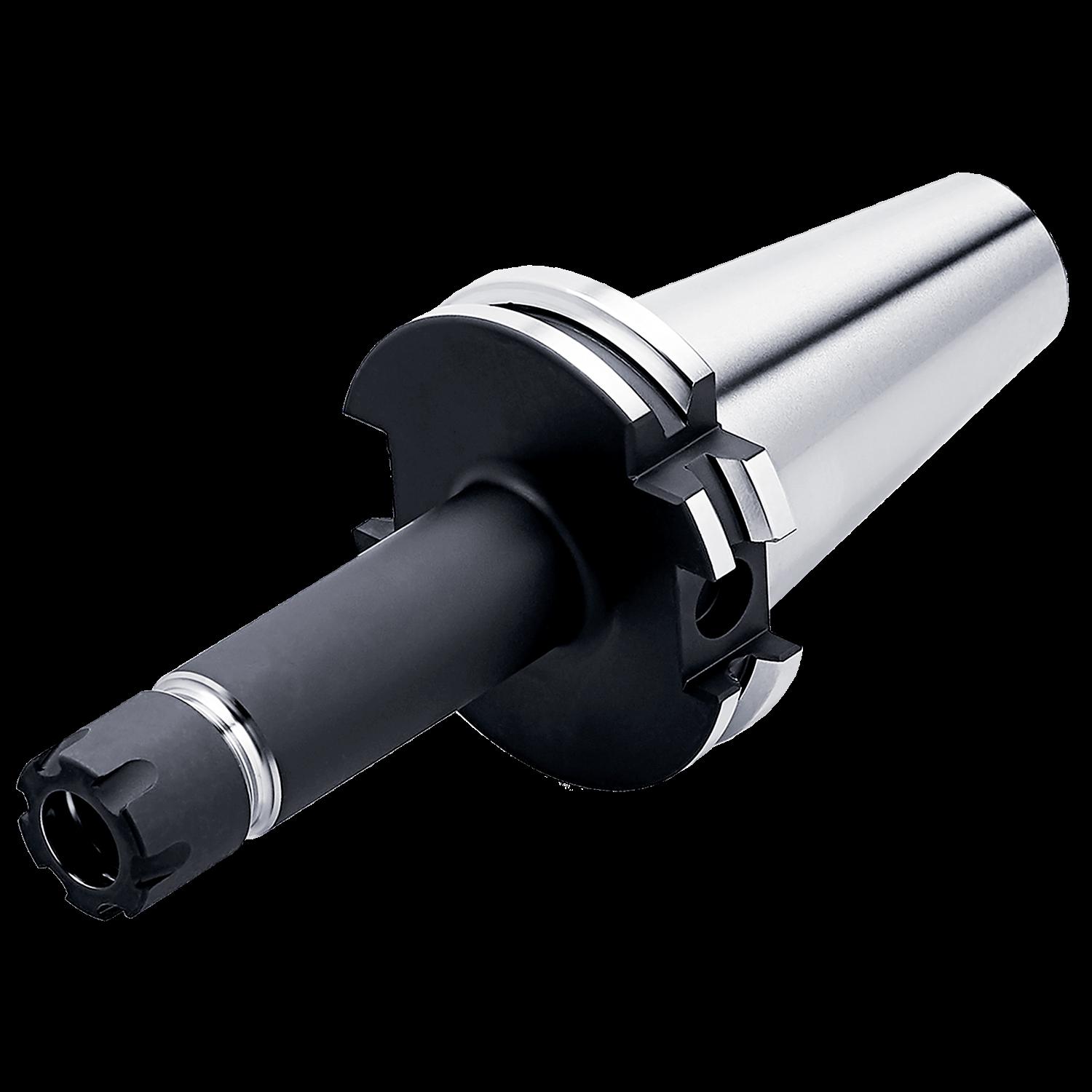

PRAMET 69871.40ADB-CCM.ER16.055 Tooling system

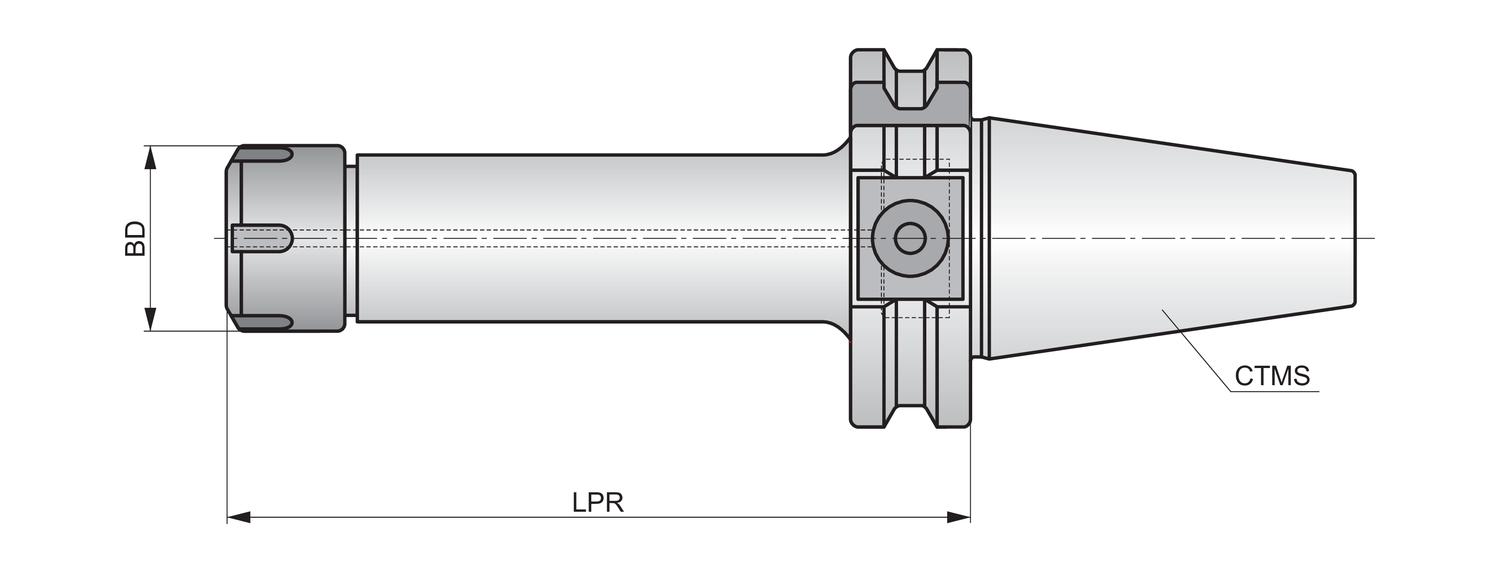

PRAMET 69871.40ADB-CCM.ER16.055 Tooling system - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DIN 69871 Mini Collet Chuck – ER

Additional information

Weight	0.9230 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603189607 Product number (SAP): 86027737 Size: 40 ISO: 69871.40ADB-CCM.ER16.055 Ordering code ANSI: 69871.40ADB-CCM.ER16.055 Net weight – grams: 923 Gross weight – grams: 928.3 Body diameter – millimeter (BD): 22 mm Connection bore diameter minimum – millimeter (DCBN): 1 mm Connection bore diameter maximum – millimeter (DCBX): 10 mm Connection size Value (CSIZE): ER 16 Connection text machine side (CTMS): SK 40 Protruding length – millimeter (LPR): 55 mm

Brand

Dormer Pramet
