PRAMET 69871.40ADB-FMH1.16.035 Tooling system

Product Code: 69871.40ADB-FMH1.16.035

$73.89$67.17 Ex. GST

Product Code: 69871.40ADB-FMH1.16.035 SKU 69871.40ADB-FMH1.16.035 Categories CUTTING TOOLS (HSS & Carbide), Holding

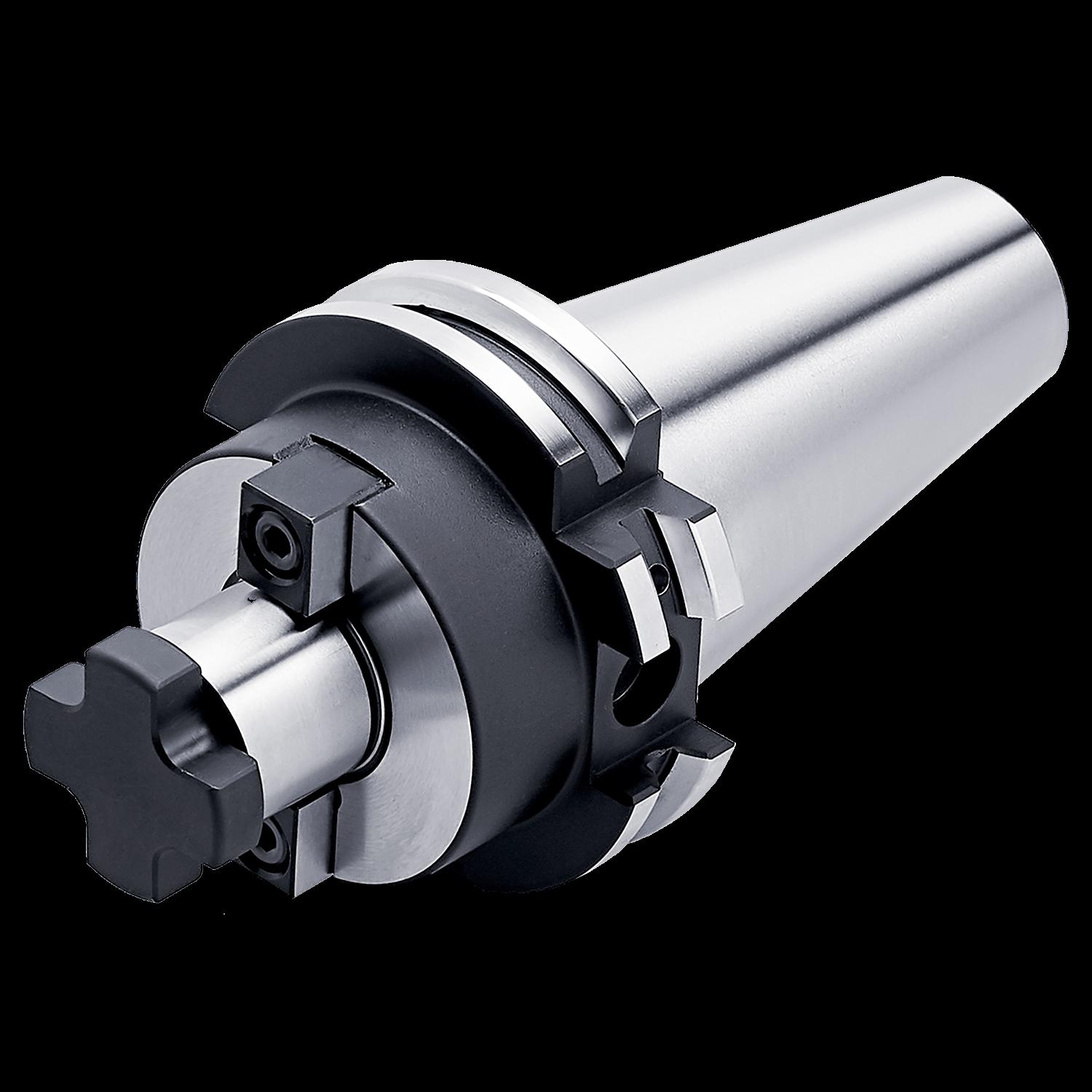

PRAMET 69871.40ADB-FMH1.16.035 Tooling system

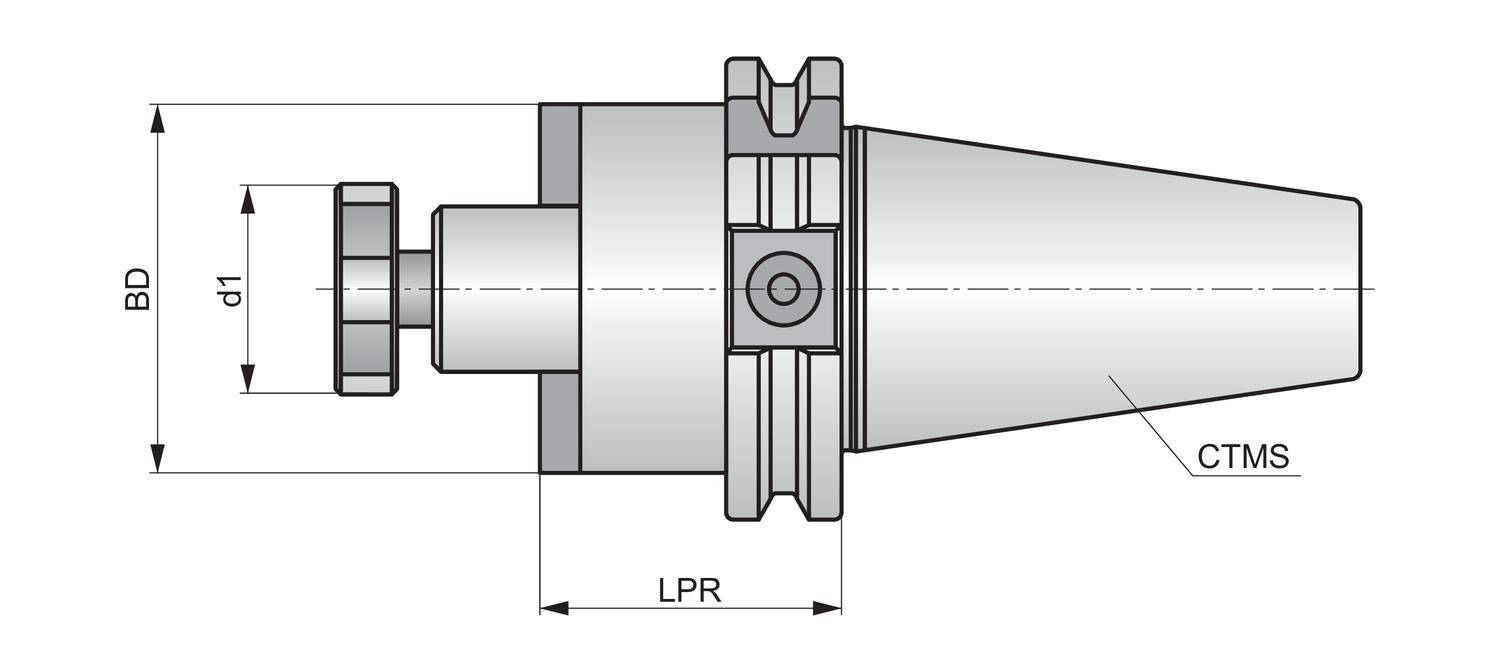

PRAMET 69871.40ADB-FMH1.16.035 Tooling system - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DIN 69871 – Shell mill holder with driving slot (B type)

Additional information

Weight	1.0410 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603191785 Product number (SAP): 86027955 Size: 40 ISO: 69871.40ADB-FMH1.16.035 Ordering code ANSI: 69871.40ADB-FMH1.16.035 Net weight – grams: 1041 Gross weight – grams: 1049 Body diameter – millimeter (BD): 38 mm Connection diameter tolerance workpiece side (TCDCONWS): h6 Connection diameter workpiece side – millimeter (DCON WS): 16 mm Connection text machine side (CTMS): SK 40 Connection text range workpiece side (CTWS): 17 Functional length – millimeter (LF): 35 mm

Brand

Dormer Pramet
